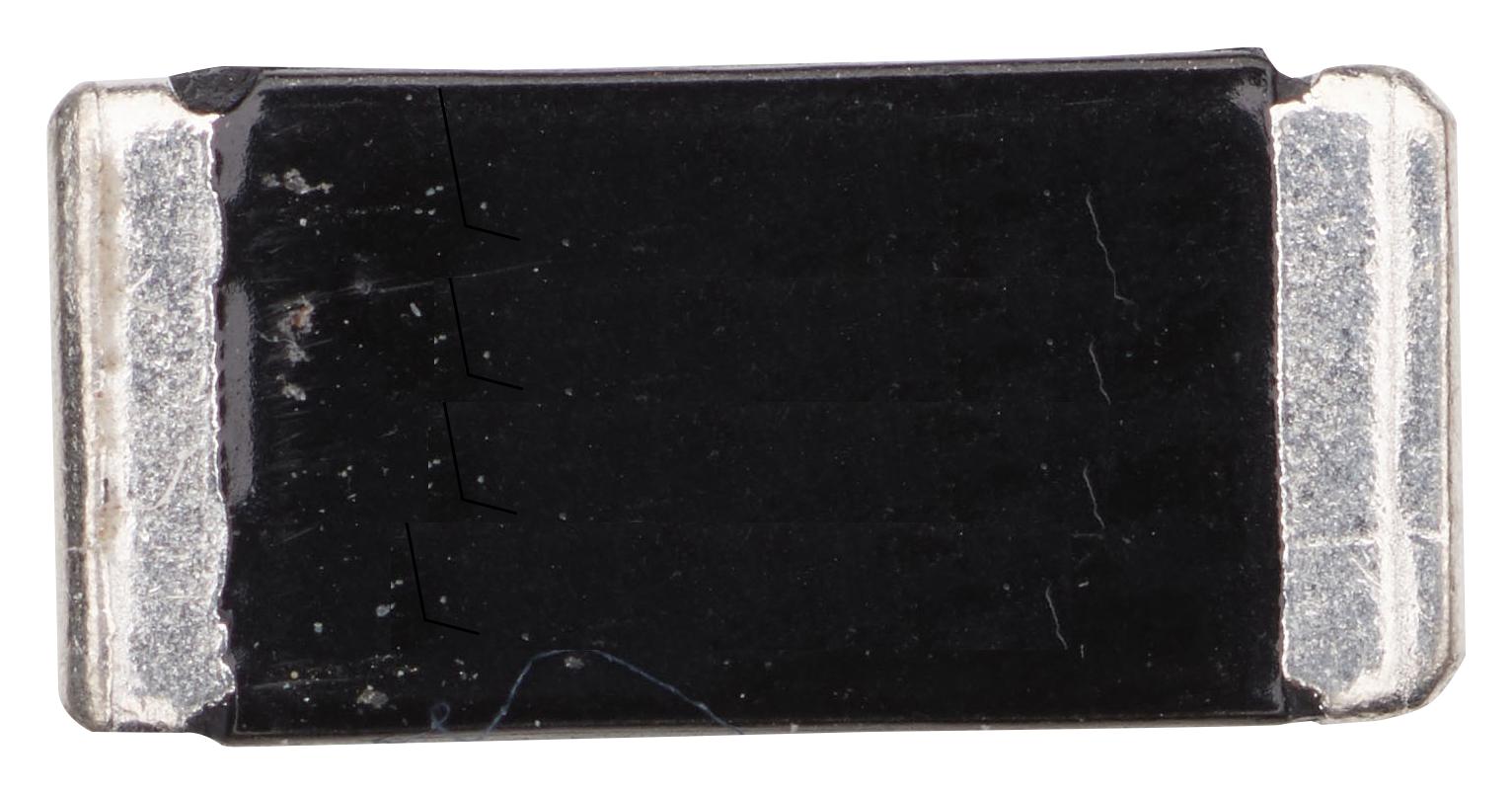

Ohmite PCS2728DR1000ET Low Resistance Chip Resistor
The PCS2728DR1000ET is a high-precision, low-resistance chip resistor designed for accurate current sensing and voltage division applications. It features a resistance range from 10mΩ to 1000mΩ with low TCR of +50ppm and excellent long-term stability. The resistor is suitable for high-temperature environments up to +170°C, with robust construction to withstand overloads, thermal cycling, and humidity. Manufactured with RoHS compliant, halogen-free materials, it ensures reliability in automotive, industrial, and electronics applications. It is compatible with reflow and wave soldering processes, making it ideal for compact circuit designs.
Ohmite PCS2728DR1000ET Low Resistance Chip Resistor Specifications:
- Resistance Range: 10mΩ to 1000mΩ
- Resistance Tolerance: ±1%
- Power Rating: 4W
- Operating Temperature Range: -55°C to +170°C
- Temperature Coefficient of Resistance: +50ppm
- Overload withstand: 3x rated power for short durations
- Signal stability: Excellent long-term stability over 1000 hours at +170°C
- Soldering Compatibility: Reflow at 250°C (peak), wave at 260°C for 10 seconds
- Material: FeCrAl and MnCu alloy for core, nickel overcoat, tin plating
- Dimensional Data: Length varies, typical width 3.51mm, height 7.82mm
- RoHS compliant and halogen free
- Humidity resistance: 85°C/85%RH for 1000 hours
- Vibration and mechanical strength tested according to JIS standards
Buy the Buy Ohmite PCS2728DR1000ET Part Number 2728DR1000ET Online
Purchase the Ohmite PCS2728DR1000ET high-power low resistance chip resistor online today. Designed for accurate current sensing, voltage division, and reliable electrical performance in automotive and industrial electronics. Featuring a resistance range from 10mΩ to 1000mΩ with excellent thermal stability, it can withstand high overloads and harsh environments. Its RoHS compliant, halogen-free construction makes it environmentally friendly. Quickly order now and secure a high-quality, durable resistor for your precision circuits with fast delivery and trusted service.
Order your Ohmite Series PCS2728DR1000ET high-temperature resistor today and ensure reliable performance in demanding electronic applications.
Frequently Asked Questions
Where can I buy Ohmite PCS2728DR1000ET?
You can click on the BUY or RFQ button to purchase PCS2728DR1000ET from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part PCS2728DR1000ET?
You can download the PCS2728DR1000ET datasheet or visit the Ohmite website for support.
Who is the manufacturer of PCS2728DR1000ET?
Ohmite
