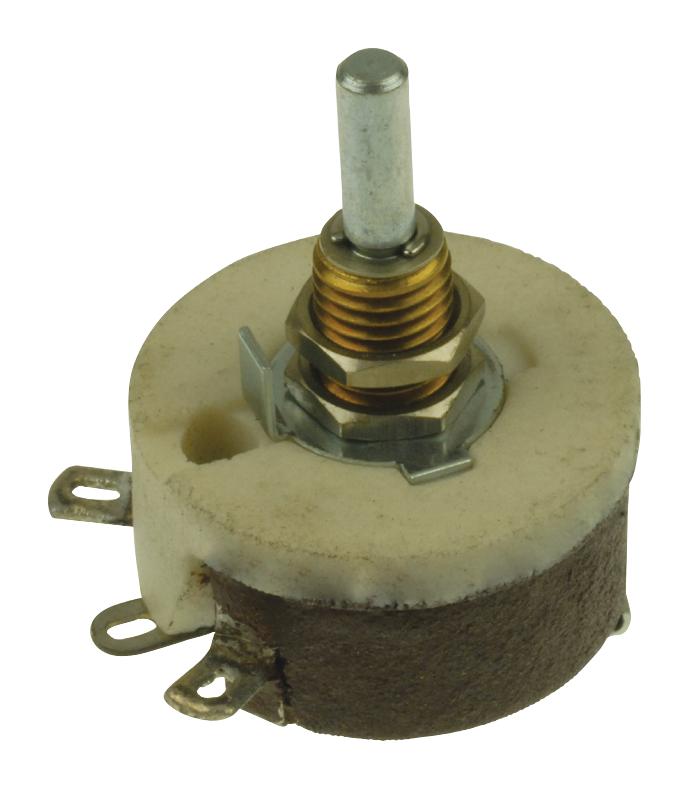

Ohmite RES175E Wirewound Rheostat
The OHMITE RES175E is a wirewound rheostat, a type of variable resistor used to control electrical current in circuits. These devices are commonly employed in applications requiring adjustable resistance, such as motor speed control, volume adjustment in audio equipment, and dimming of lights. The RES175E features a robust design suitable for industrial environments and offers a range of specifications to meet diverse application needs. Refer to catalog #203 for complete details.
Ohmite RES175E Wirewound Rheostat Specifications:
- Ohmic Voltage (RMS): 10.0-5K
- Watts Range: 12.5
- Core: enclosed
- Diameter (D): 1.219/30.96 in./mm
- Dimension (C): 1.047/26.59 in./mm
- Shaft Rotation: E REE
- Shaft Torque (±5°): 1-6 oz. in.
- Temperature: 300°
- Max. Ohmic Voltage: 12.5
- Ohmic Voltage: 1.0-15K
- Shaft: locking
- Mounting: Panels to 0.25" (6.35mm) thick
- Bushing: [1] /4-32
- Hex Nut: [1] /16" thick
- Standard Shaft: 0.25"
- Locking Shaft: 0.531"
- Dimensions for reference only: consult factory for details
- Models H, J, K, L and N: listed under UL File No. E-10946 and CSA File No. 21309
- Tolerance: 10%
- Screws: 3/8-32
- Holes: no. 8 screws (J, G, K, L)
- Mounting Bracket: model L only
- Dimensions M: P 0.875", N 1.188", R 1.5", U 3"
- Mounting Screws: 1/4 - 20
- Series: Rheostats Wirewound Potentiometers
