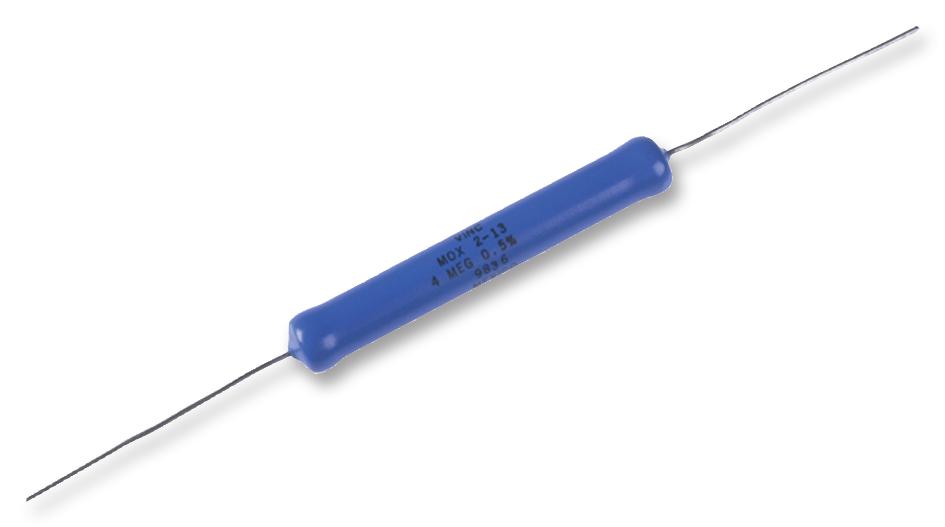

Ohmite MOX5N135005FE High Voltage Precision Resistor
OHMITE's Maxi-Mox resistors are versatile components ideal for industrial applications requiring high power and high voltage switching, industrial control, and high voltage current limiting. These precision thick film resistors offer wide resistance ranges, voltage ratings up to 50KV, and power ratings up to 12.5 watts. They are available with silicone or epoxy coatings and are suitable for HV power supplies, power distribution, medical instrumentation, and avionics. The resistors are designed for reliable performance in demanding environments and offer various tolerance options to meet specific application requirements.
Ohmite MOX5N135005FE High Voltage Precision Resistor Specifications:
- Resistance Range: 1.25K to 1,000,000M
- Power Rating: 12.5W @ 70°C
- Voltage Rating: 50.0KV
- Available Tolerances: 1% to 20%
- Capacitance: 0.30 pf
- Core Material: Alumina
- Resistor Type: Thick Film
- Terminal Composition: 96% Sn, 3.5% Ag, 0.5% Cu
- Operating Temperature: -55°C to +210°C
- Temperature Coefficient of Resistance: < 5PPM/Volt
- Humidity: ±0.25% (MIL-STD-202,Method 103B,Condition B)
- Dielectric Withstanding Voltage: ±0.25% (MIL-STD-202,Method 301,750V)
- Insulation Resistance: >10,000 M (MIL-STD-202,Method 302)
- Dimensions A max: 5.120” / 130.05
- Dimensions B max: 0.310” / 7.87
- Lead Diameter: 0.032” typ.
Buy the MOX-5N-135005FE OHMITE High Voltage Precision Resistor | myMectronic
Purchase the OHMITE MOX-5N-135005FE resistor securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy Ohmite MOX5N135005FE?
You can click on the BUY or RFQ button to purchase MOX5N135005FE from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part MOX5N135005FE?
You can download the MOX5N135005FE datasheet or visit the Ohmite website for support.
Who is the manufacturer of MOX5N135005FE?
Ohmite
