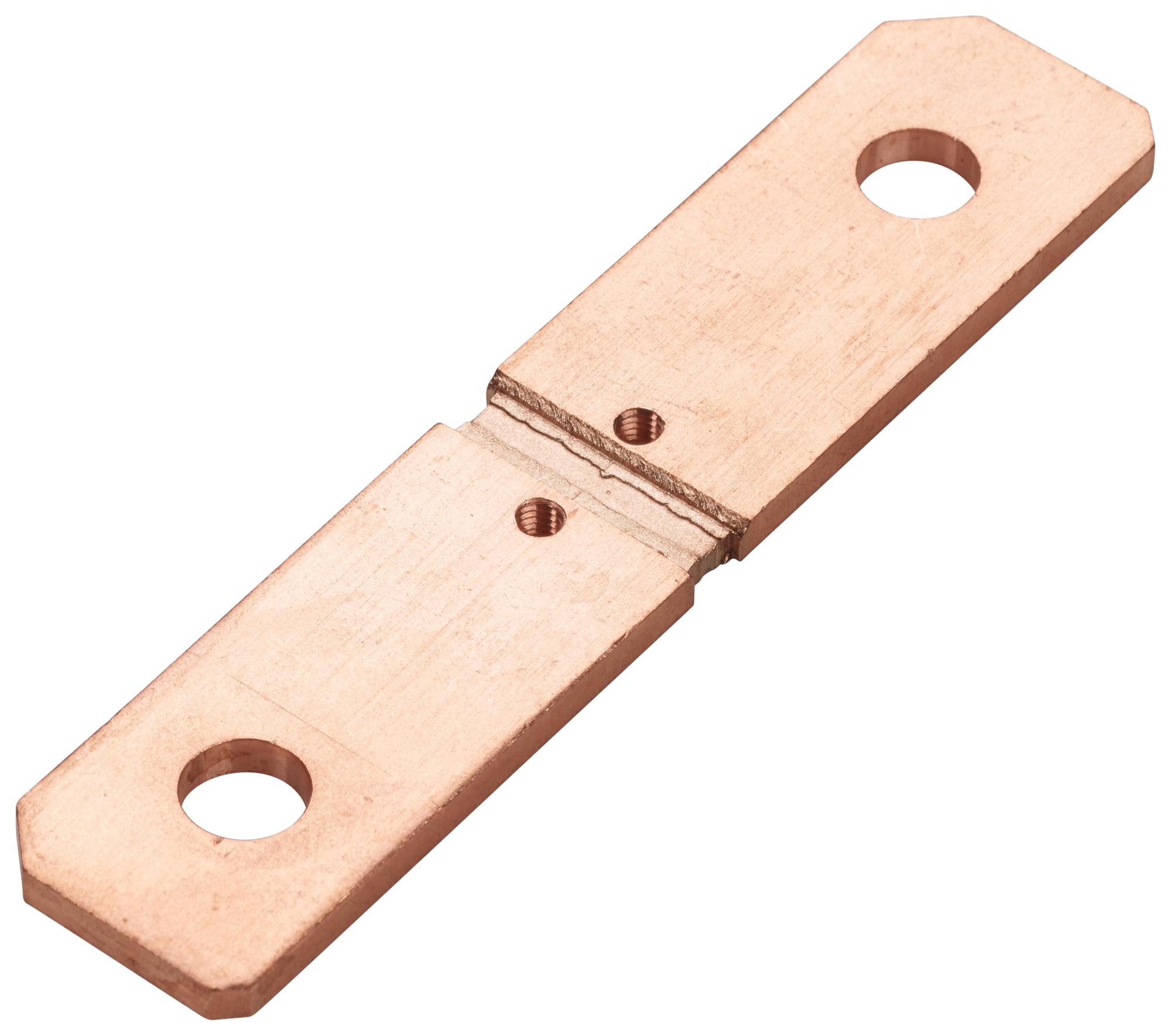

Ohmite SH6918F700AHEP Precision Current Shunt
The Ohmite SHA series precision manganin copper alloy shunt supports up to 1KA rated current, offering excellent long-term stability and high-frequency compatibility. Featuring a flat structure, low inductance below 3nH, and four-terminal Kelvin connection, these shunts are ideal for battery management, electronic power, motor control, and UPS systems. With thermal stability, low thermal EMF, and resistance shift under load, they excel in high current and pulse applications thanks to special alloy materials and heat treatment processes. Power ratings span 25W, 36W, and 50W, with resistances customizable for specific needs, ensuring precise current measurement and durability in demanding environments.
Ohmite SH6918F700AHEP Precision Current Shunt Specifications:
- Power Ratings: 25W, 36W, 50W
- Resistance: 50uΩ, 100uΩ, 125uΩ, 250Ω or customizable
- Rated Current: up to 1000A
- Resistance Tolerance: ±0.5%, ±1%, ±5%
- Resistance temperature coefficient: 175ppm to 400ppm (-60°C to 175°C)
- Inductance: Less than 3nH
- Thermal shock resistance: -55°C to +150°C, 1000 cycles
- Overload capacity: 5 times rated power for 5 seconds
- Storage Temperature: -55°C to +170°C
- Vibration: 10Hz to 2000Hz, 12 hours in X-Y-Z directions
- Weight: 35g, 40g, 80g
- Pin Type: Tin plated interference fit
- Application environments: High frequency, high current measurement
Buy the Buy Ohmite SHA Series Part Number SH6918F700AHEP Online
Purchase the Ohmite SHA series precision current shunt SH6918F700AHEP online today to ensure accurate low resistance measurement in high current, pulse, and frequency applications. Designed with superior stability, low inductance, and excellent thermal characteristics, it supports up to 1KA rated current and offers customizable resistance values. Ideal for power management, motor control, and electronic load systems, this durable and reliable device guarantees precision, consistency, and longevity even under demanding conditions. Order now for fast delivery and advanced performance.
Buy Ohmite SHA Series SH6918F700AHEP now and experience unmatched reliability and performance in high current measurement applications.
Frequently Asked Questions
Where can I buy Ohmite SH6918F700AHEP?
You can click on the BUY or RFQ button to purchase SH6918F700AHEP from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part SH6918F700AHEP?
You can download the SH6918F700AHEP datasheet or visit the Ohmite website for support.
Who is the manufacturer of SH6918F700AHEP?
Ohmite
