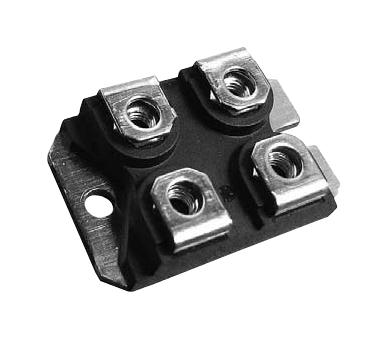

Ohmite TGHGCR0100DE Power Current Sense Resistor
The TGHG Series precision current sense resistors are engineered for high reliability and non-inductive performance. They feature four-terminal Kelvin connections, various resistance values starting at 0.5mΩ, and a power rating of 100W at 70°C. Designed for accurate current monitoring, these resistors have low temperature coefficients (<60ppm/°C) with stable performance over a temperature range of -55°C to +155°C. The series includes resistors with resistance tolerances of 0.5%, 1%, and 5%, suitable for high-power and precision applications in industrial and electronic systems.
Ohmite TGHGCR0100DE Power Current Sense Resistor Specifications:
- Resistance values: 0.5mΩ to 1Ω, tolerance 0.5%, 1%, 5%
- Power Rating: 100W at 70°C case temperature
- Temperature Coefficient: <60ppm/°C for resistance <27mΩ, <500ppm/°C for 27mΩ-49mΩ
- Maximum Working Temp: -55°C to +155°C
- Dielectric Strength: 1000VDC, higher on request
- Material: Nickel-plated copper heat sink, stainless steel terminal nuts
- Dimensions: Length varies with resistance, typical 1.235" to 4.19"; width approximately 0.168"
- Connection: Four-terminal Kelvin configuration
- Maximum Continuous Current: 200 amps depending on ohmic value
- Certifications: IEC 950, CSA22.2 950, EN 60950.2, RoHS compliance
- Maximum base plate temperature must be monitored for safe operation
- Max Torque for Contacts: 1.3Nm, Base Plate: 1.5Nm
Buy the Ohmite Series TGHG Precision Current Sense Resistors: TGHGCR0100DE
Order the Ohmite TGHG series power current sense resistor online today for accurate current measurement in industrial and electronic systems. Featuring a 100W power rating, low resistance values starting at 0.5mΩ, and excellent temperature stability, these resistors are perfect for high-power applications requiring high precision. With four-terminal Kelvin connections, they minimize measurement errors and ensure reliable performance. Get fast delivery and secure checkout to enhance your current monitoring and control systems effortlessly.
Buy Ohmite TGHGCR0100DE high-power precision current sense resistor now and experience unmatched reliability and performance.
Frequently Asked Questions
Where can I buy Ohmite TGHGCR0100DE?
You can click on the BUY or RFQ button to purchase TGHGCR0100DE from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part TGHGCR0100DE?
You can download the TGHGCR0100DE datasheet or visit the Ohmite website for support.
Who is the manufacturer of TGHGCR0100DE?
Ohmite
