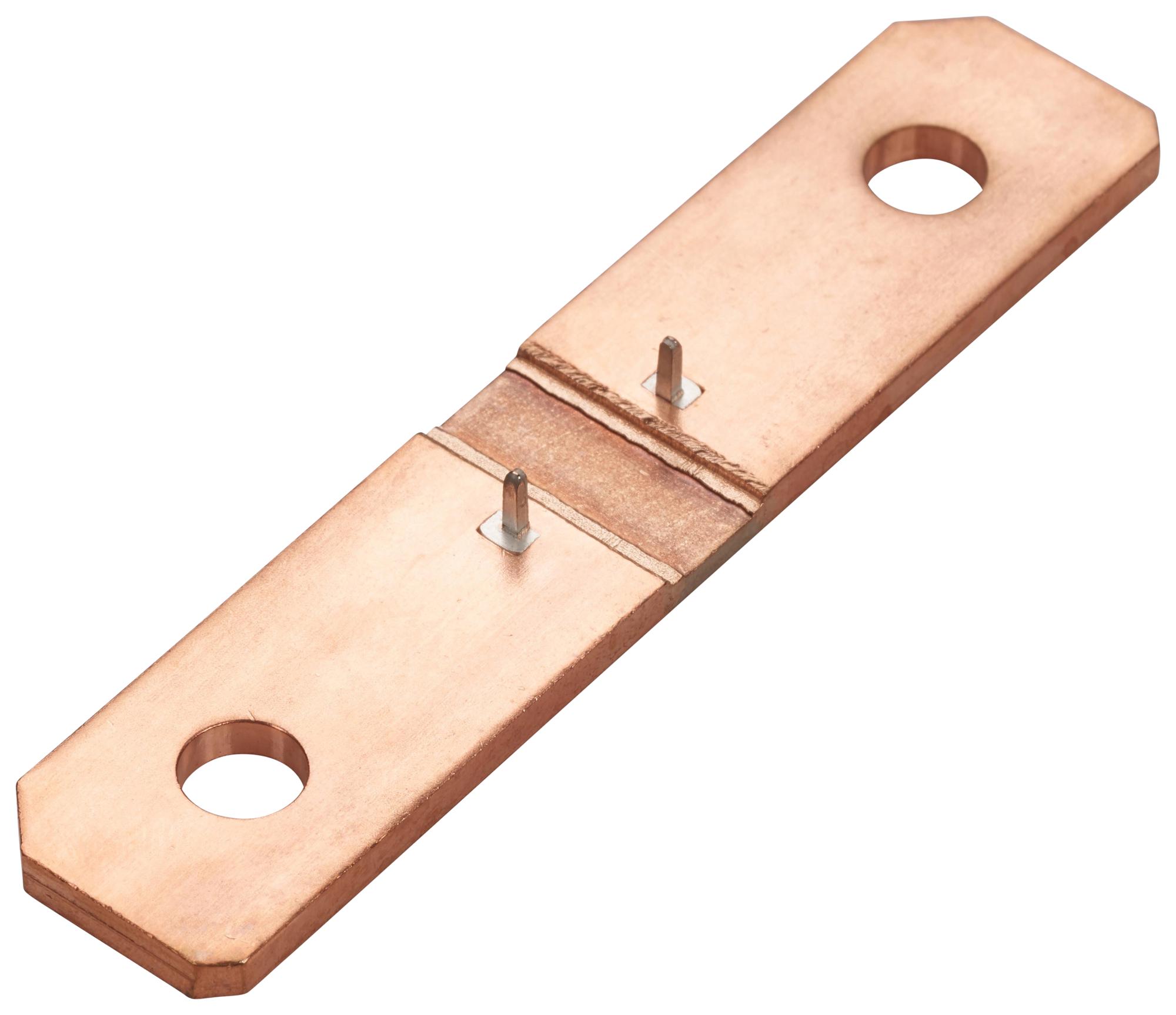

Ohmite SH6918F700APEP High-Current Copper Alloy Shunt
The Ohmite SHA Series precision manganin copper alloy shunt resistor supports high current applications with excellent long-term stability and low inductance. Designed for currents up to 1KA, it features a flat structure with an inductance of less than 3nH, making it suitable for high-frequency use. The series provides thermal stability with low EMF and resistance shift under load, suitable for battery management, power electronics, and motor control. Available in wattages of 25W, 36W, and 50W, it offers robust performance in industrial and electronic systems, ensuring reliability and precision in critical measurements.
Ohmite SH6918F700APEP High-Current Copper Alloy Shunt Specifications:
- Rated power: 25W, 36W, 50W
- Maximum rated current: 1KA
- Inductance: Less than 3nH
- Resistance values: 50μΩ, 100μΩ, 125μΩ, 250μΩ (customizable)
- Thermal potential: Less than 0.5pV/°C
- Tolerance: +0.5%, +1%, +5%
- Operating temperature range: -55°C to +150°C
- Pulse overload: 5 times rated power for 5 seconds
- Weight: 35g, 40g, 80g depending on model
- Material: Manganin copper alloy
- Terminal: Four terminal Kelvin connection
- Certifications: RoHS compliant
- Resistance temperature coefficient: Approx. <10ppm/A
- Mechanical shock resistance: 100G, 6mS, 5 times
- Vibration endurance: 10Hz to 2000Hz, 12 hours
Buy the Ohmite Series SHA: Precision Manganin Copper Alloy Shunt 50W
Purchase the Ohmite Series SHA precision copper alloy shunt resistor online today and take advantage of its high current support up to 1KA, low inductance, and excellent stability. Perfect for high-frequency power management, electronic load systems, and motor control applications, this reliable component offers low thermal EMF and resistance shift. With multiple wattage options, durable construction, and RoHS compliance, it ensures accurate and consistent measurements. Get your high-quality shunt resistor now for robust, long-term performance in demanding industrial environments.
Order your Ohmite Series SHA 50W high-current shunt resistor today and ensure your power and measurement applications are supported by trusted quality.
Frequently Asked Questions
Where can I buy Ohmite SH6918F700APEP?
You can click on the BUY or RFQ button to purchase SH6918F700APEP from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part SH6918F700APEP?
You can download the SH6918F700APEP datasheet or visit the Ohmite website for support.
Who is the manufacturer of SH6918F700APEP?
Ohmite
