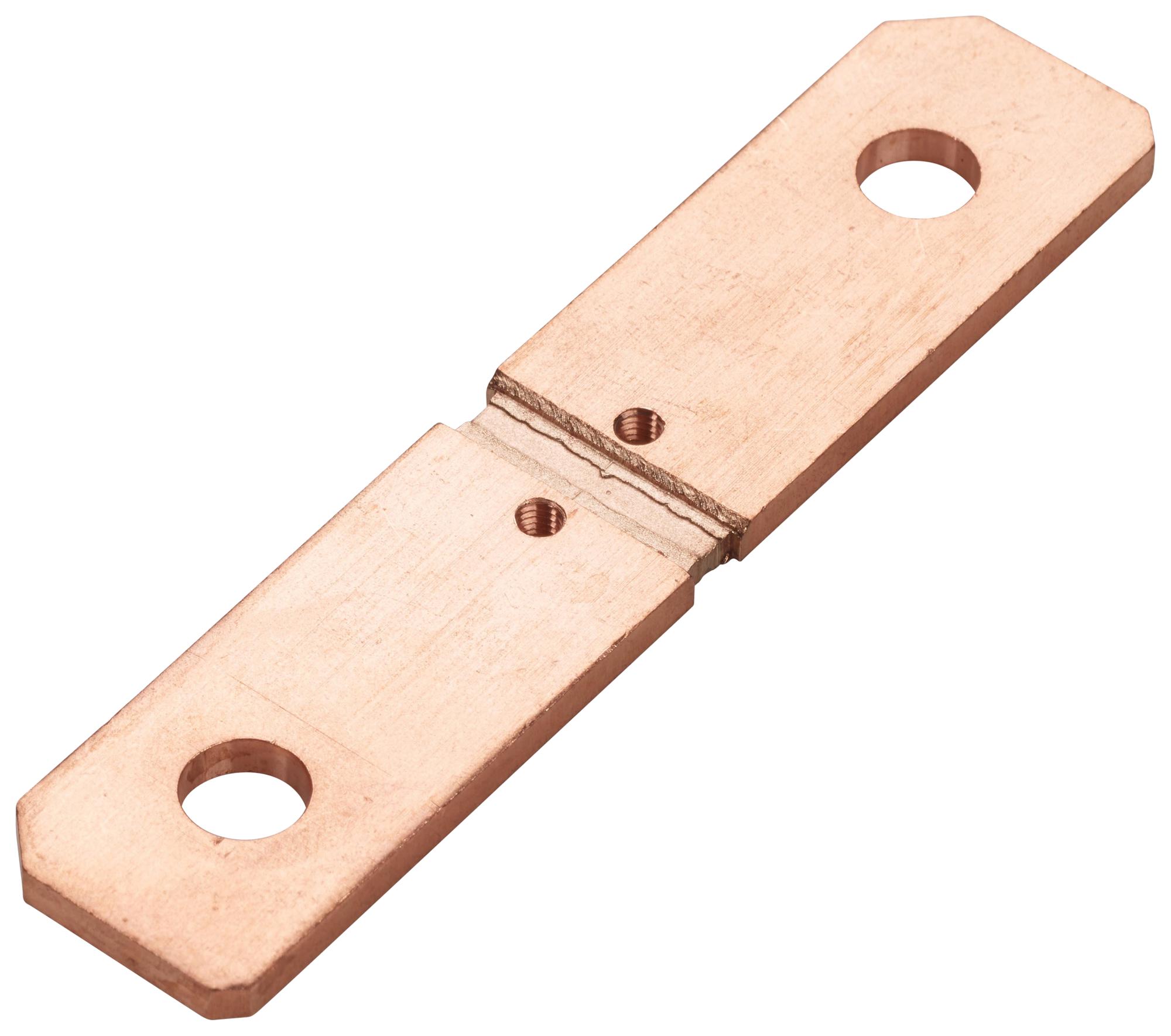

Ohmite SH8518F600BHEP current measuring shunt
The Ohmite SHA series are precision manganin copper alloy shunts supporting up to 1KA rated current. Featuring excellent long-term stability, low temperature coefficient, and minimal inductance (less than 3nH), they are ideal for high-frequency applications like battery management, power electronics, and motor control. With thermal potential below 0.5pV/°C and four-terminal Kelvin connections, these shunts ensure accurate current measurement under various load conditions, making them suitable for demanding electrical systems requiring reliable performance and stability over time.
Ohmite SH8518F600BHEP current measuring shunt Specifications:
- Rated Power: 25W, 36W, 50W
- Resistance Values: 50μΩ, 100μΩ, 125μΩ, 250μΩ
- Tolerance: ±0.5%, ±1%, ±5%
- Temperature Coefficient: 175ppm (-60°C - 175°C), 100ppm (20°C - 60°C)
- Rated Current: 500A, 600A, 1000A
- Maximum Resistance Shift: ±0.5% to ±1.0% under various stress conditions
- Thermal shock resistance: -55°C to 150°C, 1000 cycles
- Overload capacity: 5x rated power for 5 seconds
- Storage Temp: -55°C to +170°C
- Vibration: 10Hz to 2000Hz, 12 hours
- Weight: 35g, 40g, 80g
- Pin Type: Tin plated, interference fit
- Dimensions vary with model, typical sizes 60x18mm, 85x36mm
Buy the Ohmite SH Series – Reliable Manganin Copper Alloy Shunt for Industrial Applications
Purchase the Ohmite Series SH current measuring shunt online today to ensure accurate, reliable current measurement in high-power electronic systems. These precision manganin copper alloy shunts offer excellent long-term stability, low temperature coefficient, and minimal inductance, supporting currents up to 1KA. Ideal for applications such as battery management, power conversion, and motor control, they are engineered to withstand thermal shocks, overloads, and vibration. Buy now to upgrade your electrical setup with durable, high-performance shunting solutions available for fast online delivery.
Order your Ohmite Series SH copper alloy shunt today and equip your electrical systems with a stable, high-current measurement component designed for demanding industrial and electronic applications.
Frequently Asked Questions
Where can I buy Ohmite SH8518F600BHEP?
You can click on the BUY or RFQ button to purchase SH8518F600BHEP from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part SH8518F600BHEP?
You can download the SH8518F600BHEP datasheet or visit the Ohmite website for support.
Who is the manufacturer of SH8518F600BHEP?
Ohmite
