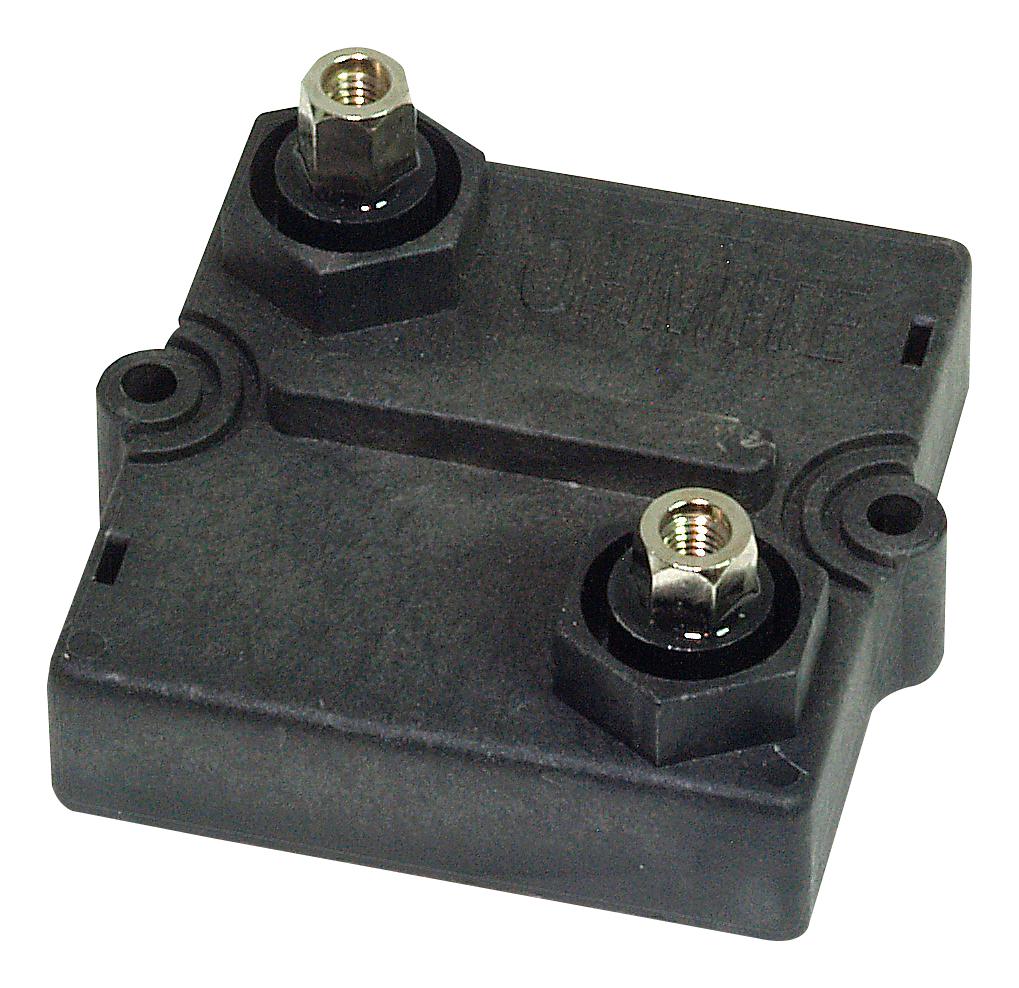

Ohmite TAP2000K75RE High-Current High-Power Resistor
The TAP2000 series offers ultra high power planar resistors with 2000 watts dissipation, suitable for power supplies, motor control, and robotics. Features include non-inductive design, high insulation, RoHS compliance, and materials adhering to UL 94V-0 standards. Designed for effective heatsinking, it maintains stability under pulse and high wattage loads, with a wide operating temperature range from -55°C to +155°C. Equipped with an alumina ceramic base plate with metallized film for enhanced heat transfer, it is ideal for demanding industrial applications requiring reliable, high-performance resistors.
Ohmite TAP2000K75RE High-Current High-Power Resistor Specifications:
- Power rating: 2,000 W at 125°C bottom case temperature
- Resistance value: 0.15 < 0.990 (HC-version); > 0.990 < 6 KQ (higher on request)
- Resistance tolerance: +5% to +10%
- Temperature coefficient: 150 ppm/°C
- Max working voltage: 5,000 V DC / 3,500 V AC RMS (50 Hz)
- Max current: 120A
- Electric strength voltage: 7 kV rms / 50 Hz / 500 VA, test time 1 min., up to 12 kV rms on request
- Partial discharge: 4 kV rms <10 pC, up to 7 kV rms <10 pC on request
- Creeping distance: >42mm, standard
- Air distance: >14mm, standard
- Inductance: 80 nH at 10 kHz
- Capacitance: 120 pF at 10 kHz, parallel 40 pF
- Operating temperature: -55°C to +155°C
- Encapsulation: Resin-filled epoxy casing with high insulation resistance (CTI 600)
- Dimensions: Thread max 7mm, mounting holes, surface roughness <6.4 um
Buy the Ohmite Series TAP2000 Ultra High Power Resistor: TAP2000K75RE
Purchase the Ohmite TAP2000K75RE high-power resistor online today and benefit from a robust, reliable component capable of dissipating 2000W heat efficiently. Designed for power supplies, motor controls, and industrial automation, this resistor features an alumina ceramic base for superior heat transfer, high insulation resistance, and RoHS compliance. Its stable performance under pulse and overload conditions ensures dependability in demanding environments. Order now to ensure your power systems operate safely and efficiently, backed by fast delivery and trusted quality.
Get Ohmite TAP2000K75RE today—built for precision, high wattage, and long-lasting durability in power control applications.
Frequently Asked Questions
Where can I buy Ohmite TAP2000K75RE?
You can click on the BUY or RFQ button to purchase TAP2000K75RE from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part TAP2000K75RE?
You can download the TAP2000K75RE datasheet or visit the Ohmite website for support.
Who is the manufacturer of TAP2000K75RE?
Ohmite
