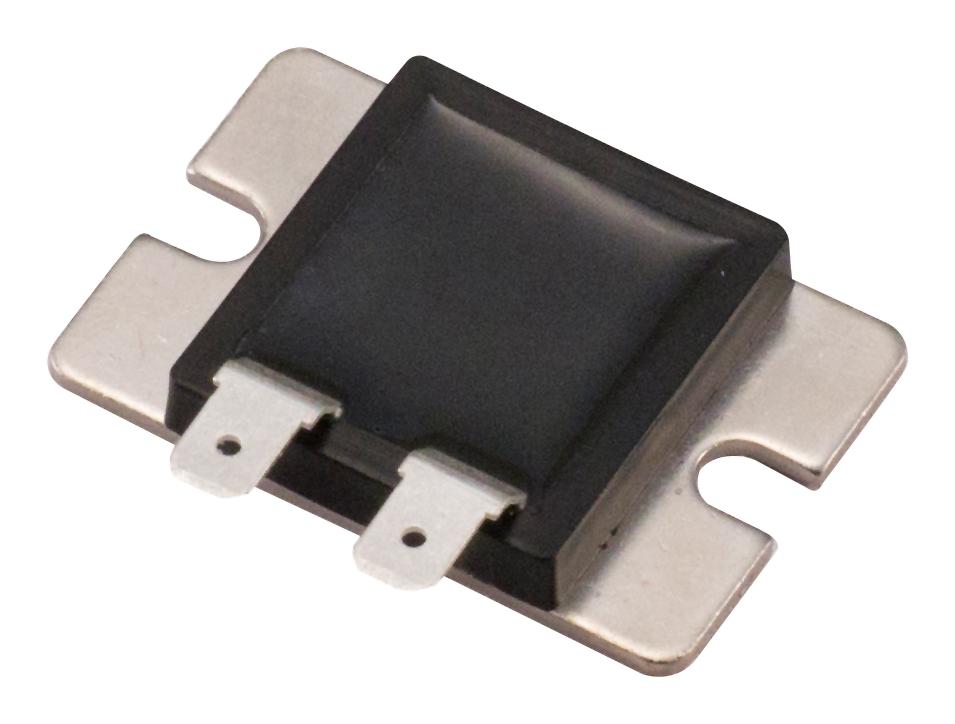

Ohmite TGHMV10K0JE High Power Resistor
The TGHM Series 300 Watt SOT-227 quick-connect high-power resistor offers up to 300 watts of power dissipation with proper heatsinking at 25°C. It features #187 quick connect tab terminals for easy connection, a low-profile, vibration-proof design, and withstands voltages up to 2000 VAC. Suitable for applications like harmonic filters, surge protection, and high-frequency electronics, it includes resistance values from 0.19 to 1 MΩ with a tolerance of ±5%, operating temperature from -55°C to +175°C, and features UL94V-0 flammability rating. Constructed with a nickel-plated copper flange and epoxy resin case.
Ohmite TGHMV10K0JE High Power Resistor Specifications:
- Power Dissipation: 300 Watts at flange temperature -55°C to +25°C
- Resistance Range: 0.19 to 1 MΩ (E24+ modified), resistance values include 2.0 and 5.0
- Tolerance: ±5% (J)
- Maximum Voltage: 1000 V, withstands 2000 VAC for 60 seconds between terminals and flange
- Operating Temperature: -55°C to +175°C
- Thermal Resistance: 0.23 °C/W from resistor to flange
- Leak Current: below 0.5mA
- Load Life Reliability: ±1.0% over 1000 hours at continuous power
- Humidity Resistance: ±1.0% at 60°C, 90-95% RH for 1000 hours
- Vibration Resistance: IEC 60068-2-6, displacement 0.75mm or acceleration 100 m/sec²
- Insulation Resistance: Over 1000 MΩ between terminals and flange
- Flammability: UL94V-0
- Construction: Nickel-plated copper flange, epoxy resin case, alumina ceramic substrate
- Weight: 24 grams
- Mounting Torque: 1.6 Nm maximum, recommended 1.0 Nm
Buy the Buy High-Power Resistors TGHM Series Part Number TGHMV10K0JE Online
Purchase the TGHM Series high-power resistor online today to benefit from its robust design, high wattage capacity, vibration proof features, and excellent voltage withstand capabilities. Ideal for power electronics, surge protection, and high-frequency applications, this resistor provides reliable performance under demanding conditions. With quick-connect tabs for easy installation, resistance values from 0.19 to 1 MΩ, and a thermal resistance of 0.23 °C/W, it ensures durability and consistent operation in various electronic systems. Shop now for fast delivery and competitive prices.
Buy HC High-Power Resistors TGHMV10K0JE now and experience unmatched reliability and power handling in demanding electronic applications.
Frequently Asked Questions
Where can I buy Ohmite TGHMV10K0JE?
You can click on the BUY or RFQ button to purchase TGHMV10K0JE from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part TGHMV10K0JE?
You can download the TGHMV10K0JE datasheet or visit the Ohmite website for support.
Who is the manufacturer of TGHMV10K0JE?
Ohmite
