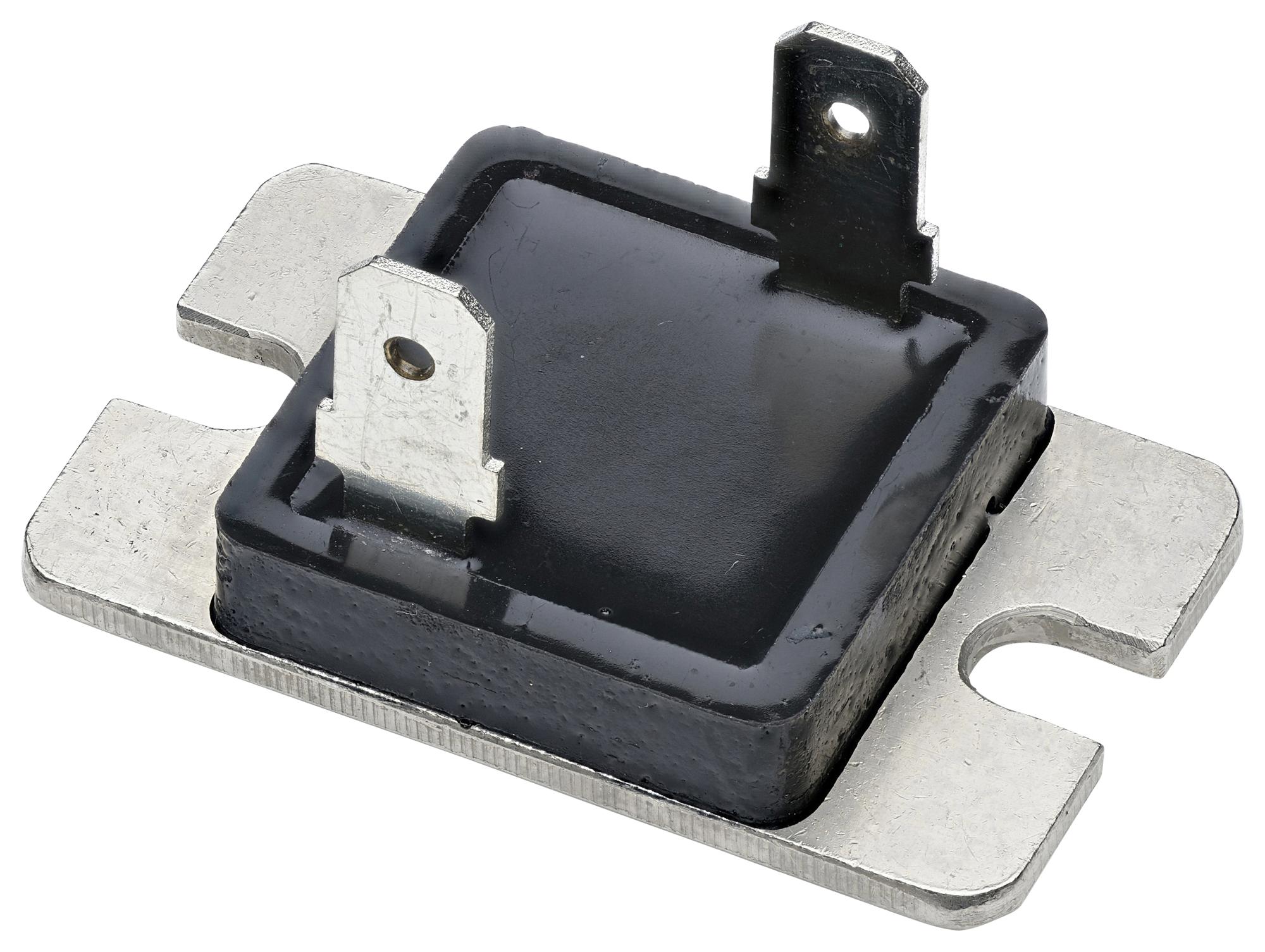

Ohmite TGHDVR100JE High Power Resistor
The TGHD series high power resistors are chassis-mount, non-inductive, 100W resistors suitable for applications like harmonic filters, surge protection, and power supplies. Designed with either quick connect tabs or fly wire leads, they feature air or water cooling options for efficient heat dissipation, vibration resistance, and high insulation withstand voltage. Their resistance ranges from 0.10 to 51kΩ, with a TCR of 100 ppm/K, and operate reliably in temperatures from -55°C to +155°C. Certified UL94V-0 compliant, these resistors offer robust performance in demanding electrical environments.
Ohmite TGHDVR100JE High Power Resistor Specifications:
- Rated Power: 100W at flange temperature -55 to +100°C for wire leads or -55 to +25°C for quick connect
- Resistance Range: 0.10 to 51kΩ, lowest 0.1 ohm available
- Resistance Tolerance: 5% (J)
- Temperature Coefficient of Resistance: 100 ppm/K
- Maximum Operating Voltage: 1000V
- Withstanding Voltage: 5000 VAC for 60 seconds with leak current below 0.5mA
- Flange Temperature Range: -55°C to +155°C
- Thermal Resistance: 0.5°C/W (wire leads), 1.1°C/W (quick connect)
- Mounting Torque: Up to 1.6Nm (recommended 1.0Nm)
- Insulation Resistance: Over 1000MΩ between terminals and flange
- Construction: Thick film substrate, copper, alumina ceramics, epoxy coated terminals
- Certification: UL94V-0 flammability rating
- Weight: 14g
- Vibration Resistance: IEC60068-2-6, displacement 0.75mm or acceleration 100m/sec², 10Hz-54Hz
- Operational Temp: -55°C to +155°C
Buy the Buy Ohmite TGHD Series High Power Resistor Part Number TGHDVR100JE Online
Order the Ohmite TGHDVR100JE high power resistor online today to benefit from reliable, high-capacity performance suitable for power supplies, harmonic filters, and surge protection in industrial and electronic systems. Designed with durable construction, UL94V-0 compliance, and a resistance range up to 51kΩ, this resistor ensures efficient heat dissipation, vibration resistance, and stable operation in extreme temperatures. Secure your supply chain and improve your electronic design by purchasing this quality resistor directly from authorized sources online.
Buy Ohmite TGHDVR100JE high power resistor now and experience unmatched reliability and performance for demanding power applications.
Frequently Asked Questions
Where can I buy Ohmite TGHDVR100JE?
You can click on the BUY or RFQ button to purchase TGHDVR100JE from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part TGHDVR100JE?
You can download the TGHDVR100JE datasheet or visit the Ohmite website for support.
Who is the manufacturer of TGHDVR100JE?
Ohmite
