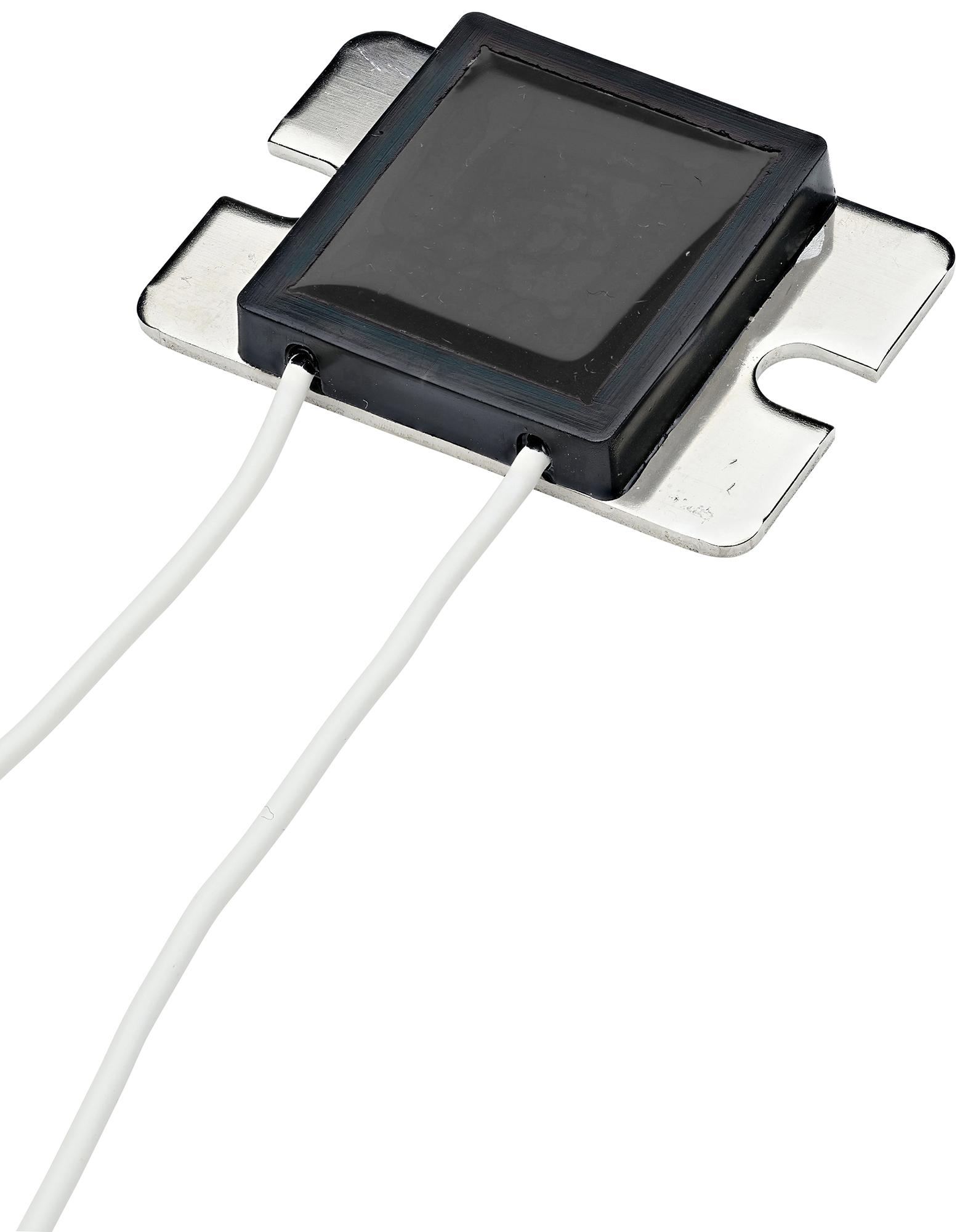

Ohmite TGHDXR100JE High Power Resistor
The TGHDXR100JE is a high-power, chassis-mount resistor suitable for industrial applications such as harmonic filtering, snubber circuits, and surge protection. Engineered for durability, it features a non-inductive design, with a rated power of 100W, and operates at temperatures from -55°C to +155°C. Its construction includes thick-film, copper, and ceramic materials, offering excellent insulation and heat dissipation. Suitable for water or air cooling systems, it provides reliable performance under demanding conditions, with compliance to UL94V-0 standards and resistance ranges from 0.10 to 51kΩ.
Ohmite TGHDXR100JE High Power Resistor Specifications:
- Rated Power: 100W at flange temperature -55 to +100°C (wire leads) or -55 to +25°C (quick connect)
- Resistance Range: 0.10 to 51kΩ
- Tolerance: 5% (J)
- Temperature Rating: -55°C to +155°C
- Max. Applied Voltage: E = V × PR or 1000V
- Withstanding Voltage: 5000 VAC for 60 seconds, leak current below 0.5mA
- Thermal Resistance: 0.5°C/W (wire leads) or 1.1°C/W (quick connect)
- Construction: Thick film, copper, alumina ceramics, epoxy on terminals
- Weight: 14g
- Insulation Resistance: Over 1000MQ between terminals and flange
- Mounting Torque: 1.0–1.6Nm
- Standards: UL94V-0 flammability, RoHS compliant
- Features: Quick connect tabs or wire leads, water or air cooling capable
- Certifications: UL Listed, RoHS compliant
Buy the Ohmite TGHDXR100JE – Reliable Power Resistor for Industrial Applications
Purchase the Ohmite TGHDXR100JE high power resistor online today to ensure reliable performance in industrial applications. Designed for harmonic filters, snubber circuits, and surge protection, this resilient resistor offers a rated power of 100W, operates over a wide temperature range, and features a durable construction with thick-film, copper, and ceramic materials. Its robust design includes quick connect tabs or wire leads, making installation straightforward. With UL and RoHS compliance, this resistor guarantees safety, efficiency, and long-term durability for your demanding projects.
Get Ohmite TGHDXR100JE today—built for precision and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy Ohmite TGHDXR100JE?
You can click on the BUY or RFQ button to purchase TGHDXR100JE from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part TGHDXR100JE?
You can download the TGHDXR100JE datasheet or visit the Ohmite website for support.
Who is the manufacturer of TGHDXR100JE?
Ohmite
