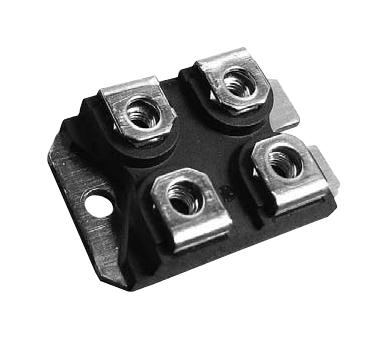

Ohmite TGHGCR0020DE current sense resistor
The TGHG Series precision current sense resistors offer high reliability and non-inductive performance, ideal for current monitoring and control applications. Crafted with heat sink nickel-plated copper, these resistors provide accurate, stable measurements with resistance values starting at 0.5mΩ. They feature a four-terminal Kelvin connection for accurate readings, a power rating of 100W at 70°C, and a temperature coefficient under 60ppm/°C. These robust resistors are suitable for high-current applications up to 200 amps, ensuring dependable operation in demanding environments.
Ohmite TGHGCR0020DE current sense resistor Specifications:
- Resistance Values: starting at 0.5mΩ, tolerances 0.5%, 1%, 5%
- Power Rating: 100W at 70°C case temperature
- Temperature Coefficient: <60ppm/°C
- Maximum Continuous Current: 200 amps
- Terminal Type: Four-terminal Kelvin connection
- Base Plate Material: Nickel-plated copper with heat sink
- Dielectric Strength: 1000VDC, higher on request
- Operating Temperature Range: -55°C to +155°C
- Maximum Base Plate Temperature: must be monitored
- Torque for Contacts: 1.3 Nm, for Base Plate: 1.5 Nm
- Certifications: IEC 950, CSA22.2 950, EN 60950.2
Buy the Ohmite Series TGHG Precision Current Sense Resistors: TGHGCR0020DE
Purchase the Ohmite TGHGCR0020DE current sense resistor online today and ensure precise, reliable high-current monitoring for your industrial and electronics applications. Designed with a four-terminal Kelvin connection for accuracy, this resistor handles up to 200 amps with a power rating of 100W at 70°C, and offers excellent thermal stability with a low temperature coefficient under 60ppm/°C. Ideal for demanding environments requiring high precision and durability for current sensing and control projects.
Buy Ohmite TGHGCR0020DE now and experience unmatched reliability and high-current measurement accuracy with robust heat sinking.
Frequently Asked Questions
Where can I buy Ohmite TGHGCR0020DE?
You can click on the BUY or RFQ button to purchase TGHGCR0020DE from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part TGHGCR0020DE?
You can download the TGHGCR0020DE datasheet or visit the Ohmite website for support.
Who is the manufacturer of TGHGCR0020DE?
Ohmite
