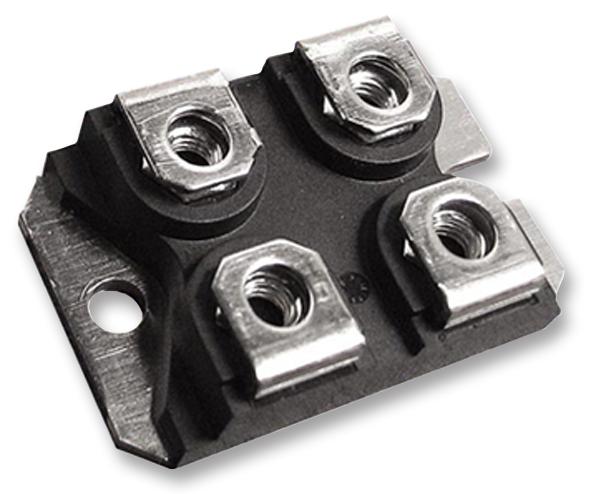

Ohmite TGHGCR0150FE Precision Current Sense Resistors
The TGHG Series are precision, high-power current sense resistors designed for reliable, non-inductive performance in current monitoring and control applications. Featuring four-terminal Kelvin connections, resistances starting at 0.5mΩ, and a power rating of up to 100W at 70°C, these resistors are ideal for demanding industrial environments. Their robust construction includes nickel-plated copper heat sinks, UL and IEC certifications, and temperature coefficients below 60ppm/°C. Suitable for high-current measurement with exceptional stability and accuracy across a wide temperature range.
Ohmite TGHGCR0150FE Precision Current Sense Resistors Specifications:
- Resistance values: 0.5mΩ to 1Ω with tolerances of 0.5%, 1%, and 5%
- Power Rating: 100W at 70°C case temperature
- Temperature Coefficient: <60ppm/°C (up to 49mΩ), <500ppm/°C (27mΩ-49mΩ)
- Resistance Tolerance: 0.5%, 1%, 5%
- Resistance Range: 0.5mΩ to 1Ω, standard values on request
- Dielectric Strength: 1000VDC or higher on request
- Working Temperature Range: -55°C to +155°C
- Heat Resistance: Based on thermal transfer compound, heat sink needed for optimal performance
- Max Cont. Current: 200 amps depending on resistance value
- Physical Dimensions: Length approximately 1.5 inches (38.1mm), width around 0.5 inches (12.7mm), and height varies
- Housing: Heat sink nickel-plated copper, with stainless steel terminal nuts
- Certifications: UL Listed, IEC 950/CSA22.2 950/M-89, EN 60950.8
- Max Torque for Contacts: 1.3Nm, for Base Plate: 1.5Nm
Buy the Ohmite TGHGCR150FE – Reliable Current Sense Resistors for Industrial Applications
Enhance your industrial current measurement accuracy with the Ohmite TGHG series resistors. Engineered for high power and reliability, these four-terminal resistors deliver precise readings in demanding environments. Their robust construction ensures long-term stability, and their broad resistance range allows versatile application. Perfect for current monitoring, controls, and electronic systems requiring high accuracy and stability across wide temperature ranges. Purchase online today for fast delivery and trusted performance in your industrial and electrical projects.
Buy Ohmite TGHGCR150FE now and experience unmatched reliability and performance in high-current monitoring systems.
Frequently Asked Questions
Where can I buy Ohmite TGHGCR0150FE?
You can click on the BUY or RFQ button to purchase TGHGCR0150FE from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part TGHGCR0150FE?
You can download the TGHGCR0150FE datasheet or visit the Ohmite website for support.
Who is the manufacturer of TGHGCR0150FE?
Ohmite
