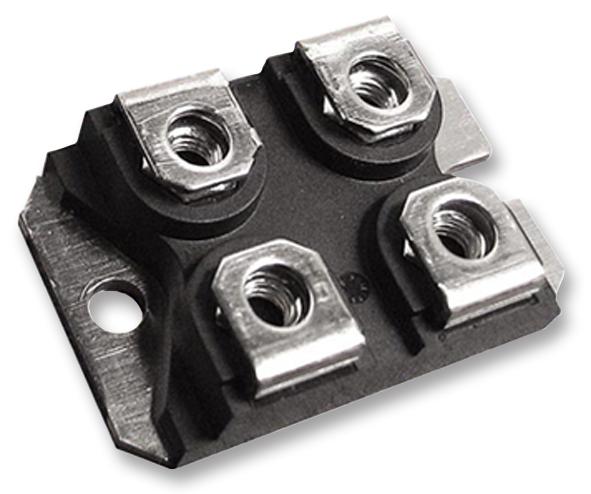

Ohmite TGHGCR0200FE Current Sense Resistor
The TGHG Series precision current sense resistors use advanced technology to ensure highly reliable, non-inductive performance. Ideal for current monitoring and control in demanding applications, these resistors feature a four-terminal Kelvin connection to isolate measurement from current flow, providing accurate readings. They support resistance values from 0.5 milliohms to 12 ohms, with a power rating of 100W at 70°C and a working temperature range from -55°C to +155°C. Certifications include IEC, CSA, and EN standards, making them suitable for high-power industrial environments.
Ohmite TGHGCR0200FE Current Sense Resistor Specifications:
- Material: Standard Resistance Values 0.5mΩ-12Ω, Resistance Tolerance: 1%
- Pulse current: up to 500A/0.5sec, Temperature Coefficient: <60pprv°C, <500ppm/°C for 27mΩ-49mΩ range
- Power Rating: 100W at 70°C, Continuous current: 50A, Dielectric strength: 1000VDC, Max working temperature: -55°C to +155°C
- Heat Resistance: Rin <0.56K/W, Protection class: IEC 950/CSA 22.2 950/M-89, Max Torque for contacts: 1.3Nm, Max torque for base plate: 1.5Nm
- Dimensions: Length approximately 1.501 inches, other size details for different resistance values included
Buy the Omite TGHG0200FE – Reliable Current Sense Resistors for Industrial Applications
Experience the superior accuracy and reliability of the Ohmite TGHG Series current sense resistors. Designed for industrial control systems, these resistors feature a robust 100W power rating, non-inductive Kelvin connection, and wide resistance options from 0.5 milliohms to 12 ohms. Their exceptional thermal stability and high dielectric strength make them suitable for high-power applications operating from -55°C to +155°C. Purchase online today to ensure your projects benefit from industry-leading quality and performance in current measurement and monitoring.
Order your Ohmite TGHG Series current sense resistor now and enhance your industrial projects with dependable, high-power performance.
Frequently Asked Questions
Where can I buy Ohmite TGHGCR0200FE?
You can click on the BUY or RFQ button to purchase TGHGCR0200FE from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part TGHGCR0200FE?
You can download the TGHGCR0200FE datasheet or visit the Ohmite website for support.
Who is the manufacturer of TGHGCR0200FE?
Ohmite
