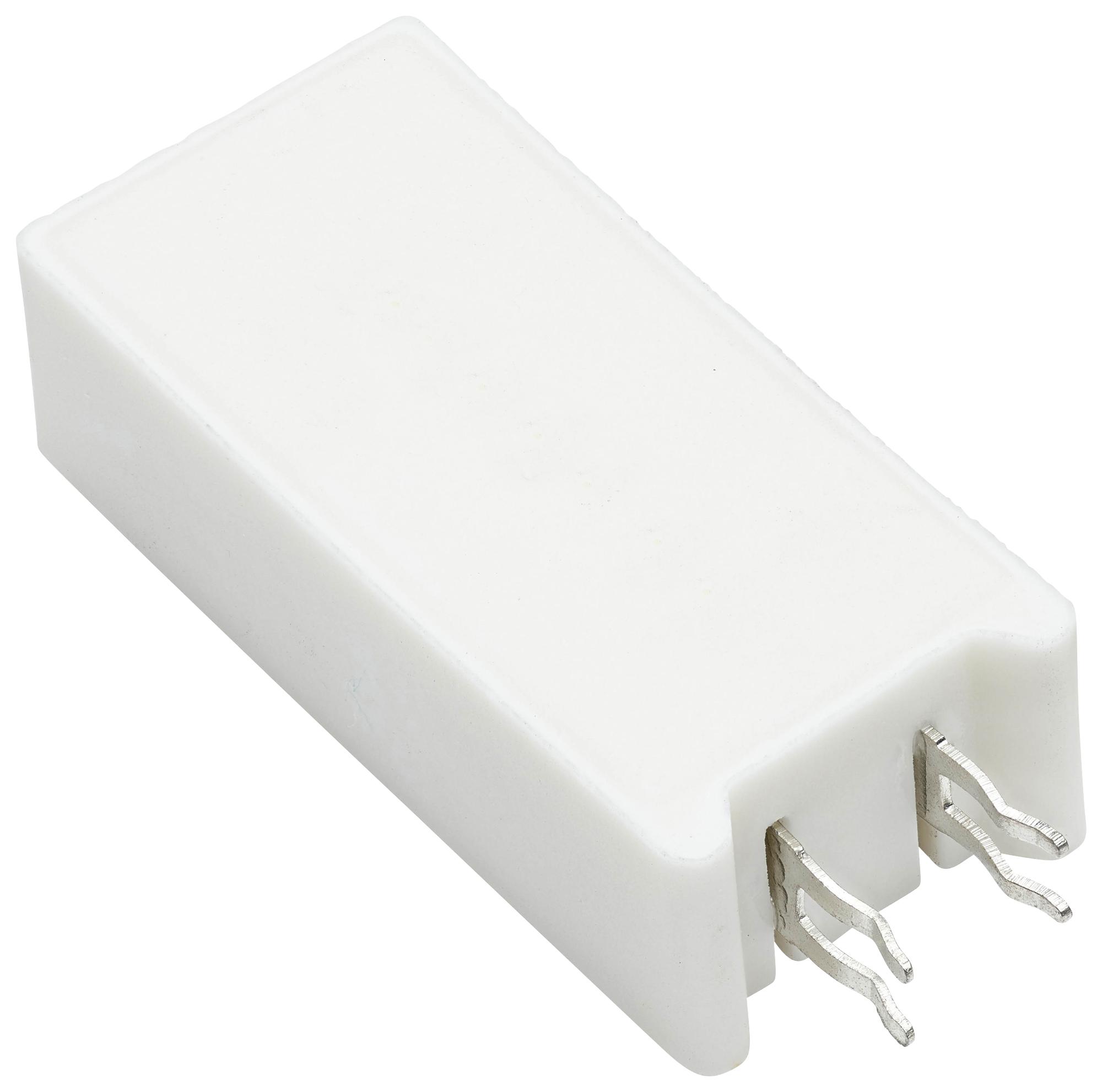

Ohmite TWM20J10KE Ceramic Resistor
The TWM20 ceramic housed radial terminal resistor offers a high wattage capacity of 20W with metal oxide construction, suitable for commercial power applications, providing reliable performance over a broad temperature range from -55°C to 275°C. Its flameproof inorganic ceramic housing ensures safety and durability. This resistor features a resistance range from 56Ω to 200kΩ, dielectric withstanding voltage of 1000VAC, and a standard tolerance of 5%. Ideal for industrial and circuit protection applications, it combines robustness with compact design for efficient board space utilization.
Ohmite TWM20J10KE Ceramic Resistor Specifications:
- Wattage: 20W
- Resistance Range: 56Ω to 200kΩ
- Resistance Tolerance: 5%
- Housing Material: Ceramic
- Construction: Metal oxide
- Dielectric Withstanding Voltage: 1000VAC
- Operating Temperature: -55°C to 275°C
- Dimensions: Height approximately 20mm, width approximately 15mm, length around 36mm
- Derating: 8% at high temperatures
- Filling: Cement based
- Temperature Coefficient: 0.01-200 400ppmv/°C
- Type: Radial terminal ceramic resistor
- Certifications: RoHS compliant
Buy the Buy Ceramic Resistor Part Number TWM20J10KE Online
Enhance your circuit protection with this high wattage ceramic resistor offering 20W power, resistance up to 200kΩ, and superior ceramic housing. Designed for industrial applications, it withstands temperatures from -55°C to 275°C, featuring a dielectric voltage of 1000VAC and a 5% tolerance for precision. Its compact radial design saves board space and provides durable, flameproof performance. Ideal for power supplies, industrial equipment, and automation systems, this resistor ensures safety, reliability, and long-term operation in demanding environments.
Buy ceramic resistor TWM20J10KE now and experience unmatched reliability and performance for industrial power applications.
Frequently Asked Questions
Where can I buy Ohmite TWM20J10KE?
You can click on the BUY or RFQ button to purchase TWM20J10KE from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part TWM20J10KE?
You can download the TWM20J10KE datasheet or visit the Ohmite website for support.
Who is the manufacturer of TWM20J10KE?
Ohmite
