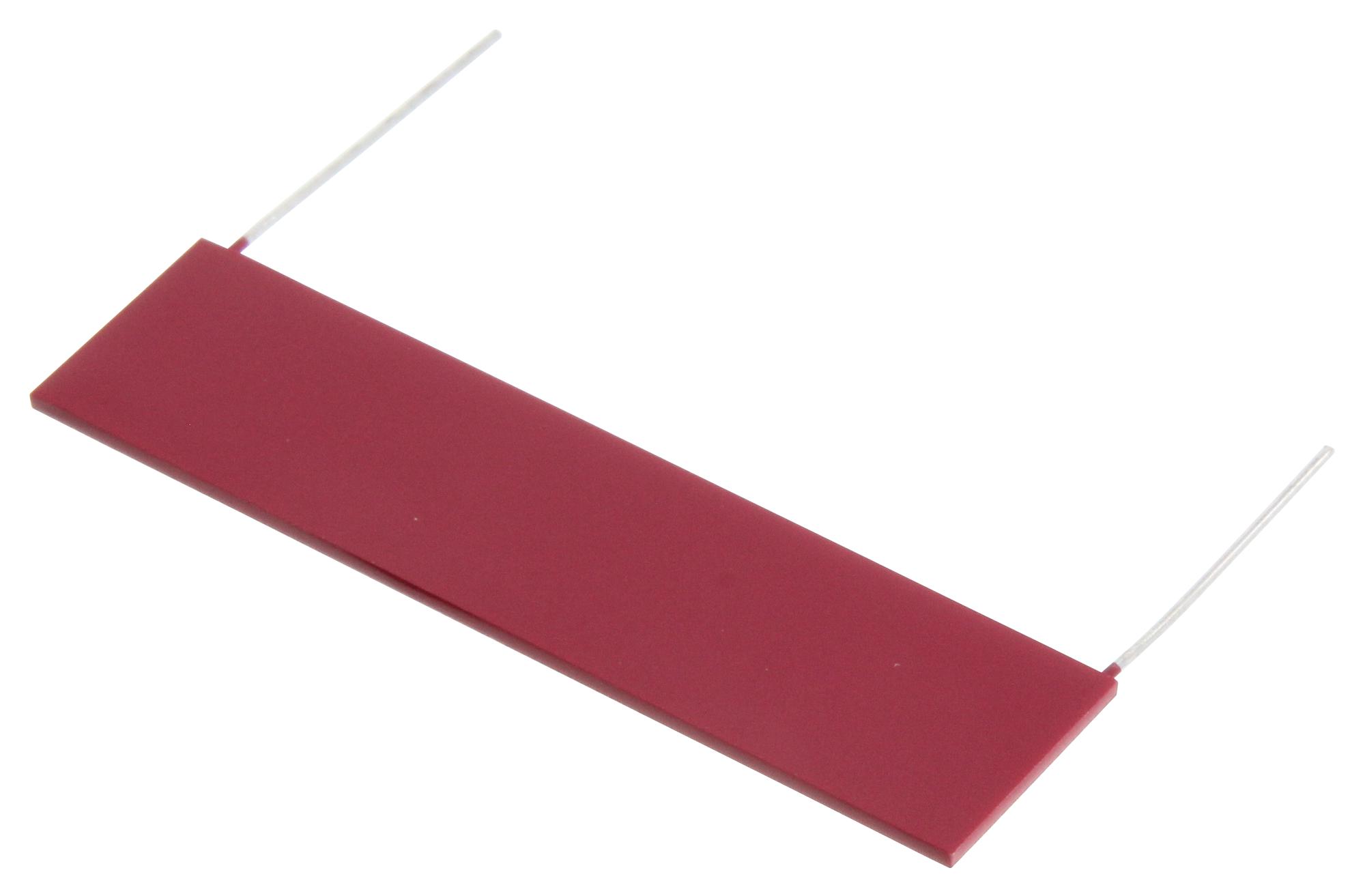

Ohmite UM050E100BKE High Voltage Resistor
The UM050E100BKE resistor is a high voltage, thick film component designed for precision applications requiring resistance values up to 10 teraohm. Featuring radial leads with customizable spacing through bending, it offers exceptional climatic protection via silicone coating and withstands harsh environments with an operating temperature range from -55°C to +125°C. Built to handle voltages up to 30KV, this resistor ensures stability and low TCR, making it ideal for high voltage dividers, measurement systems, and other demanding industrial applications.
Ohmite UM050E100BKE High Voltage Resistor Specifications:
- Resistance Range: 1M-10T
- Power Rating: 3.0W
- Working Voltage: 30KV
- Resistance Tolerance: 0.25-10%
- TCR: 25, 50, 100 ppm/V (at +25°C)
- Operating Temperature Range: -55°C to +125°C
- Climatic Category: 55/125/56
- Material: Thick film, silicone coated
- Lead Spacing: Variable, customizable by bending
- Dimensions: Approximate length 50mm, diameter 0.6mm
- Humidity & Contact Protection: Yes
- Stability at Max Voltage: <1% at <10G, <2% at >10G over 1000 hours
Buy the Buy Ohmite High Voltage Thick Film Resistor Part Number UM050E100BKE Online
Order the Ohmite UM050E100BKE high voltage thick film resistor online today. Designed for precision, it offers resistance up to 10 teraohm, voltage up to 30KV, and exceptional stability from -55°C to +125°C. Featuring silicone coating for climatic resistance and customizable lead spacing, it’s ideal for industrial measurement and high voltage divider applications. Enjoy fast shipping, secure purchasing, and reliable performance for your demanding electronic projects, ensuring durability and accuracy in critical environments.
Get Ohmite UM050E100BKE today—built for high voltage precision and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy Ohmite UM050E100BKE?
You can click on the BUY or RFQ button to purchase UM050E100BKE from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part UM050E100BKE?
You can download the UM050E100BKE datasheet or visit the Ohmite website for support.
Who is the manufacturer of UM050E100BKE?
Ohmite
