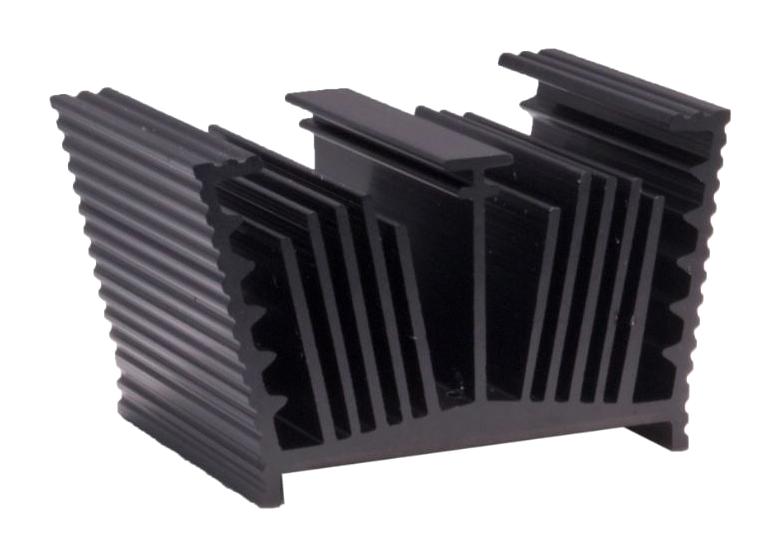

Ohmite VXA55101E Heat Sink
The VX series heat sinks are designed for TGHE series and SOT-227 devices, offering efficient cooling through unique profiles suitable for PCB, panel, or chassis mounting. Made from AL 6063-T5 with a thermal conductivity of 209 W/m-K, they support power dissipation up to 100W under forced airflow conditions. The anodized or degreased surfaces are corrosion-resistant, ensuring durability. With lightweight construction, M3.5 fasteners, and compatibility with thermal interface materials like Ohmite TGH-TP1, these heat sinks effectively manage heat in high-power electronic applications, improving device longevity and performance.
Ohmite VXA55101E Heat Sink Specifications:
- Material: Aluminum 6063-T5
- Surface Finish: Black anodized or degreased
- Thermal Conductivity: 209 W/m-K
- Heatsink Compatible Surface Area: 38 / 24,638 mm² for TGHE; 60 / 38,717 mm² for SOT-227
- Weight: 1.4 oz / 39 g for VXA-35-101E, 2.2 oz / 62 g for VXV-55-101E
- Length: 35 mm / 1.38 inches for VXA-35-101E, 55 mm / 2.17 inches for VXV-55-101E
- Spacing: 28 mm / 1.10 inches for VXA-35-101E, 30 mm / 1.18 inches for VXV-55-101E
- Thread Size: M3 for VXA-35-101E, M3.5 for VXV-55-101E
- Maximum Case Temperature: 63°C for VXV-55-101E
- Supports Forced Convection Cooling, Supports Thermal Interfaces
- RoHS Compliant, Aluminum extrusion
Buy the Ohmite VXA55101E – Reliable Heat Sink for Industrial Applications
Enhance your electronic device cooling with the durable, lightweight, and efficient heat sink designed for TGHE and SOT-227 devices. Featuring anodized or degreased surfaces, it supports up to 100W power dissipation with forced airflow. Its compact design allows easy mounting on PCBs, panels, or chassis using M3.5 screws, ensuring optimal thermal management. Made from high-quality aluminum with excellent thermal conductivity, this heat sink enhances device reliability and longevity, providing a perfect cooling solution for demanding industrial applications.
Buy Ohmite VXA55101E now and experience unmatched reliability and performance tailored for high-power electronic cooling.
Frequently Asked Questions
Where can I buy Ohmite VXA55101E?
You can click on the BUY or RFQ button to purchase VXA55101E from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part VXA55101E?
You can download the VXA55101E datasheet or visit the Ohmite website for support.
Who is the manufacturer of VXA55101E?
Ohmite
