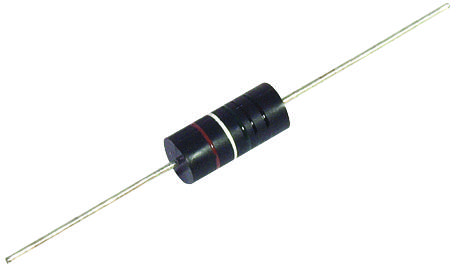

Ohmite WNE1R0FET High Power Resistor
This high-power resistor is engineered for demanding electronic circuits, offering reliable performance and robust construction capable of handling significant electrical loads. Designed to meet MIL standards, it features epoxy encapsulation for durability and stability across a wide temperature range from -55°C to +150°C. The resistor type is ceramic core, rated at 1 watt, with a resistance range from 0.100 to 250KΩ. Its compact design includes stainless steel end caps, copper wire leads with 100% Sn coating, and epoxy molding for enhanced environmental resistance. Suitable for industrial and power management applications requiring high power dissipation and precision.
Ohmite WNE1R0FET High Power Resistor Specifications:
- Power Rating: 1 watt
- Resistance Range: 0.100 to 250KΩ
- Core Material: Ceramic CeramTec Rubalit® 85% alumina
- Encapsulation: Epoxy molding compound, SUMICON 1100/1200
- Lead Material: Copper wire, 100% Sn (lead-free), precision formed stainless steel end caps
- Temperature Range: -55°C to +150°C
- Resistance Wire: ISAOHM® wire, TC +20ppm/°C
- Size (L x D): 14.64 x 0.45 inches (approx.), various sizes per model
- Dielectric Withstanding Voltage: >500 volts rms for 1 min
- Insulation Resistance: >10^9Ω at 500V rms for 1 min
- Maximum Working Voltage: Based on resistor value and derating at elevated temperatures
- Certifications: MIL-STD-202, RoHS compliant
- Environmental Resistance: Thermal shock, overload, solderability, and corrosion resistant
Buy the Acme 1R0FET – Reliable High Power Resistor for Industrial Applications
Purchase the high power resistor online today to ensure your electronic projects and industrial systems operate reliably and efficiently. Designed for demanding applications, it features robust construction, high thermal stability, and precise resistance values up to 250KΩ. Suitable for power management, industrial automation, and high-load circuits, this resistor offers excellent environmental resistance, stable performance over wide temperature ranges from -55°C to +150°C, and compliance with industry standards. Order now for fast delivery and excellent post-sale support to enhance your power circuitry and electronic systems.
Get Acme WNE1R0FET today—built for precision and long-lasting durability in power and industrial circuits.
Frequently Asked Questions
Where can I buy Ohmite WNE1R0FET?
You can click on the BUY or RFQ button to purchase WNE1R0FET from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part WNE1R0FET?
You can download the WNE1R0FET datasheet or visit the Ohmite website for support.
Who is the manufacturer of WNE1R0FET?
Ohmite
