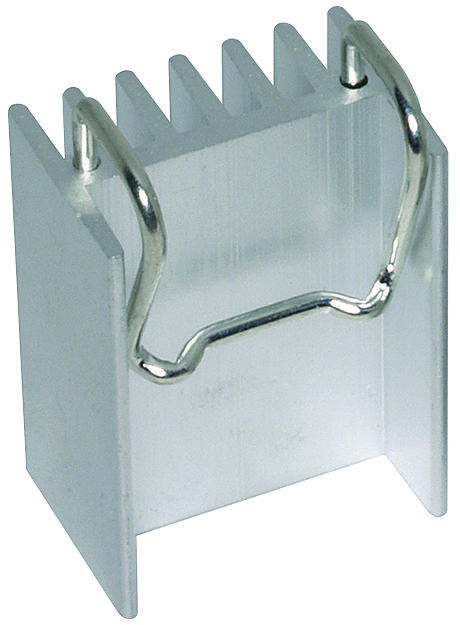

Ohmite WVT247101E Heatsink Module
The W Series heatsinks provide an all-in-one solution for mounting TO-220, TO-247, and TO-264 devices. Featuring a tin-plated solderable spring clip and extruded aluminum body, these heatsinks ensure high thermal performance and reliable mounting. Their design reduces assembly costs by eliminating fasteners and fixtures while providing maximum heat transfer per space. The self-aligning, resilient clips are resistant to shock and vibration, ensuring long-term stability and performance. RoHS compliant and suitable for natural convection cooling around 10W heat dissipation, these heatsinks are ideal for efficient thermal management in electronics.
Ohmite WVT247101E Heatsink Module Specifications:
- Material: Aluminum alloy 6063-T5 or equivalent
- Surface Finish: 100% tin over copper strike
- Mounting: Vertical thru-hole
- Spring Load Force: 13.2 lbf
- Thermal Resistance: Rs-a=7°C/W or 8°C/W
- Surface Area: 6.5 in²
- Weight: 0.35 oz (10 g) to 0.42 oz (12 g)
- Maximum Heat Dissipation: 10W under natural convection
- Package Types: TO-220, TO-247, TO-264
- RoHS Compliance: Yes
- Maximum Shock Resistance: High
- Vibration Resistance: High
- Dimensions: Length varies by model, approximately 0.72
- 0.91
- 0.92
- 1.2
- 1.71
- 0.5
- 0.71
- 0.89
- 1.2
- 1.71
- Interface: Solderable feet with tin plating, thermal interface materials recommended
- Patent Pending: Yes
Buy the Ohmite Series Heatsinks: W Series WVT247101E
Purchase the Ohmite Series heatsink WVT247101E online today and experience superior thermal performance for your electronic projects. Its unique design reduces assembly time and costs by eliminating fasteners and fixtures, thanks to the integrated solderable spring clip and extruded aluminum body. Suitable for TO-220, TO-247, and TO-264 packages, this heatsink ensures maximum surface area for heat transfer, high shock and vibration resistance, and RoHS compliance. Perfect for natural convection cooling around 10W, it offers excellent reliability and consistent thermal performance for demanding applications.
Order your Ohmite Series heatsink WVT247101E today and enhance your thermal management with a reliable, high-performance component designed for efficient heat dissipation.
