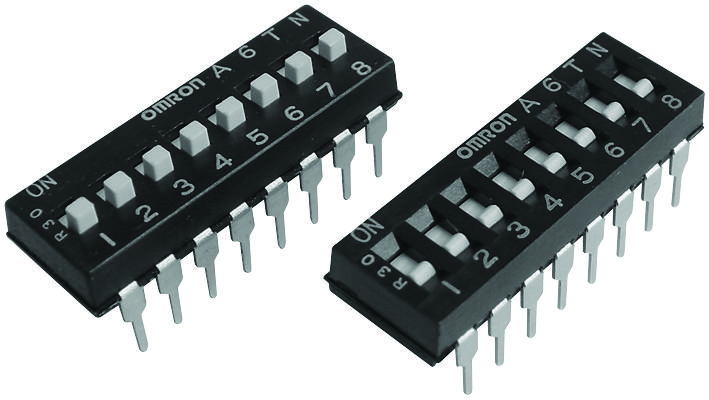

OMRON ELECTRONIC COMPONENTS A6TN4104 Slide DIP Switch
High-reliability through-hole mount slide DIP switches designed for wide applications, featuring knife-edge contact pressure mechanisms. These toggles, available in models with 1 to 10 poles, are RoHS compliant and washable without seal tape. Suitable for electronic circuit configurations, they offer stable electrical connectivity with resistance to vibration and shocks. Operating under ambient temperatures from -30°C to +85°C with rated resistive loads, these switches ensure durability and safety in diverse environments, making them ideal for control panels, automation, and instrumentation systems.
OMRON ELECTRONIC COMPONENTS A6TN4104 Slide DIP Switch Specifications:
- Rating (resistive load): 1 TA at 3.5 VDC
- Ambient operating temperature: -30 to +85 °C at 60% max. (no icing or condensation)
- Operating humidity: 35% to 95% (at +5 to +35 °C)
- Insulation resistance: 100 MO min. at 100 VDC
- Contact resistance (initial): 200 mΩ max.
- Dielectric strength: 300 VAC for 1 min between terminals
- Vibration resistance: 10 to 55 Hz, 1.5-mm double amplitude
- Shock resistance: 490 m/s² min.
- Durability: 1,000 operations min.
- Degree of protection: IP40
- Operating force: 0.98 to 7.9 N (100 to 806 gf)
- Weight: 0.31 g (2 poles), 0.58 g (4 poles), 0.84 g (6 poles), 1.1 g (8 poles), 1.36 g (10 poles)
Buy the Buy Omron Slide DIP Switch Part Number A6TN4104 Online
Discover the ease and confidence of purchasing the Omron slide DIP switch online. Designed for reliability and seamless integration, this switch features high contact pressure for stable operation, wide pole options from 1 to 10, and RoHS compliance. Its washable and through-hole mount design ensure durability in various environments. Ideal for automation, control panels, or instrumentation, this switch guarantees safe, consistent switching performance with minimal maintenance. Trust Omron quality for your electronic control needs and buy now to upgrade your systems effortlessly.
Order your Omron Series A6TN4104 high-reliability slide DIP switch today and enhance your circuit control with durable, easy-to-wash switching solutions.
Frequently Asked Questions
Where can I buy OMRON ELECTRONIC COMPONENTS A6TN4104?
You can click on the BUY or RFQ button to purchase A6TN4104 from an authorized OMRON ELECTRONIC COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part A6TN4104?
You can download the A6TN4104 datasheet or visit the OMRON ELECTRONIC COMPONENTS website for support.
Who is the manufacturer of A6TN4104?
OMRON ELECTRONIC COMPONENTS
