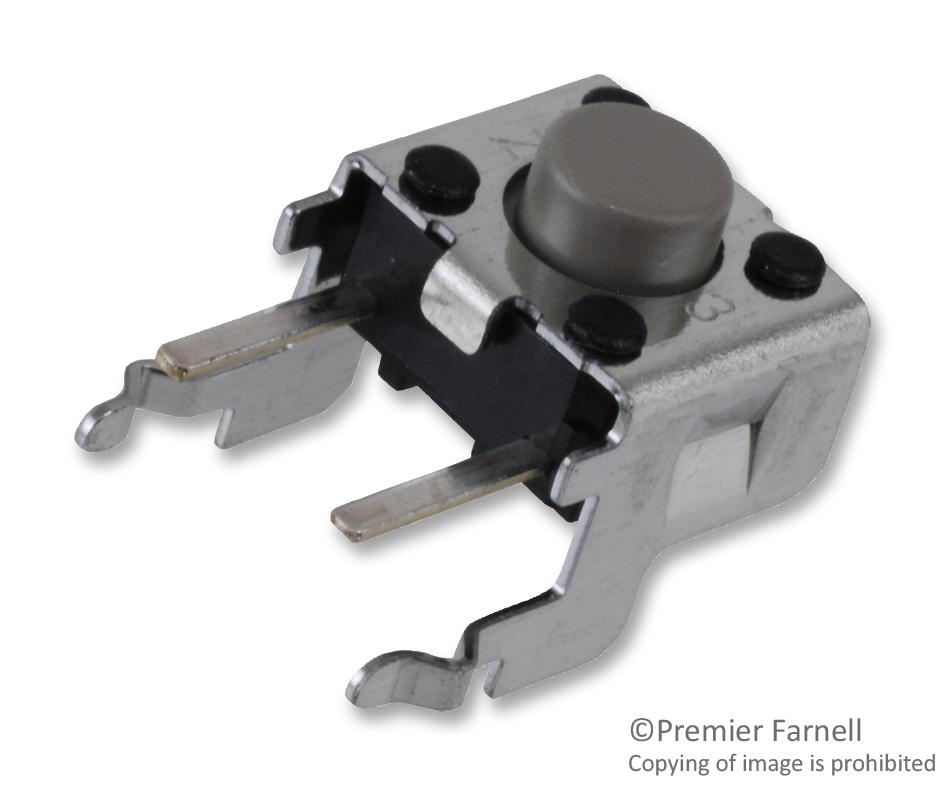

OMRON ELECTRONIC COMPONENTS B3F3122 Tactile Switch
The Omron B3F series tactile switches are compact, reliable components available in 6mm x 6mm and 12mm x 12mm sizes. They feature various models including standard, side-operated, long durability, and high-force types, with high-reliability gold-plated options for improved contact resistance and corrosion resistance. These switches support flat and projected plungers, DIP terminals, and taped radial configurations suited for automated assembly. With operating forces from 0.98N to 4.9N, they are ideal for industrial controls, automation, and power management systems, offering up to 1 million cycles durability for robust performance in harsh environments.
OMRON ELECTRONIC COMPONENTS B3F3122 Tactile Switch Specifications:
- Contact Resistance: 100 mΩ max.
- Contact Form: SPST-NO
- Operating Force: 0.98N to 4.9N depending on model
- Switching Capacity: Up to 50mA at 24VDC
- Material: Gold-plated contacts (high-reliability models)
- Durability: Up to 10 million operations for certain models
- Temperature Range: -25°C to +70°C
- Maximum Vibration Resistance: 1.5 mm amplitude at 10-55 Hz
- Shock Resistance: Up to 100G destruction, 10G malfunction
- Physical Size: 6mm x 6mm, 12mm x 12mm
- Mounting Type: Through-hole, radial tape, DIP
- Color: Various depending on model, including Ivory, Yellow, Black, Gray, Pink, Blue, and Orange
- RoHS Compliant, suitable for industrial and automation environments
Buy the Buy Omron B3F Part Number B3F3122 Online
Purchase the Omron B3F tactile switch online today to ensure reliable performance in your automation, industrial equipment, and power management systems. Designed for durability with extended mechanical and electrical life, these switches feature gold-plated contacts for improved reliability and resistance to harsh environments. Available in 6mm x 6mm and 12mm x 12mm sizes, they support a range of configurations including standard, side-operated, long durability, and high-force types. Easy to mount with through-hole, radial tape, and DIP options, they are ideal for demanding industrial applications and process control equipment, providing up to 10 million operations for long-term dependability.
Get Omron B3F 3122 today—built for precision and long-lasting durability in automation and industrial control systems.
Frequently Asked Questions
Where can I buy OMRON ELECTRONIC COMPONENTS B3F3122?
You can click on the BUY or RFQ button to purchase B3F3122 from an authorized OMRON ELECTRONIC COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part B3F3122?
You can download the B3F3122 datasheet or visit the OMRON ELECTRONIC COMPONENTS website for support.
Who is the manufacturer of B3F3122?
OMRON ELECTRONIC COMPONENTS
