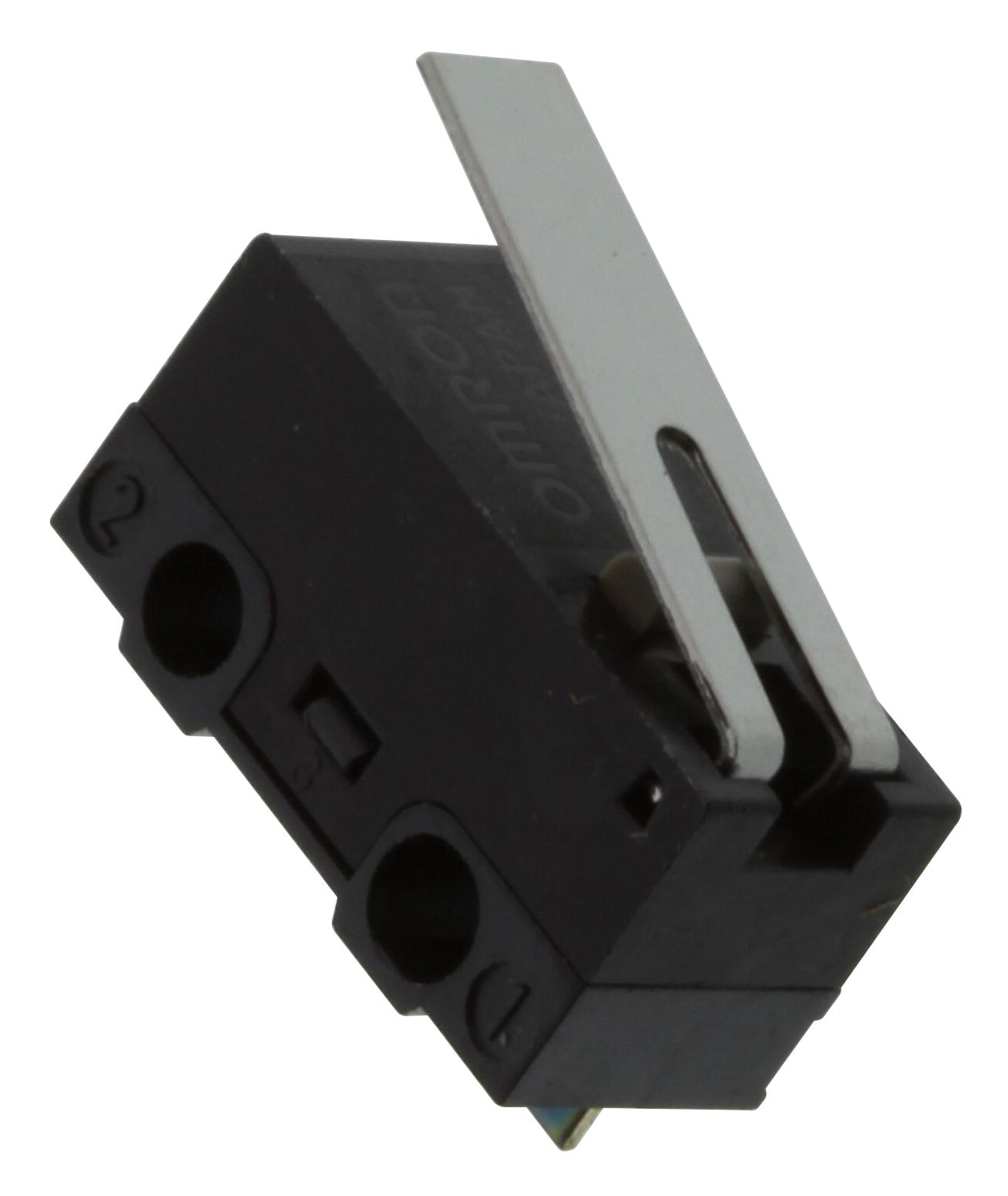

OMRON ELECTRONIC COMPONENTS D2F01FLD Ultra Subminiature SPDT Switch
The D2F01FLD is a general-purpose, ultra-subminiature SPDT switch featuring a hinge lever actuator and compact solder terminals. It utilizes a snapping mechanism with two precise split springs, ensuring long-lasting durability. The switch includes gold-plated alloy contacts and employs insertion-molded terminals that prevent flux penetration. It offers a minimum insulation resistance of 100 MΩ at 500 VDC and a maximum contact resistance of 100 mΩ (initial). The switch is rated IP40 for protection and is suitable for industrial applications.
OMRON ELECTRONIC COMPONENTS D2F01FLD Ultra Subminiature SPDT Switch Specifications:
- Contact Form: SPDT
- Contact Material: Gold alloy
- Contact Resistance: 100 mΩ (initial)
- Insulation Resistance: 100 MΩ min at 500 VDC
- Dielectric Strength: 1,500 VAC 50/60Hz
- Protection Degree: IP40
- Operating Temperature: -40°C to +85°C
- Mounting: Solder terminals with 0.8 to 1.0 N-m torque
- Material: POM lever, metal case
- Vibration Resistance: 10-55 Hz, 1.5-mm double amplitude
- Shock Durability: 100G max.
- Mechanical Life: 1,000,000 operations min.
- Electrical Life: 100,000 operations min.
Buy the Omron Series D2F Ultra-Subminiature SPDT Switch: D2F01FLD
Order the Omron ultra-subminiature SPDT switch D2F01FLD online today. Designed with a hinge lever, compact solder terminals, and gold alloy contacts for reliable switching performance. Perfect for industrial and electronic applications requiring space-saving and durable solutions. This switch features a long mechanical lifespan of over 1 million operations and an electrical lifespan of 100,000. Rated IP40 for protection and rated for temperatures from -40°C to +85°C, ensuring optimal performance in harsh environments. Easy to install with solder terminals and robust construction, offering high reliability and safety.
Get Omron D2F01FLD today—built for precision and long-lasting durability in industrial and electronic applications.
Frequently Asked Questions
Where can I buy OMRON ELECTRONIC COMPONENTS D2F01FLD?
You can click on the BUY or RFQ button to purchase D2F01FLD from an authorized OMRON ELECTRONIC COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part D2F01FLD?
You can download the D2F01FLD datasheet or visit the OMRON ELECTRONIC COMPONENTS website for support.
Who is the manufacturer of D2F01FLD?
OMRON ELECTRONIC COMPONENTS
