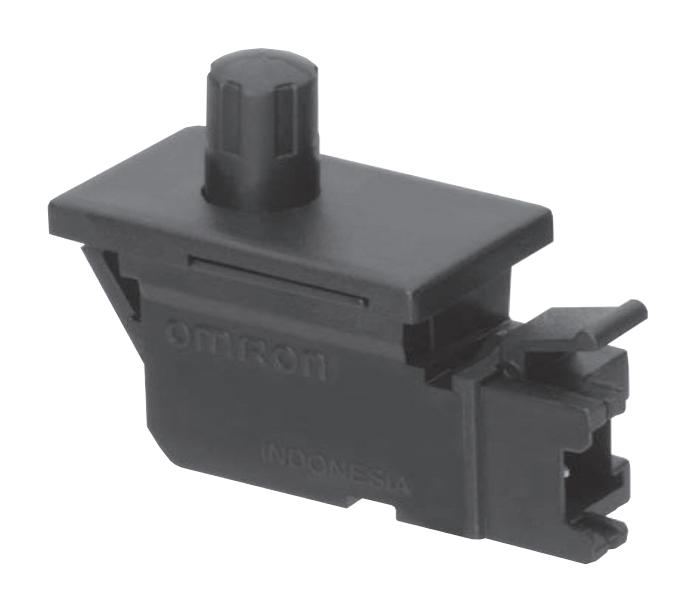

OMRON ELECTRONIC COMPONENTS D3DC2 Miniature Door Switch
The D3D series miniature door switch features a 9mm stroke with a unique plunger or lever actuator, suitable for refrigerator and industrial applications. It offers easy wiring via crimp-type connector, snap-fit installation, and is RoHS compliant. The switch has a compact design with high durability, capable of handling up to 50,000 electrical operations, with IP00 protection, and is resistant to vibration and shock. It ensures reliable operation with insulation resistance of 400 MΩ and contact resistance below 100 mΩ, rated for resistive loads at 125 V AC and 250 V AC, with UL and cUL safety certifications.
OMRON ELECTRONIC COMPONENTS D3DC2 Miniature Door Switch Specifications:
- Mechanical Operation Speed: 7.5 mm to 500 mm/s
- Electrical Operating Frequency: 20 operations/min
- Insulation Resistance: 400 MΩ min. at 500 VDC
- Contact Resistance: Max 100 mΩ
- Dielectric Strength: 1,500 VAC 50/60Hz 1 min between terminals and ground
- Vibration Resistance: 10 to 55 Hz, 1.5 mm double amplitude
- Shock Resistance: 490 m/s² (approx. 49 G)
- Durability: 300,000 mechanical operations min., 50,000 electrical operations min.
- Degree of Protection: IEC IP0O
- Operating Temperature Range: -30°C to +60°C
- Weight: Approx. 4g
- Mounting Holes: 1.5 mm diameter, 108 mm spacing
- Housing Color: White or Black
- Connector: JST HL series, SSF-21T-P1.4
- Certifications: UL (UL61058-1), cUL (CSA C22.2 No.61058-1)
- Rated Voltage: 125 VAC 1A, 250 VAC 0.5A
- Actuator Types: Plunger and Lever options, with operating forces up to 20 N
- Contact Types: SPDT, SPST-NC, SPST-NO
Buy the Omron D3D – Reliable Miniature Door Switch for Industrial Applications
Upgrade your equipment with the Omron D3D series miniature door switch, designed for reliability and ease of installation. Its compact 9mm stroke and durable construction make it ideal for refrigerators and industrial systems. The switch features easy wiring with a crimp connector, snap-fit mounting, and high resistance to vibration and shocks, ensuring long-term performance. Certified by UL and cUL, it handles resistive loads of up to 125 V AC at 1A, providing dependable operation for various control and safety applications. Buy online now for quick and guaranteed delivery.
Order your Omron D3D series miniature door switch today and give your projects the dependable quality they deserve for refrigeration and industrial efficiency.
