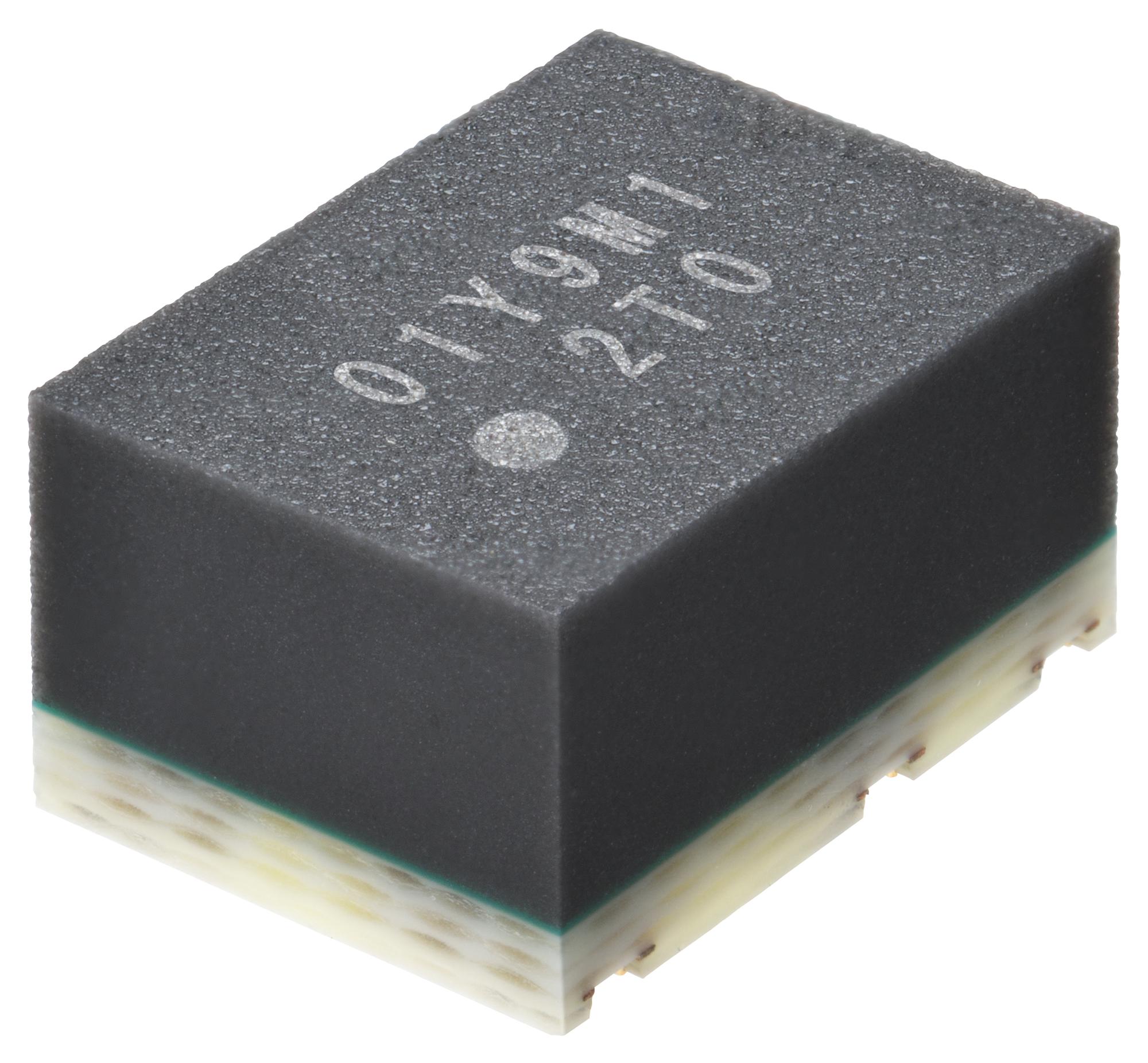

OMRON ELECTRONIC COMPONENTS G3VM21MTTR01 MOSFET Relay Module
This MOSFET relay module features a compact package that helps reduce mounting space on printed circuit boards. It offers very low leakage current of maximum 21 pA at 20 V, and comes with a contact form of 1A SPST-NO plus a T-switch function. Designed for surface mounting, it supports a load voltage up to 20 V and a continuous load current of 200mA. The module is RoHS compliant and ideal for conductor testing equipment, offering reliable switching with low on-resistance and fast switching times, ensuring high system efficiency.
OMRON ELECTRONIC COMPONENTS G3VM21MTTR01 MOSFET Relay Module Specifications:
- Load Voltage: Up to 20 V (AC peak/DC)
- Continuous Load Current: 200 mA
- Leakage Current: Max 21 pA at 20 V
- Contact Form: 1A SPST-NO with T-switch function
- Input LED Forward Current: Max 30 mA for main and sub controls
- Dielectric Strength: 500 V (AC) between input/output
- Ambient Operating Temperature: -40°C to 110°C
- Soldering Temperature: 260°C for 10 seconds
- Material: Surface-mount terminals, RoHS compliant
- Solder Mounting: Recommended reflow profile with peak 250°C, 2 s
Buy the Buy MOSFET Relay Module Part Number G3VM-21MT Online
Order the MOSFET Relay Module G3VM-21MT online today to enjoy reliable, low leakage switching performance in a compact surface-mount package. Ideal for conductor testing and electronic equipment, this module supports load voltages up to 20V and 200mA current. Its low leakage current of 21 pA maximizes efficiency and minimizes power loss. With RoHS compliance and a design focused on surface mounting, it ensures ease of assembly and high durability. Perfect for demanding applications where space-saving and precision switching are critical, buy now to upgrade your circuit reliability and performance.
Buy MOSFET Relay Module G3VM-21MT now and experience low leakage current, compact design, and reliable switching for conductor testing and automation.
Frequently Asked Questions
Where can I buy OMRON ELECTRONIC COMPONENTS G3VM21MTTR01?
You can click on the BUY or RFQ button to purchase G3VM21MTTR01 from an authorized OMRON ELECTRONIC COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part G3VM21MTTR01?
You can download the G3VM21MTTR01 datasheet or visit the OMRON ELECTRONIC COMPONENTS website for support.
Who is the manufacturer of G3VM21MTTR01?
OMRON ELECTRONIC COMPONENTS
