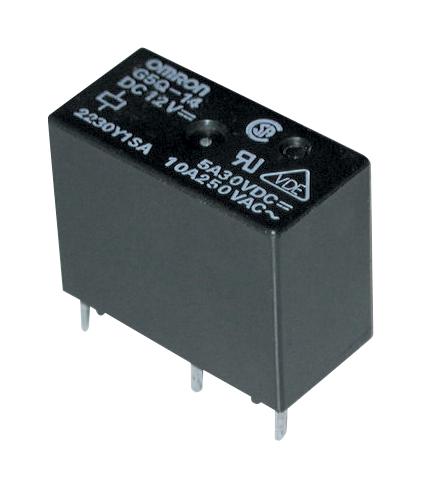

OMRON ELECTRONIC COMPONENTS G5Q14EUDC5 PCB Power Relay
The G50 PCB power relay is a compact, single-pole relay rated at 10A, suitable for various resistive loads up to 250 VAC or 30 VDC. It features excellent switching performance, low coil power consumption, and a robust construction with an impulse withstand voltage of 8 kV. Certified for UL and CSA standards, it is ideal for control equipment, home appliances, and industrial automation. The relay provides reliable operation with quick response times, high insulation resistance, and a rated switching capacity, making it an essential component for electronics and automation applications.
OMRON ELECTRONIC COMPONENTS G5Q14EUDC5 PCB Power Relay Specifications:
- Contact Material: Silver alloy (Cd free)
- Contact Form: SPST-NO or SPDT
- Rated Load: 10 A at 250 VAC, 3 A at 30 VDC
- Coil Ratings: 5 VDC, 9 VDC, 12 VDC, 24 VDC with various coil resistances
- Impulse withstand voltage: 8 kV
- Coil Power Consumption: SPST-NO: 200 mW, SPDT: 400 mW
- Insulation Resistance: 1,000 MΩ min between coil and contacts
- Dielectric Strength: 1,000 VAC for 1 min
- Vibration Resistance: 10 to 55 Hz, 0.75 mm amplitude
- Shock Resistance: 100 m/s²
- Ambient operating temperature: -40°C to 105°C for standard, -40°C to 85°C for high-capacity models
- Compliance: UL Recognized, CSA Certified, RoHS compliant
- Dimensions: Approximate size 20.3 mm x 20.9 mm x 15.8 mm
Buy the OMRON Series G50 PCB Power Relay: G5Q14EUDC5
Purchase the OMRON Series G50 PCB Power Relay G5Q14EUDC5 online today and enjoy dependable switching for your electronic control systems. This compact relay features a 10A capacity, high insulation resistance, and certifications from UL and CSA, ensuring safety and performance. Ideal for industrial automation, home appliances, and control equipment, it offers quick response times, low coil power consumption, and robust contact materials. With versatile coil ratings and compliance to RoHS standards, this relay is the perfect component for reliable, high-quality electronic projects.
Order your OMRON Series G50 PCB Power Relay G5Q14EUDC5 today and ensure reliable switching performance for your control and automation projects.
Frequently Asked Questions
Where can I buy OMRON ELECTRONIC COMPONENTS G5Q14EUDC5?
You can click on the BUY or RFQ button to purchase G5Q14EUDC5 from an authorized OMRON ELECTRONIC COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part G5Q14EUDC5?
You can download the G5Q14EUDC5 datasheet or visit the OMRON ELECTRONIC COMPONENTS website for support.
Who is the manufacturer of G5Q14EUDC5?
OMRON ELECTRONIC COMPONENTS
