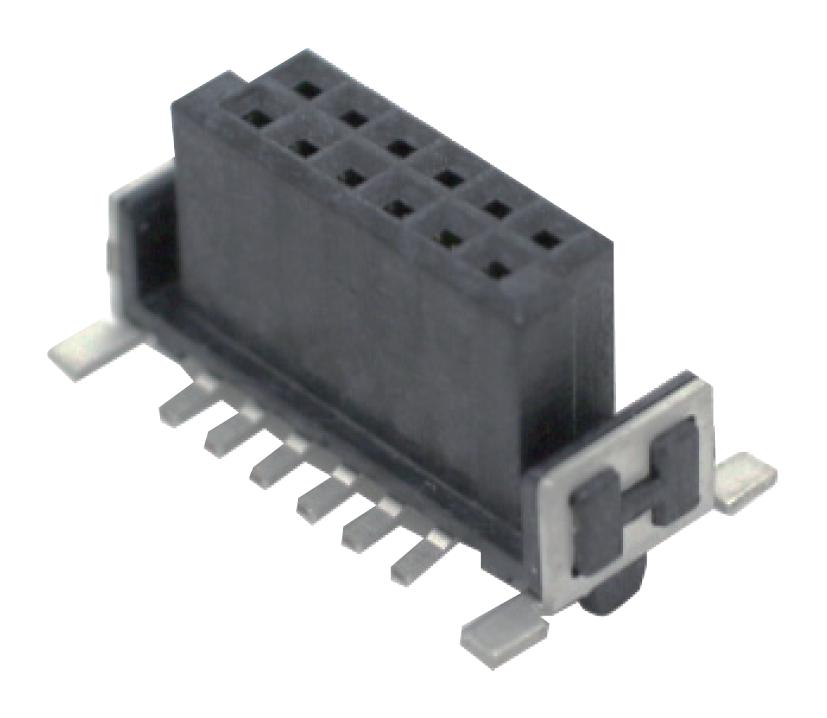

OMRON ELECTRONIC COMPONENTS XH5B68155N SMT Connector
The XH5-N series comprises high-quality SMT connectors with a 1.27-mm pitch, designed for versatile board-to-board and board-to-cable applications. These connectors feature various mounting types, including straight and right-angle configurations, with through-hole reflow hold-down options and crimping sockets for ease of assembly. They are RoHS compliant, support multiple contact counts, and are suitable for automation, ensuring reliable electrical connections while withstanding high temperatures up to 260°C during soldering. Their robust design guarantees long-lasting durability in demanding electronic systems.
OMRON ELECTRONIC COMPONENTS XH5B68155N SMT Connector Specifications:
- Pitch: 1.27 mm
- RoHS Compliance: Yes
- Maximum Reflow Soldering Temperature: 260°C
- Soldering Time: 20 to 40 seconds
- Contact Resistance: 25 mV max at 20 mA
- Insulation Resistance: 1000 MΩ min at 100 VDC
- Dielectric Strength: 500 VAC for 1 minute
- Operating Temperature: -55°C to +105°C
- Housing Material: LCP (UL94 V-0), black
- Cover Material: PBT (UL94 V-0), black
- Rated Current: 1A
- Rated Voltage: 100 VAC
- Housing Contact Material: Copper alloy, gold plated
Buy the Buy Omron XH5-N Part Number XH5B68155N Online
Order the Omron XH5-N SMT connector now for dependable board-to-board and cable connections. Engineered for high-temperature reflow soldering, these connectors are RoHS compliant and suitable for automation. Features include multiple configurations, high durability, and precise contact design, ensuring stable electrical performance in demanding environments. Perfect for manufacturing, circuit design, and electronic assembly, facilitating quick online procurement. Secure your supply of this versatile connector today for efficient and long-term electronic system performance.
Get Omron XH5-N connector today—designed for reliable and long-lasting electronic connections.
Frequently Asked Questions
Where can I buy OMRON ELECTRONIC COMPONENTS XH5B68155N?
You can click on the BUY or RFQ button to purchase XH5B68155N from an authorized OMRON ELECTRONIC COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part XH5B68155N?
You can download the XH5B68155N datasheet or visit the OMRON ELECTRONIC COMPONENTS website for support.
Who is the manufacturer of XH5B68155N?
OMRON ELECTRONIC COMPONENTS
