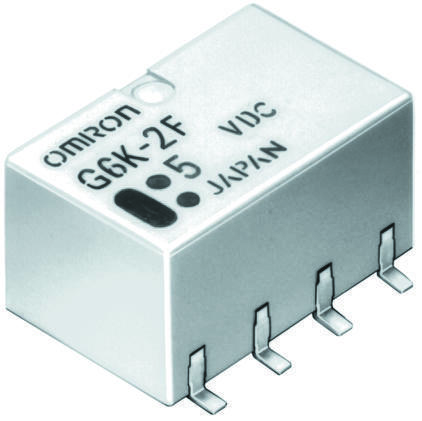

OMRON ELECTRONIC COMPONENTS G6K2PYDC24 Surface Mounting Relay
The G6K surface mounting relay is a compact, high-density component ideal for telecommunication, automation, and industrial equipment. It features a small size of 5.2 x 6.5 x 10 mm, low profile of 5.2 mm, and lightweight design at 0.7 g for easy installation and high-speed mounting. The relay offers robust dielectric strength of 1,500 VAC, conforming to FCC Part 68 and UL/CSA standards, with models providing impulse withstand voltages up to 2,500 V. Rated for 2A carry current, it ensures reliable switching in various industrial applications with RoHS compliance.
OMRON ELECTRONIC COMPONENTS G6K2PYDC24 Surface Mounting Relay Specifications:
- Dimensions: 5.2 mm height, 6.5 mm width, 10 mm length
- Weight: 0.7 g
- Rated Coil Voltage: 3VDC, 4.5VDC, 5VDC, 12VDC, 24VDC, 45VDC, 4.5VDC (highly insulated), 5VDC (inside-L terminals), 12VDC, 24VDC
- Contact Ratings: 2A at 125 VAC, 1A at 30 VDC, 0.3A at 125 VAC
- Insulation Resistance: 1,000 MΩ min. at 500 VDC, between coil and contacts 1,800 VAC
- Dielectric Strength: 1,500 VAC conforming to FCC Part 68, impulse withstand voltage models up to 2,500 V
- Relay Type: DPDT (double-pole, double-throw), surface mounting terminals, inside-L or outside-L terminal shape
- Rated Load: Resistive load capacity 2A at 125 VAC, switching voltage max 125 VAC, max switching current 1A
- Environmental Ratings: RoHS compliant, UL/CSA/EN60950 approved
- Operating Temperature: -40°C to +70°C
- Durability: Mechanical 50 million operations, Electrical 700,000 operations at rated load
Buy the Buy Omron Surface Mounting Relay G6K PDC24 Part Number Online
Purchase the Omron G6K surface mounting relay online today and ensure reliable switching in industrial automation, telecommunications, and control systems. This compact relay features a robust dielectric strength of 1,500 VAC, impulse withstand voltage up to 2,500 V, and a current capacity of 2A, making it suitable for high-density mounting in space-constrained environments. Its RoHS compliance and UL/CSA certifications guarantee safety and quality. Easy to install and highly durable, the G6K relay offers consistent performance for industrial automation, security equipment, and home appliances. Order now for fast delivery.
Get Omron G6K surface mounting relay today—built for precision, low-profile design, and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy OMRON ELECTRONIC COMPONENTS G6K2PYDC24?
You can click on the BUY or RFQ button to purchase G6K2PYDC24 from an authorized OMRON ELECTRONIC COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part G6K2PYDC24?
You can download the G6K2PYDC24 datasheet or visit the OMRON ELECTRONIC COMPONENTS website for support.
Who is the manufacturer of G6K2PYDC24?
OMRON ELECTRONIC COMPONENTS
