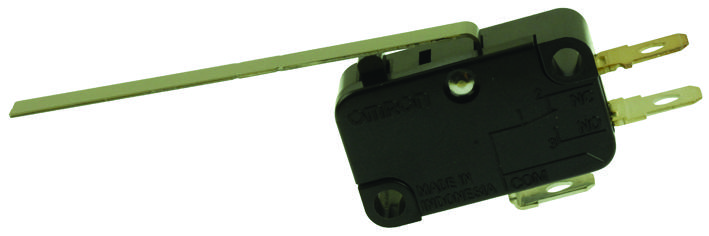

OMRON ELECTRONIC COMPONENTS V1031A4 Safety Switch
The V-103-1A4 is a miniature safety interlock switch with a long hinge lever actuator and solder terminals, designed for safety and security in industrial environments. It interrupts current when doors open or close, featuring a maximum operating force of 0.34N, and high durability with over 50 million mechanical cycles. It provides excellent insulation resistance of at least 100 megaohms at 500V DC, and an initial contact resistance up to 15 milliohms, rated for 16A or 15A loads, making it suitable for safety applications where reliable operation is critical.
OMRON ELECTRONIC COMPONENTS V1031A4 Safety Switch Specifications:
- Switch Type: SPDT (Single Pole Double Throw)
- Actuator: Long hinge lever
- Terminals: Solder terminals
- Contact Material: Silver alloy rivet contacts
- Maximum Operating Force: 0.34N
- Contact Resistance: Up to 15 milliohms
- Insulation Resistance: ≥100 megaohms at 500V DC
- Rated Current: 16A at 250VAC, 15A at 250VAC
- Durability: Over 50 million mechanical operations, 300,000 electrical operations
- Protection Rating: IP40
- Contact Gap: 1mm
- Material: Durably constructed for industrial use
- Operating Temperature: -25°C to 105°C
- Standards: UL (UL1054)/CSA (CSA C22.2 No.55)
Buy the Buy Omron V Series V1031A4 Part Number V1031A4 Online
Purchase the Omron V Series V1031A4 safety switch online today and enhance your safety systems with a highly durable, reliable, and high-performance interlock switch. Featuring a long hinge lever actuator and solder terminals, this switch offers excellent durability with over 50 million mechanical cycles and maintains high insulation resistance. It is rated for 16A/15A loads, suitable for critical safety applications such as door interlocks, ensuring secure operation and peace of mind for your industrial projects. Get yours now for dependable safety performance.
Order your Omron Series V1031A4 safety switch today with long hinge lever for dependable industrial safety and reliable current interruption.
Frequently Asked Questions
Where can I buy OMRON ELECTRONIC COMPONENTS V1031A4?
You can click on the BUY or RFQ button to purchase V1031A4 from an authorized OMRON ELECTRONIC COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part V1031A4?
You can download the V1031A4 datasheet or visit the OMRON ELECTRONIC COMPONENTS website for support.
Who is the manufacturer of V1031A4?
OMRON ELECTRONIC COMPONENTS
