OMRON ELECTRONIC COMPONENTS D2HWC203MR Sealed Subminiature Switch
The Sealed Ultra Subminiature Basic Switch offers a compact design with a long stroke for reliable ON/OFF operation, suitable for harsh environments. Made from environmentally friendly, lead-free materials, it features various mounting options, including base, right, or left posts, and a wide range of actuators like pin plungers, hinges, and rollers. Designed to operate efficiently at up to 30 cycles per minute under demanding conditions, it is IEC IP67 rated for water resistance, making it ideal for industrial automation and control applications requiring precise, durable switching in tight spaces.
OMRON ELECTRONIC COMPONENTS D2HWC203MR Sealed Subminiature Switch Specifications:
- Operating Speed: 1mm to 500 mm/s (pin plunger models)
- Operating Frequency: 30 operations/min max.
- Ingress Protection: IEC IP67 (excluding terminal models)
- Dielectric Strength: 600 VAC between terminals, 1500 VAC between metal parts and ground
- Operating Temperature: -40°C to 85°C
- Weight: Approx. 0.7 g (pin plunger models with terminals)
- Contact Resistance: Max. 100 mΩ (molded lead wire models: 150 mΩ)
- Vibration Resistance: 10-55 Hz, 1.5-mm double amplitude
- Shock Resistance: Max 100 G (destruction), Max 30 G (malfunction)
- Durability: Mechanical 1,000,000 operations, Electrical 100,000 operations
- Rated Voltage & Current: 125 VAC 0.1A, 12 VDC 2A, 24 VDC 1A, 42 VDC 0.5A
- Contact Forms: SPDT, SPST-NC, SPST-NO
- Terminals: Straight PCB, angled PCB, solder, molded lead wires
- Material: Gold alloy contacts, environment-friendly plastic

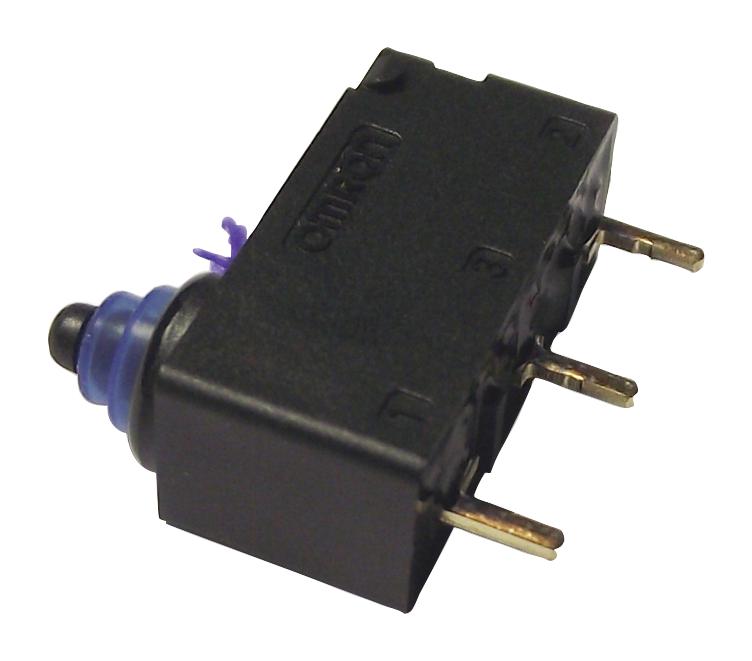

Buy the Omron Series D2HW Sealed Ultra Subminiature Switch: D2HWC203MR
Experience the durability and compact design of the Omron D2HWC203MR Sealed Subminiature Switch, ideal for tight spaces and harsh environments. Featuring long stroke action, multiple actuator options, and IEC IP67 water resistance, it provides reliable ON/OFF switching in industrial automation, machinery, and control systems. Easy to install with versatile mounting options, it supports high cycle life, ensuring performance in demanding applications. Purchase online today and ensure your systems operate with precision and confidence under any condition.
Buy Omron D2HWC203MR now and experience unmatched reliability, compact size, and water resistance for demanding industrial environments.
Frequently Asked Questions
Where can I buy OMRON ELECTRONIC COMPONENTS D2HWC203MR?
You can click on the BUY or RFQ button to purchase D2HWC203MR from an authorized OMRON ELECTRONIC COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part D2HWC203MR?
You can download the D2HWC203MR datasheet or visit the OMRON ELECTRONIC COMPONENTS website for support.
Who is the manufacturer of D2HWC203MR?
OMRON ELECTRONIC COMPONENTS
