OMRON ELECTRONIC COMPONENTS XF3M108151B FPC/FFC Connector
The Rotary Backlock Connector offers high reliability and ease of use for FPC and FFC cable connections. Available with 0.5-mm or 1.0-mm pitch, dual-sided or upper-sided contacts, and gold or tin plating, these connectors suit applications requiring secure, efficient FPC/FFC wiring. Designed to accommodate 0.3 mm thick FPC/FFC, they meet halogen-free and RoHS standards, ensuring safety and environmental compliance. The connectors feature robust construction, are RoHS and halogen free, and provide reliable locking with a sure lock feel, making assembly and maintenance straightforward and dependable.
OMRON ELECTRONIC COMPONENTS XF3M108151B FPC/FFC Connector Specifications:
- Pitch options: 0.5 mm or 1.0 mm
- Contact types: Dual-sided or upper sided
- Contact plating: Gold or Tin-plated (Tin only with dual-sided contacts)
- Number of pins: 80 pins (various models), available in reel packaging
- Applicable FPC/FFC thickness: 0.3 mm
- Housing material: LCP resin (UL94 V-0)
- Rated voltage: 50 V AC/DC
- Rated current: 0.5 A AC/DC
- Contact resistance: 50 mΩ max (at 20 mV DC, 100 mA)
- Insertion durability: 20 times
- Operating temperature: -30°C to 85°C
- Halogen Free: Yes, according to standard
- RoHS compliant: Yes
- Standards: UL, RoHS, Halogen-Free
- Packaging: Reel packaging with various pin counts
- Dimensions: Refer to detailed diagrams for specific models
- Assembly: Requires careful handling, manual soldering conditions 350°C for 3 seconds
- Applicable for: FPC and FFC cables with a thickness of 0.3 mm
- Environmental compliance: RoHS, Halogen-Free

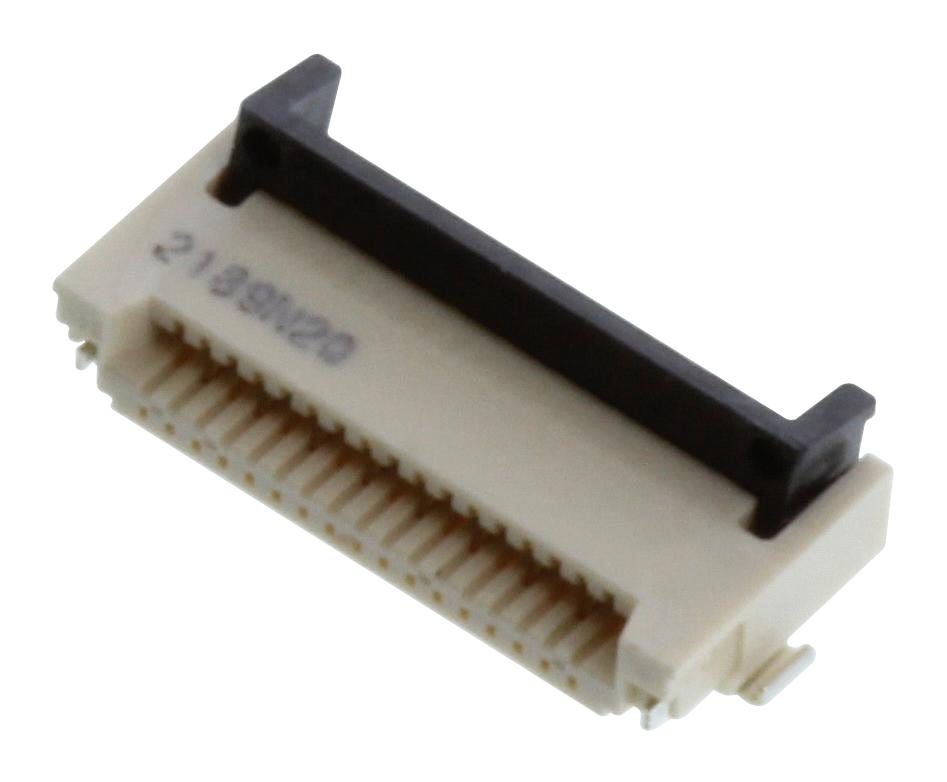

Buy the Omron Series XF3M Rotary Backlock Connector: XF3M108151B
Discover the advanced reliability of the Omron Series XF3M Rotary Backlock Connector. Designed for secure, efficient connections with 0.5 mm and 1.0 mm pitch options, these connectors support 0.3 mm thick FPC/FFC cables. Their halogen-free construction and RoHS compliance ensure safety and environmental standards, making installation straightforward. The connectors feature a robust locking mechanism that guarantees a sure lock feel and reduces part count with dual-sided contact options, ideal for high-density circuitry and dependable performance in diverse electronic applications. Available for quick online purchase, these connectors streamline assembly and maintenance while ensuring lasting durability.
Order your Omron Series XF3M108151B high-reliability FPC/FFC connector today and secure your electronic projects with dependable locking technology.
Frequently Asked Questions
Where can I buy OMRON ELECTRONIC COMPONENTS XF3M108151B?
You can click on the BUY or RFQ button to purchase XF3M108151B from an authorized OMRON ELECTRONIC COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part XF3M108151B?
You can download the XF3M108151B datasheet or visit the OMRON ELECTRONIC COMPONENTS website for support.
Who is the manufacturer of XF3M108151B?
OMRON ELECTRONIC COMPONENTS
