OMRON ELECTRONIC COMPONENTS XH5E68151N Surface-Mount PCB Connector
The XH5 series offers reliable surface-mount connectors with 1.27-mm pitch, suitable for versatile circuit board connections including vertical, horizontal, and stacking. These RoHS-compliant connectors are compatible with reflow mounting, feature various contact counts, and are available in right-angle or straight configurations for board-to-board or cable-to-board applications. They ensure high conductivity, robust mechanical stability, and easy assembly with crimping sockets, making them ideal for automation, manufacturing, and electronic device integration.
OMRON ELECTRONIC COMPONENTS XH5E68151N Surface-Mount PCB Connector Specifications:
- Pitch: 1.27 mm
- Contact numbers: 12 to 80 contacts available
- Contact resistance: 25 mV max at 20 mA
- Rated current: 1A
- Rated voltage: 100 VAC
- Housing material: LCP (UL94 V-0), Black
- Contact material: Copper alloy with gold plating
- Dielectric strength: 500 VAC for 1 min
- Operating temperature: -55°C to +105°C, with no condensation or ingression
- Soldering: Max temperature 260°C for 20-40 seconds, preheating recommended
- Assembly: Compatible with reflow mounting, crimping sockets available
- RoHS compliant
- Cable connection: Flat cables AWG30, 7 twisted wires, with specified specifications
- Dimensions: Vary by model, typical length 10-70 mm depending on configuration
- Strain relief and hold-down options available

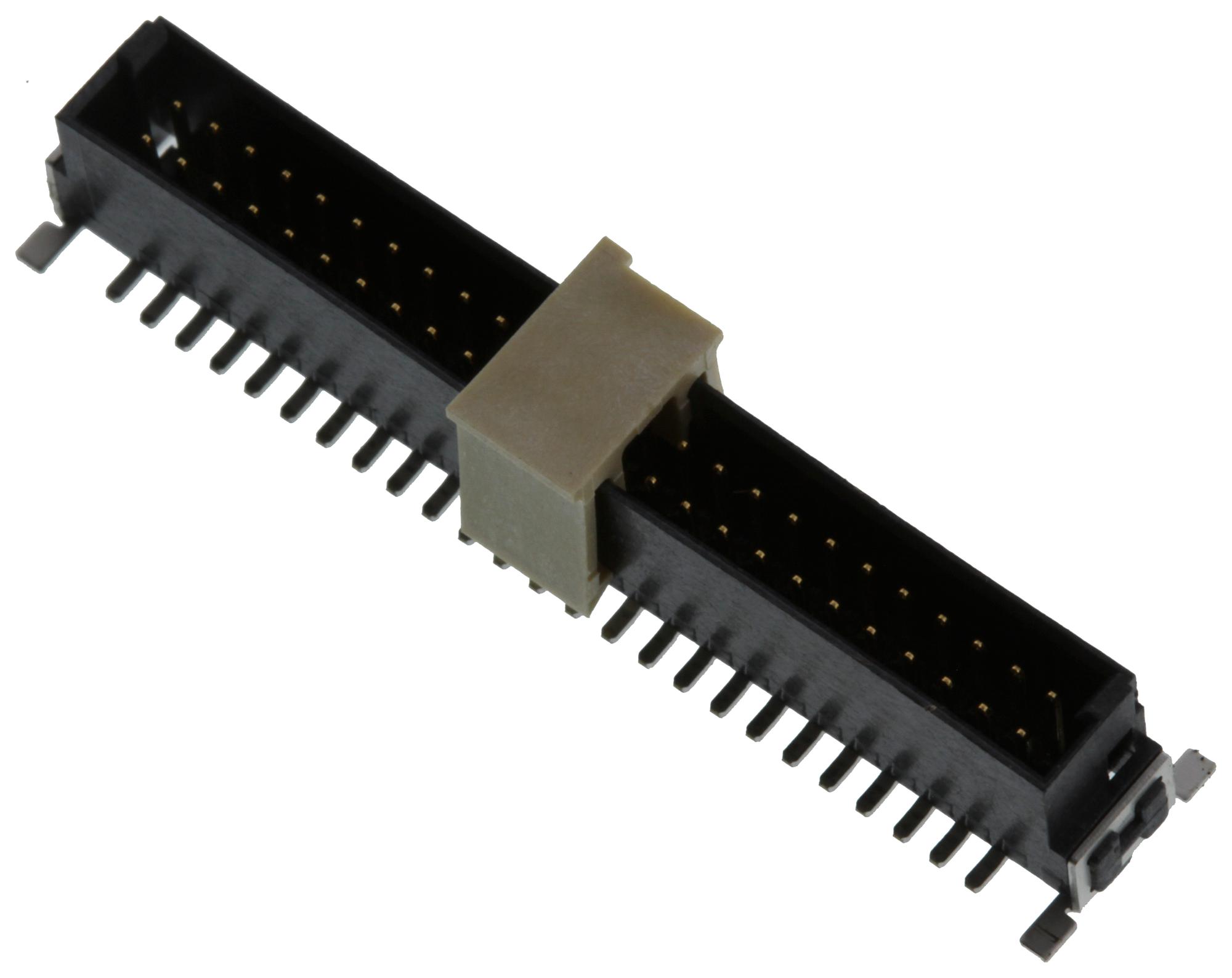

Buy the Omron Series XH5 RoHS Connectors: XH5E68151N
Enhance your electronic assembly with the Omron Series XH5E68151N surface-mount connector, featuring 1.27-mm pitch, multiple contact counts, and RoHS compliance. Designed for easy reflow mounting and robust mechanical stability, these connectors support vertical, horizontal, and stacking board-to-board connections. Available with crimping sockets for quick harness assembly, they are ideal for automation, manufacturing, and electronic device integrations. Ensure durable, high-quality connectivity in your projects — buy online now for reliable performance.
Order your Omron Series XH5E68151N connectors today and ensure reliable PCB connections with versatile configurations for your electronic projects.
Frequently Asked Questions
Where can I buy OMRON ELECTRONIC COMPONENTS XH5E68151N?
You can click on the BUY or RFQ button to purchase XH5E68151N from an authorized OMRON ELECTRONIC COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part XH5E68151N?
You can download the XH5E68151N datasheet or visit the OMRON ELECTRONIC COMPONENTS website for support.
Who is the manufacturer of XH5E68151N?
OMRON ELECTRONIC COMPONENTS
