OMRON ELECTRONIC COMPONENTS XH5A5015N SMT Connector
The XH5-N series is a versatile SMT connector designed for board-to-board and board-to-cable connections with a 1.27-mm pitch. These connectors support surface-mount technology (SMT) and through-hole reflow mounting, offering various contact numbers, orientations, and stacking heights for flexible designs. RoHS compliant and capable of handling up to 1A at 100 VAC, they feature copper alloy contacts with gold or tin plating, and are compatible with various wiring configurations including flat cables. Ideal for high-density circuit board applications requiring reliable, automated assembly.
OMRON ELECTRONIC COMPONENTS XH5A5015N SMT Connector Specifications:
- Pitch: 1.27 mm
- Contact Resistance: 25 mV max at 20 mA
- Rated Current: 1A
- Rated Voltage: 100 VAC
- Insulation Resistance: 1000 MΩ min. at 100 VDC
- Dielectric Strength: 500 VAC for 1 min.
- Housing Material: LCP (UL94 V-0), Black
- Contact Material: Copper alloy with gold or tin plating
- Soldering Conditions: Max. 260°C, within 20-40 seconds
- Operating Temperature Range: -20°C to +105°C
- Applicable Wire: AWG30, 7 twisted wires, Copper alloy, Tin-plated
- Cable Specifications: 0.635 mm pitch flat cable, flexible vinyl insulator
- Dimensions: Length varies according to model, typical connector height 6.6mm to 8.1mm
- RoHS compliant, suitable for automated SMT mounting and high-density circuit designs

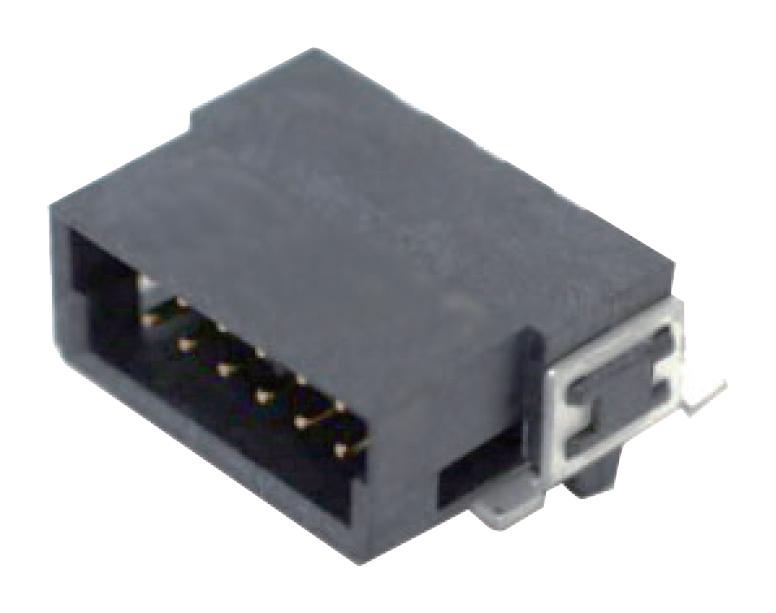

Buy the Buy OMRON XH5-N Part Number XH5A5015N Online
Enhance your electronic assembly with the OMRON SMT Connector series featuring 1.27-mm pitch, RoHS compliance, and a range of contact and orientation options. Designed for surface-mount technology, these connectors support automated high-speed mounting, ensuring stable, reliable connections on dense circuit boards. With rated currents up to 1A and excellent insulation resistance, they are ideal for various electronic devices. Purchase online today to secure high-quality, versatile connectors that simplify assembly and boost your product’s performance.
Buy OMRON XH5A5015N now and experience unmatched reliability and high-density connectivity for your electronic applications.
