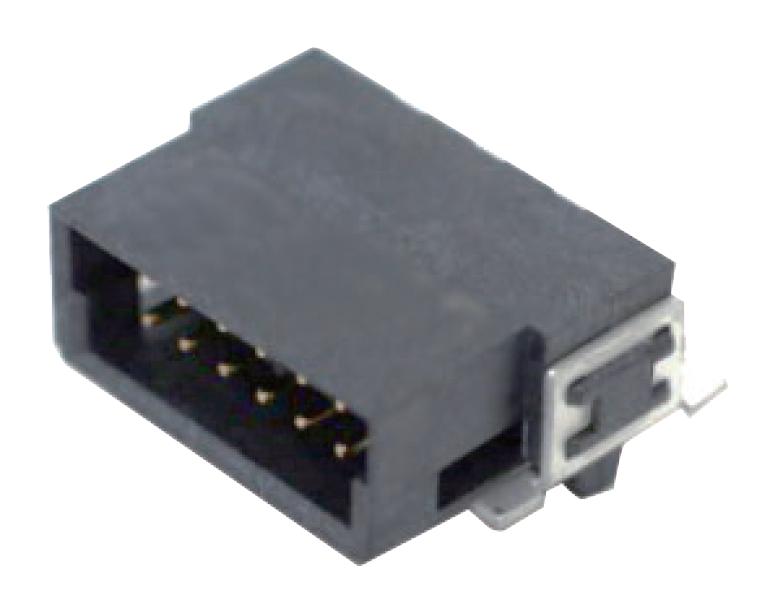

OMRON ELECTRONIC COMPONENTS XH5A8015N Surface Mount Connectors
The XH5-N series comprises reliable surface mount connectors with a 1.27-mm pitch, suitable for board-to-board and cable connections in industrial electronic applications. These RoHS-compliant connectors support various mounting configurations, including right-angle, straight, and stacking types, with multiple contact counts from 12 to 80. Designed for reflow mounting, they feature copper alloy contacts, gold plating for conductivity, and insulation resistance of 1000 MΩ. Ideal for automation, these connectors ensure secure connections, excellent durability, and are compatible with crimping sockets and flat cables for flexible assembly.
OMRON ELECTRONIC COMPONENTS XH5A8015N Surface Mount Connectors Specifications:
- Pitch: 1.27 mm
- Contact Types: Plug, Socket, Right-angle, Straight, Stacking
- Contact Count: 12, 20, 26, 32, 40, 50, 68, 80
- Housing Material: LCP (UL94 V-0)
- Contact Material: Copper alloy, gold-plated
- Rated Current: 1A
- Rated Voltage: 100 VAC
- Insulation Resistance: 1000 MΩ min. at 100 VDC
- Dielectric Strength: 500 VAC for 1 min
- Operating Temperature Range: -55°C to +105°C
- Soldering Conditions: Max 260°C, 20-40s reflow
- RoHS Compliant, conforming to certification standards
- Compatible with crimping sockets and flat cables, including specified AWG30 type
- Dimensions vary by model, with specific stacking heights and contact configurations
