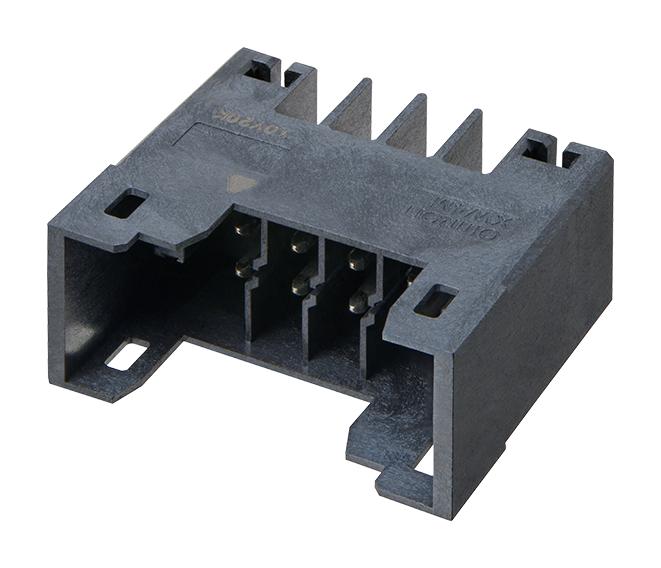

OMRON ELECTRONIC COMPONENTS XW4M08D2H1DA PCB Connector
The product is a 3.5mm-pitch push-in terminal block connector designed for efficient PCB wiring, inspection, and maintenance. It features easy insertion and removal, high contact reliability, and compatibility with reflow mounting. The socket and plug types are available in straight and right-angle configurations with tin or gold plating. Suitable for solid and stranded wire connections, it meets UL and RoHS standards, with rated voltages of up to 300V and currents up to 160V. Its durable materials include UL94 V-0 rated plastics and copper alloys, with a temperature range from -40°C to +100°C, ensuring reliable performance in various industrial environments.
OMRON ELECTRONIC COMPONENTS XW4M08D2H1DA PCB Connector Specifications:
- Pitch: 3.5mm
- Rated Voltage: 300V
- Rated Current: 160V
- Temperature Range: -40°C to +100°C
- Housing Material: UL94 V-0 rated LCP and PA plastics
- Contact Material: Copper alloy with tin or gold plating
- Wire Cross Section: Solid and stranded wire 0.2mm² to 1.5mm²
- Stripping Length: 5mm
- Leg Length (Straight): 16.9 mm to 87.9 mm
- Leg Length (Right-angle): 35 mm to 66.5 mm
- Ingress Protection: Suitable for reflow soldering, UL and RoHS compliant
- Mating Temperature: -5°C to 40°C
- Mounting Method: PCB through-hole, reflow compatible
- Durability: Insertion/removal cycles of 100 times
- Standards: UL, RoHS compliant
Buy the Omron Series PCB Connectors: 3.5mm-Pitch Push-in Terminal Block XW4M08D2H1DA
Order the Omron XW4M08D2H1DA PCB connector online today and enjoy easy wiring, high contact reliability, and full compliance with UL and RoHS standards. Perfect for efficient PCB assembly, inspection, and maintenance in industrial environments. Its push-in mechanism ensures secure, vibration-resistant connections for solid and stranded wires up to 1.5mm², with a temperature range from -40°C to +100°C. Designed for reflow mounting and long-lasting durability, this connector is essential for professional electronic and control system applications.
Buy Omron XW4M08D2H1DA now and experience unmatched reliability and performance with durable, easy-to-use PCB connectors for industrial wiring.
Frequently Asked Questions
Where can I buy OMRON ELECTRONIC COMPONENTS XW4M08D2H1DA?
You can click on the BUY or RFQ button to purchase XW4M08D2H1DA from an authorized OMRON ELECTRONIC COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part XW4M08D2H1DA?
You can download the XW4M08D2H1DA datasheet or visit the OMRON ELECTRONIC COMPONENTS website for support.
Who is the manufacturer of XW4M08D2H1DA?
OMRON ELECTRONIC COMPONENTS
