OMRON ELECTRONIC COMPONENTS XH5E68152N SMT Connector
The XH5-N series consists of high-quality SMT connectors with a 1.27-mm pitch, suitable for connecting circuit boards both vertically and horizontally. These include straight and right-angle socket and plug types, available with various contact counts from 12 to 80. Designed for reflow mounting, they feature RoHS compliance, robust materials like copper alloy, and gold or tin plating for durability. These connectors ensure reliable electrical connections, are easy to install, and are suited for industrial automation, electronic devices, and manufacturing applications, supporting flexible design and excellent mechanical stability.
OMRON ELECTRONIC COMPONENTS XH5E68152N SMT Connector Specifications:
- Pitch: 1.27 mm
- Contact positions: 12 to 80 contacts
- Housing material: LCP (UL94 V-0), Black
- Cover material: PBT (UL94 V-0), Black
- Rated current: 1A
- Rated voltage: 100 VAC
- Contact resistance: Max 20 mΩ at 25 mA
- Insulation resistance: Min 1000 MΩ at 100 VDC
- Dielectric strength: 500 VAC for 1 minute
- Insertion durability: 500 cycles
- Operating temperature: -55°C to +105°C
- RoHS compliant
- Soldering: Max 260°C within 20-40 seconds
- Material: Copper alloy, gold or tin plated
- Applicable wire: AWG30, 7 twisted wires

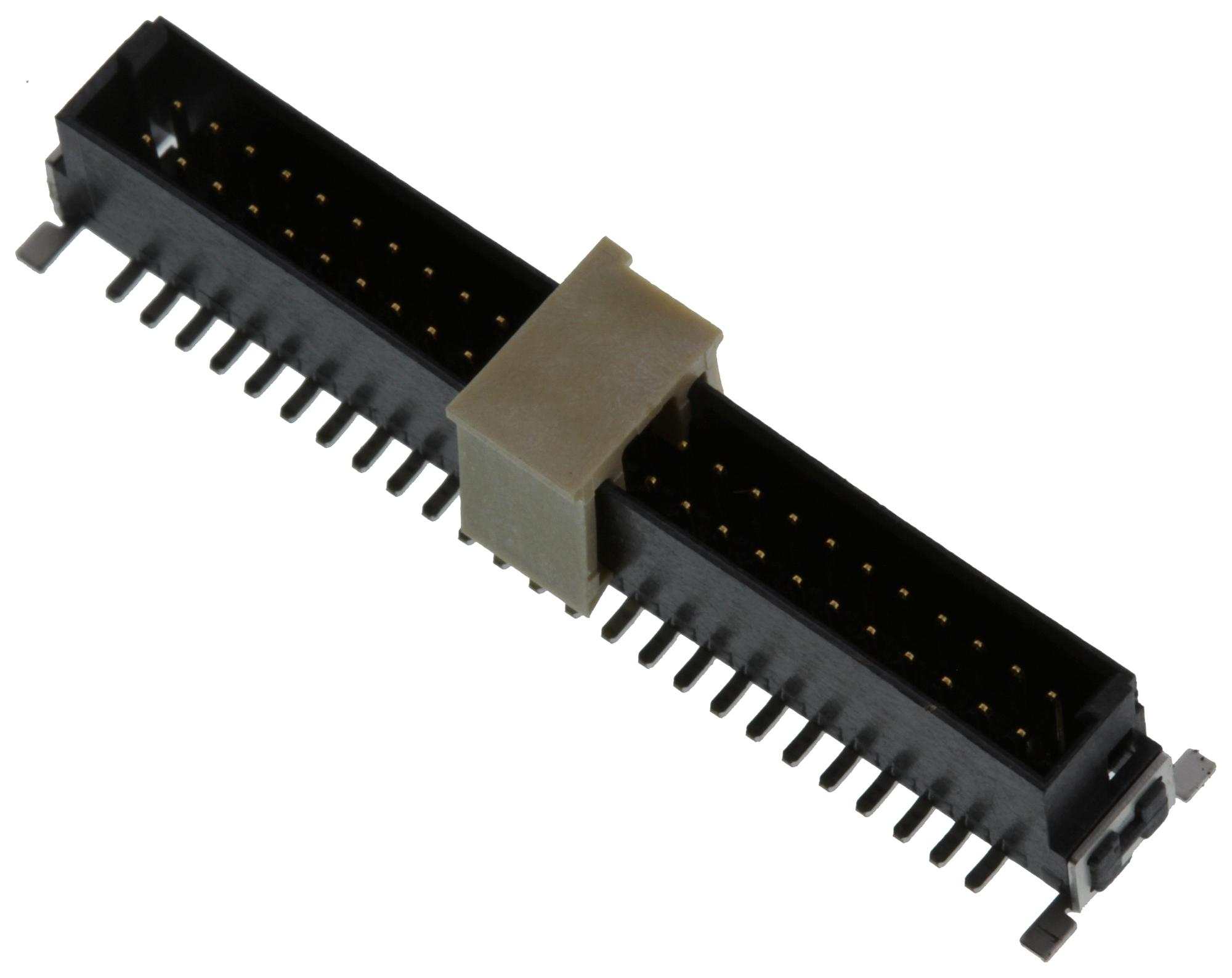

Buy the Omron Series XH5E68152N SMT Connector: XH5E68152N
Enhance your electronic assembly with the high-quality Omron SMT connector. Featuring a 1.27-mm pitch, robust materials, and RoHS compliance, it guarantees reliable electrical connections in a variety of industrial and electronic applications. Easy to install with reflow mounting capability, these connectors support flexible design options with multiple contact counts and orientations. Invest in trusted quality to ensure long-term durability, excellent performance, and seamless integration into your manufacturing process. Buy online today for efficient, dependable circuit board connections.
Buy Omron XH5-N connectors now and experience unmatched reliability and performance in your electronic and industrial projects.
