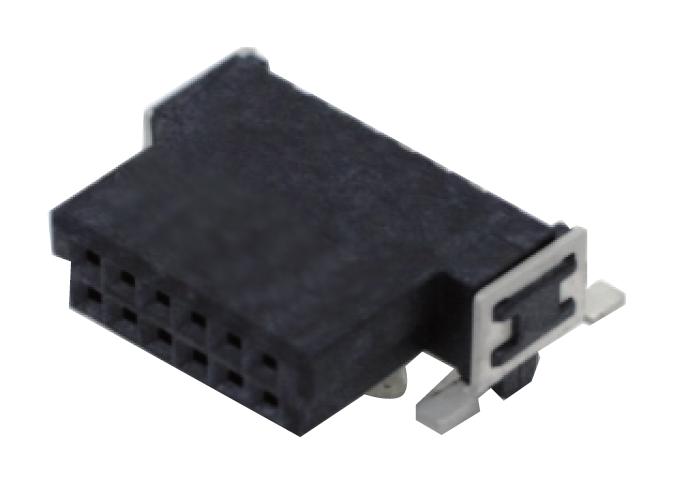

OMRON ELECTRONIC COMPONENTS XH5F2615N SMT Connectors
These SMT connectors with a 1.27-mm pitch are designed for flexible circuit board connections, including board-to-board and board-to-cable setups. They support surface-mount technology for high-volume automation, offering vertical, horizontal, and stacking connection options. Constructed with UL94 V-0 rated materials, these RoHS-compliant connectors provide reliable electrical performance with rated currents of 1A and voltages up to 100 VAC. Suitable for various PCB assembly processes, they feature durable gold-plated contacts, precise mounting bosses, and optional strain relief for enhanced stability and ease of installation.
OMRON ELECTRONIC COMPONENTS XH5F2615N SMT Connectors Specifications:
- Pitch: 1.27 mm
- Rated current: 1 A
- Rated voltage: 100 VAC
- Contact resistance: 25 mΩ max
- Contact material: Copper alloy/gold plated
- Housing material: LCP (UL94 V-0)
- Cover material: PBT (UL94 V-0)
- Insulation resistance: 1000 MΩ min. at 100 VDC
- Dielectric strength: 500 VAC for 1 min
- Temperature range: -55°C to +105°C
- Peak soldering temperature: 260°C within 20-40 seconds
- Compliance: RoHS
- Applicable wire: AWG30 (7/0.1) tin-plated copper wire
- Cable length options: Up to 7000 mm
- Mounting types: SMT, hold-down, THR
- Durability: 500 mating cycles
Buy the Omron Series XH5F2615N SMT Connectors: 1.27-mm Pitch
Purchase Omron SMT connectors online for high-quality, reliable PCB connections in automated industrial environments. Designed with precise 1.27-mm pitch and RoHS compliance, these connectors ensure stable electrical performance with rated currents of 1A and voltages up to 100 VAC. Suitable for vertical, horizontal, and stacking configurations, they feature durable gold-plated contacts, UL94 V-0 rated housing materials, and optional strain relief for enhanced mechanical stability. Order now to secure efficiently assembled, long-lasting circuit connections.
Get Omron XH5-N connectors today—built for precision, reliable electrical connections, and long-lasting durability in automation systems.
Frequently Asked Questions
Where can I buy OMRON ELECTRONIC COMPONENTS XH5F2615N?
You can click on the BUY or RFQ button to purchase XH5F2615N from an authorized OMRON ELECTRONIC COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part XH5F2615N?
You can download the XH5F2615N datasheet or visit the OMRON ELECTRONIC COMPONENTS website for support.
Who is the manufacturer of XH5F2615N?
OMRON ELECTRONIC COMPONENTS
