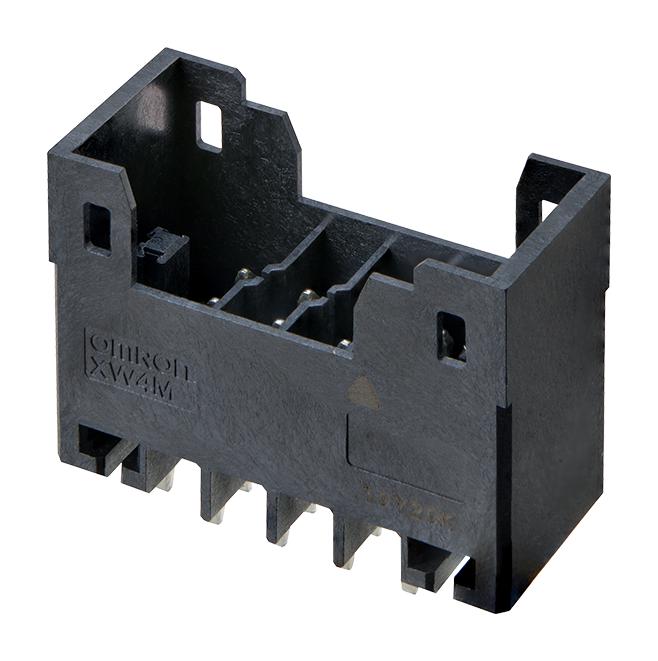

OMRON ELECTRONIC COMPONENTS XW4M32D2V1DA Terminal Block
This product is a 3.5mm pitch push-in terminal block designed for PCB connections, enhancing wiring efficiency with easy insertion and high contact reliability. It supports reflow mounting and complies with UL and RoHS standards, suitable for signal and power applications in industrial automation. The terminal block features straight and right-angle terminations, various pin counts, and compatible wire ranges from 0.2 mm² to 1.5 mm². Made from durable materials including UL94 V-0 rated plastics and copper alloys, it offers excellent electrical performance and is easy to install and maintain.
OMRON ELECTRONIC COMPONENTS XW4M32D2V1DA Terminal Block Specifications:
- Pitch: 3.5mm
- Application: PCB wiring connector
- Material: UL94 V-0 rated LCP and PA, Copper alloy contacts
- Rated voltage: 300V
- Rated current: 5A
- Wire range: 0.2mm² to 1.5mm² (stranded wire), 0.2mm² to 0.75mm² (ferrule with sleeve)
- Cross section: Stranded wire 0.2mm² to 1.5mm²
- Cross section with ferrule: 0.2mm² to 0.75mm²
- Stripping length: 5 mm
- Temperature range: -40°C to +100°C
- Insertion cycles: 100 times
- Compliance: UL (File No. E245101), RoHS
- Standards: IEC 60947-7-4
- Housing: UL94 V-0 rated plastic, copper alloy contacts, stainless steel spring
- Dimensions vary based on model, typically around 16.9mm to 87.9mm length, with pin counts from 2 to 40
Buy the Buy Omron 3.5mm pitch Push-in Terminal Block Part Number XW4M32D2V1DA Online
Purchase the Omron terminal block XW4M32D2V1DA online today to ensure seamless PCB wiring with excellent contact reliability, superior build quality, and compliance with safety standards. This high-performance connector supports easy insertion and removal, making maintenance and assembly efficient. Its compatibility with reflow mounting and a broad range of wire sizes ensures versatile use in industrial automation, electronics, and control panels. Order now and benefit from rapid delivery and exceptional technical support to meet your project needs.
Buy Omron XW4M32D2V1DA now and experience unmatched reliability and performance in PCB wiring applications.
Frequently Asked Questions
Where can I buy OMRON ELECTRONIC COMPONENTS XW4M32D2V1DA?
You can click on the BUY or RFQ button to purchase XW4M32D2V1DA from an authorized OMRON ELECTRONIC COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part XW4M32D2V1DA?
You can download the XW4M32D2V1DA datasheet or visit the OMRON ELECTRONIC COMPONENTS website for support.
Who is the manufacturer of XW4M32D2V1DA?
OMRON ELECTRONIC COMPONENTS
