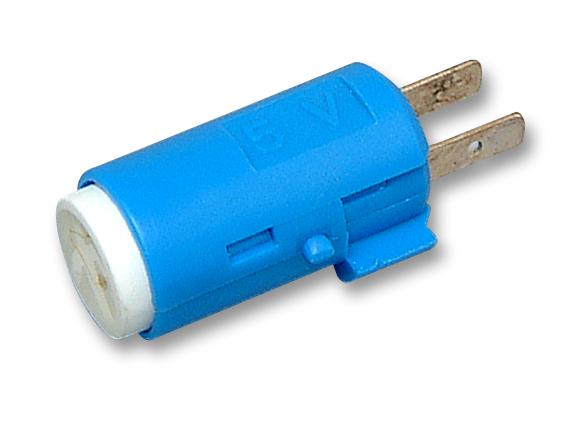

OMRON A1612DA Pushbutton Switch
The A16-P pushbutton switch is a cylindrical, detachable, lighted or non-lighted switch with PCB terminals, designed for easy panel and PCB mounting. It features a high heat resistant resin lever allowing dip soldering, making installation straightforward. Suitable for various automation applications, it offers a compact profile with a 16 mm diameter, and includes models with IP40 and IP66 ratings for diverse environmental conditions. The switch supports momentary and alternate operations, with certifications for UL and CSA standards, providing reliable, long-lasting performance in industrial control systems.
OMRON A1612DA Pushbutton Switch Specifications:
- Diameter: 16 mm
- Operation: Momentary and alternate models available
- Rated Voltage: 5 VDC, 12 VAC/VDC, 24 VAC/VDC
- Lighting: Lighted and non-lighted versions with LED options
- Mechanical durability: 2,000,000 operations min.
- Electrical ratings: 5 A at 125 VAC, 3 A at 250 VAC, 3 A at 30 VDC
- Contact Resistance: Max. 100 mΩ (initial)
- Insulation Resistance: Min. 100 MΩ at 500 VDC
- Dielectric Strength: 2,000 VAC between terminals and ground
- Operating Temperature: -10°C to +55°C
- Vibration Resistance: Malfunction within 1 ms at 10-55 Hz, 1.5 mm amplitude
- Shock Resistance: Malfunction within 1 ms at 500 m/s²
- Certification: UL, cUL, EN, GB standards
- Protection Class: IP40 with PCB terminals, IP66 with sealing
- Mounting Hole Diameter: 16 mm, panel thickness 0.5–3.2 mm
- Design: Cylindrical, detachable, with high heat resistant resin lever for dip soldering
- Compliance: RoHS
Buy the Buy Omron A16-P Part Number A1612DA Online
Secure your automation needs by purchasing the Omron A16-P pushbutton switch online. Designed for durability and ease of installation, this switch offers high performance with various lighting options and robust ratings. Ideal for industrial machinery, control panels, and automation projects, it ensures reliability with UL and CSA certifications. Whether you need momentary or alternate operation models, buy online today to enjoy fast delivery, competitive pricing, and excellent customer support, making it the perfect choice for your control system applications.
Buy Omron A16-P switch now and experience unmatched reliability and performance in industrial control and automation systems.
Frequently Asked Questions
Where can I buy OMRON A1612DA?
You can click on the BUY or RFQ button to purchase A1612DA from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part A1612DA?
You can download the A1612DA datasheet or visit the OMRON website for support.
Who is the manufacturer of A1612DA?
OMRON
