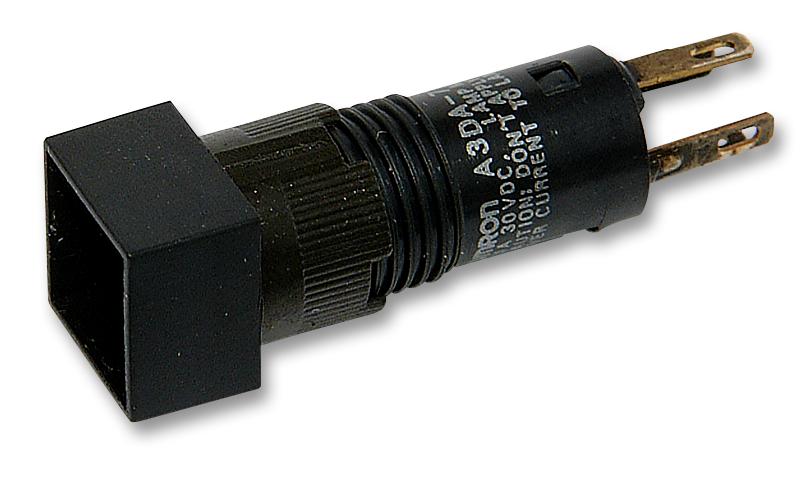

OMRON A3DA7111 Lighted Pushbutton Switch
The lighted pushbutton switch features a cylindrical 8-mm diameter body, designed for easy panel mounting with screw or socket options. It offers excellent illumination with surface brightness and combines miniature size with high operating sensitivity, suitable for various control applications. The switch operates with LED illumination in multiple colors, including red, yellow, green, and white, and includes models with different shapes like rectangular, square, and round. It is RoHS compliant, suitable for panel installation, and includes safety features such as IP40 protection. External resistors are required for LED operation, and mounting should be performed with safety precautions to avoid electrical hazards.
OMRON A3DA7111 Lighted Pushbutton Switch Specifications:
- Contact Rating: 30 VDC, 0.1 A (minimum load 5 VDC, 1 mA)
- LED Polarity: Correct wiring required; built-in LED without limiting resistor, external resistor necessary
- Operating Force: Max 245 N, Release Force: Min 0.196 N
- Total Travel: Approx 3.5 mm, Pretravel: Max 2.5 mm, Lock Travel: Min 0.5 mm
- Operating Temperature: -10°C to +55°C, Humidity: 35% to 85% RH, Storage Temperature: -25°C to +65°C
- Degree of Protection: IEC IP40, Power supply voltage: 5V to 24V DC, Color options: Red, Yellow, Green, White
- Mechanical durability: 100,000 operations minimum for momentary, 100,000 for alternate operation
- Dimensions: Rectangular A3DJ: cutout 16 x 12.4 mm, height varies; Square A3DA: cutout 10 x 10 mm; Round A3DT: diameter 8 mm
- Mounting: Panel mounting with nut, socket, or mounting clip; suitable for panels 1.0 to 3.2 mm thick
- Weight: Approx 3 g per switch, including LED, suitable for control panel integration
Buy the OMRON Series A3D Lighted Pushbutton Switch: A3DA7111
Purchase the OMRON A3DA7111 lighted pushbutton switch today and benefit from easy installation, robust construction, and reliable LED illumination. Perfect for industrial automation, control panels, and safety systems, this switch offers high durability with 100,000+ operation cycles. Its compact cylindrical design ensures easy integration into various panels while providing excellent brightness in multiple colors. Always follow safety instructions during installation and wiring, and enhance your equipment’s control interface with this durable, high-performance switch available online for fast delivery and assured quality.
Buy OMRON A3DA7111 LED pushbutton switch now and experience unmatched reliability and high-quality illumination for your control systems.
Frequently Asked Questions
Where can I buy OMRON A3DA7111?
You can click on the BUY or RFQ button to purchase A3DA7111 from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part A3DA7111?
You can download the A3DA7111 datasheet or visit the OMRON website for support.
Who is the manufacturer of A3DA7111?
OMRON
