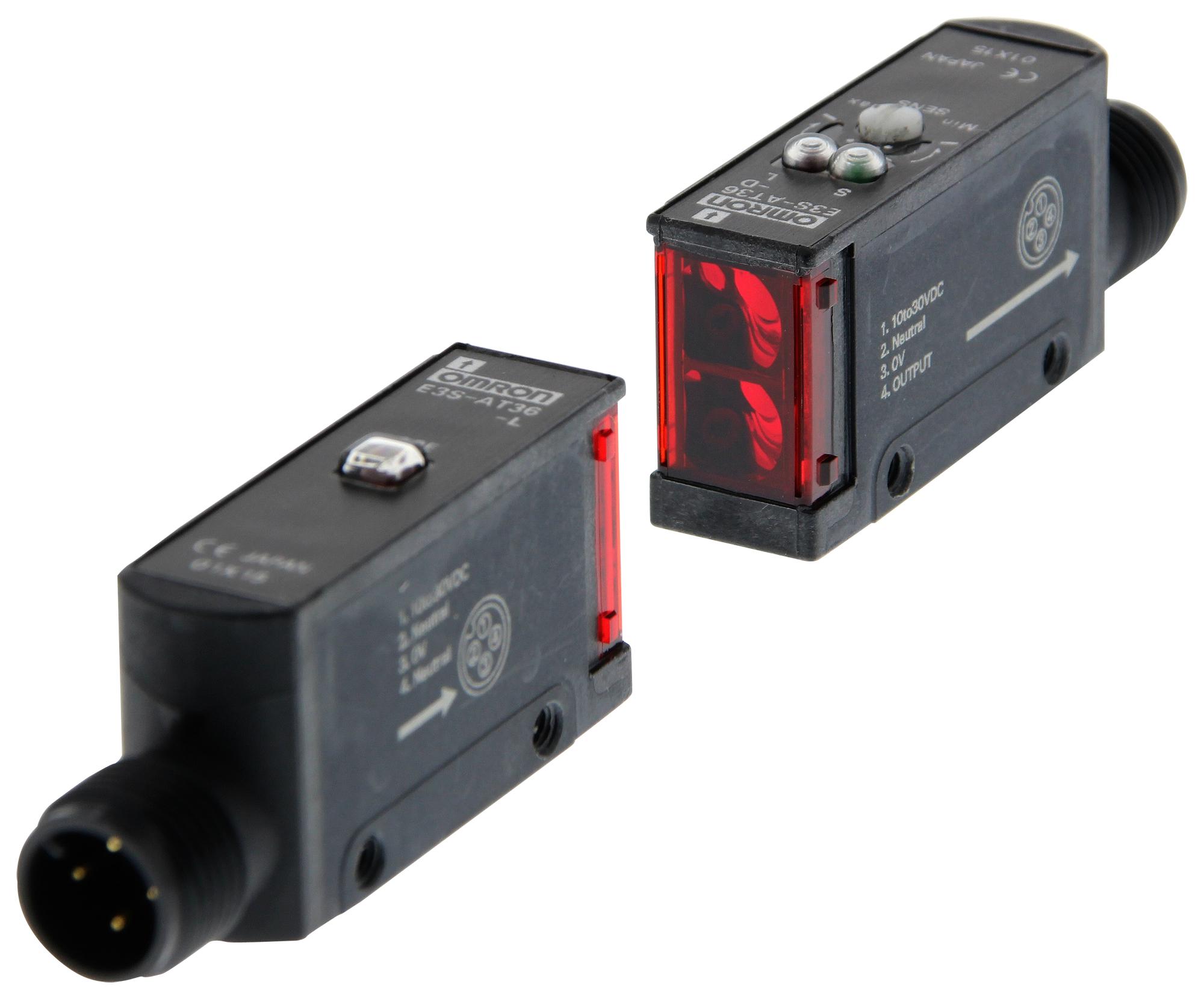

OMRON E3SAT36 Industrial Photoelectric Sensor
The E3S-A series by Omron offers versatile, built-in amplifier photoelectric sensors suitable for various sensing modes including through-beam, retroreflective, and diffuse reflective. These sensors feature self-diagnostic functions, external diagnostic input, adjustable sensitivity and OFF-delay timer, and a turbo switch for enhanced detection performance. Available in prewired and connector types, they operate in dark-ON or light-ON modes, with rugged stainless steel mounting brackets and IP67 ratings for robust industrial environments. Ideal for automation, object detection, and material handling applications within industrial automation systems, they provide reliable operation with minimal sensitivity variation and comprehensive protection features.
OMRON E3SAT36 Industrial Photoelectric Sensor Specifications:
- Sensing method: Through-beam, Retroreflective, Diffuse reflective
- Wavelength: 700 nm (red), 880 nm (infrared)
- Operating voltage: 10 to 30 V DC, ripple: 10%
- Current consumption: 40 mA max. (emitter plus approx. 15 mA with turbo), 30 mA max. (receiver)
- Output: Open collector (NPN or PNP), 30 VDC, 100 mA max.
- Response time: 0.5 ms max.
- Sensing distance: 0.1 to 7m (varies with model and reflector)
- Sensitivity adjustment: Two-turn endless adjuster with indicator
- Self-diagnostic: External input, internal resistance diagnostics
- Timer: OFF-delay 0-100 ms, adjustable via control
- Turbo function: Available with turbo switch for brighter spot detection
- Physical: Case Polybutylene terephtalate, Lens Polyallalate, Mounting stainless steel SUS304
- Protection: Load short-circuit, reverse polarity, mutual interference (except some models)
- Enclosure rating: IP67, NEMA 4X
- Weight: 60g (prewired), 11g (connector type)
Buy the Buy Omron E3S-A Part Number E3SAT36 Online
Order the Omron E3S-A photoelectric sensors online today to enhance your automation system. With self-diagnostic capabilities, multiple sensing modes, and adjustable settings, these sensors ensure reliable detection and operational stability. Designed for industrial environments, they feature rugged construction, IP67 protection, and low sensitivity variation. Optimized for object detection, material handling, and automation processes, purchasing online provides quick delivery, technical support, and competitive pricing to keep your operations running smoothly and efficiently.
Buy Omron E3S-A sensor with self-diagnostic and adjustable sensitivity now and experience unmatched reliability, precision, and durability for industrial automation.
Frequently Asked Questions
Where can I buy OMRON E3SAT36?
You can click on the BUY or RFQ button to purchase E3SAT36 from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part E3SAT36?
You can download the E3SAT36 datasheet or visit the OMRON website for support.
Who is the manufacturer of E3SAT36?
OMRON
