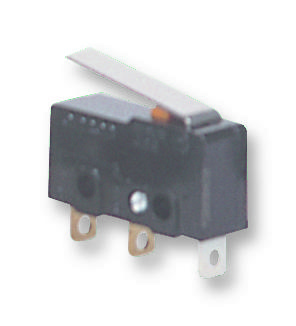

OMRON SS01GLF Micro Switch
The subminiature basic switch offers high reliability and security, with models rated for 0.1A to 10.1A. It features various actuator types including pin plungers, hinge levers, and simulated roller levers, with heat-resistant options up to 120°C. Designed for precise switching, it includes solder and quick-connect terminals, and is suitable for miniature applications requiring stable operation over millions of cycles. With a compact profile, compliant with RoHS standards, this switch ensures durable performance in industrial automation, control systems, and electronic devices.
OMRON SS01GLF Micro Switch Specifications:
- Ratings: 125 VAC 5A, 250 VAC 10A, 30 VDC 0.1A, heat resistance up to 120°C, models include pin plunger, hinge lever, simulated roller lever, with heat-resistant variants.
- Actuator Types: Pin plunger, hinge lever, simulated roller lever, long hinge lever, hinge roller lever, with stainless-steel versions available.
- Terminals: Solder terminals, quick-connect (#110), PCB terminals, designed for easy mounting and reliable connections.
- Dimensions: Compact size suitable for miniature applications, mounting holes 2.2 mm diameter, overall length approximately 23-25 mm depending on model.
- Electrical: Contact resistance below 50 mΩ, dielectric strength 4,500 VAC, insulation resistance 100 MΩ, durability of up to 30 million cycles.
- Operating Force: Ranges from 0.08 N to 1.47 N depending on model, with maximum operating speed of 400 operations per minute under resistive load.
- Standards & Certifications: RoHS compliant, UL and CSA approved models, with degree of protection IEC IP40, proof tracking index 175.
- Environmental: Operating temperature from -55°C to +85°C, ambient humidity up to 85%, vibration and shock resistant as per safety standards.
Buy the Omron SS01GLF – Reliable Micro Switch for Industrial Applications
Enhance your automation and control systems with the Omron Micro Switch. Designed for high durability, multiple actuator options, and a compact form factor, it ensures reliable switching in industrial and electronic applications. With RoHS compliance and certifications including UL and CSA, this switch withstands harsh environments and millions of cycles. Easy to mount with solder, quick-connect, or PCB terminals, it is ideal for precise, stable operation. Purchase online today and upgrade your equipment with the trusted performance of Omron technology.
Buy Omron SS01GLF now and experience unmatched reliability and performance in your control systems.
Frequently Asked Questions
Where can I buy OMRON SS01GLF?
You can click on the BUY or RFQ button to purchase SS01GLF from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part SS01GLF?
You can download the SS01GLF datasheet or visit the OMRON website for support.
Who is the manufacturer of SS01GLF?
OMRON
