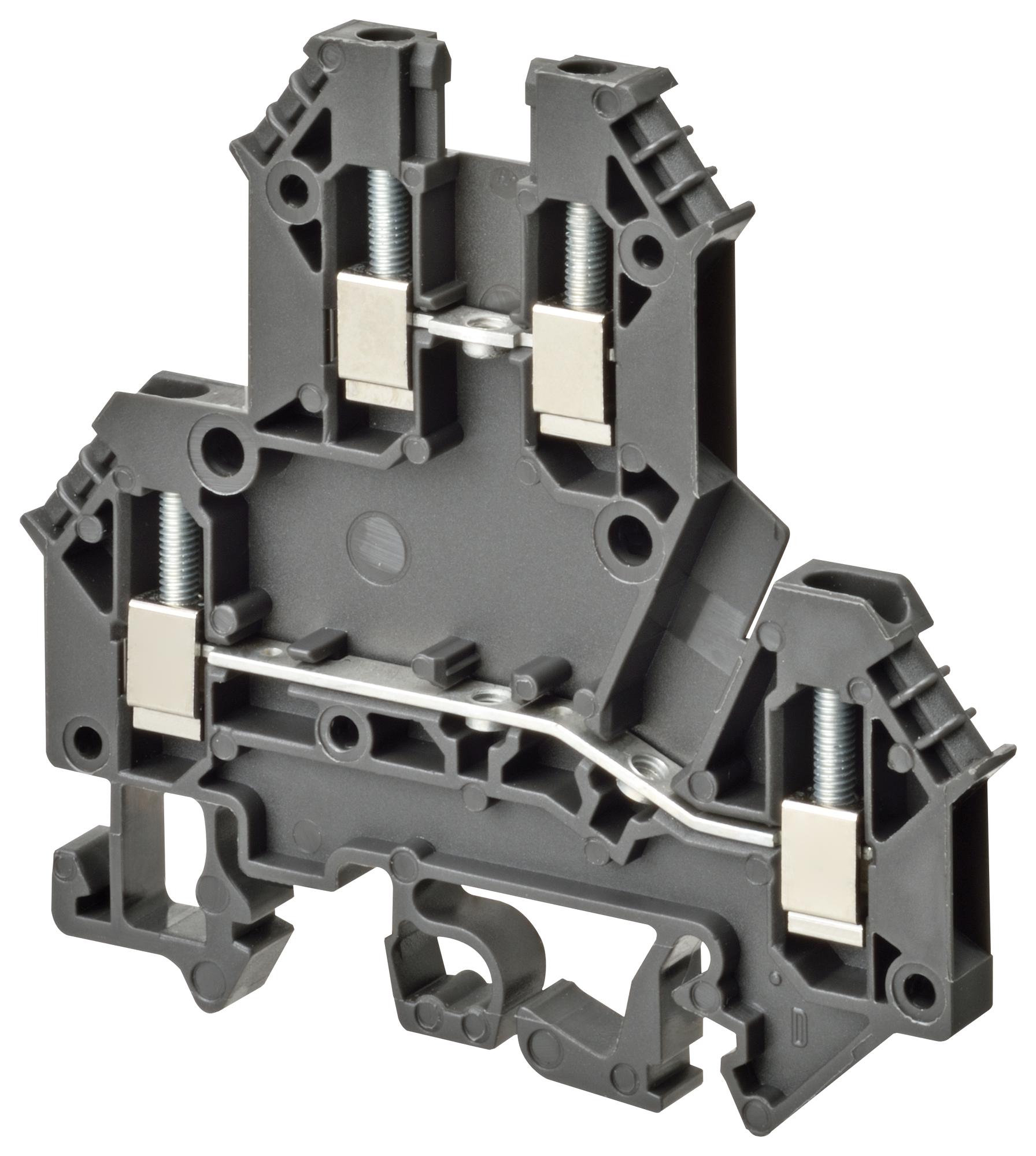

OMRON XW5TS25112 Control Panel Terminal Block
The product is a DIN track terminal block designed for control panels, featuring screw terminals that accommodate a wide range of wire sizes from 2.5 mm² to 150 mm². It includes models with fuse capabilities and disconnect functions, suitable for industrial automation and control wiring. Constructed with insulating materials compliant with UL 94V-0 standards, it ensures safety and durability. The terminal blocks are mounted on DIN rails, offering secure connection, easy wiring, and reliable electrical performance in demanding environments.
OMRON XW5TS25112 Control Panel Terminal Block Specifications:
- Nominal Cross Section: 2.5 mm² to 150 mm²
- Wire Range: AWG 26 to AWG 10 (stranded and solid)
- Maximum Conductor Cross Section: 6 mm² for fine stranded and solid wires
- Rated Voltage: 600V (UL), 800V (IEC)
- Rated Current: 15A to 76A depending on model
- Dimensions vary with model, typically around 6x58 mm to 48x77 mm
- Mounting: DIN rail TH35 and TH3S
- Insulating Material: PA, UL 94V-0 compliant
- Operating Temperature Range: -40°C to +60°C
- Vibration Resistance: 5-150 Hz, 0.964 m/s²
- Shock Resistance: 50 m/s² for 30 ms
- Compatible with fuse sizes 5x20, 5x25, 5x30 mm, 6.3x32 mm
- Tightening Torque: 0.5 Nm
- End Covers and Separator Plates available for specific models
- Sealing and latch features for fuse disconnect models
Buy the OMRON Series XW5TS25112 Control Panel Terminal Block: XW5TS25112
Upgrade your control panel wiring with OMNOMRON’s high-quality terminal blocks. Designed for durability and safety, these screw terminal blocks support wire sizes from 2.5 to 150 mm², offer fuse and disconnect options, and are mounted on DIN rails for easy installation. Constructed with UL 94V-0 materials, they guarantee safe operation in demanding environments. Perfect for industrial automation, control wiring, and electrical distribution. Stock now available for quick online purchase to streamline your projects confidently and efficiently.
Order your OMNOMRON Series XW5T terminal block today and ensure secure, reliable connections for your industrial control systems.
Frequently Asked Questions
Where can I buy OMRON XW5TS25112?
You can click on the BUY or RFQ button to purchase XW5TS25112 from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part XW5TS25112?
You can download the XW5TS25112 datasheet or visit the OMRON website for support.
Who is the manufacturer of XW5TS25112?
OMRON
