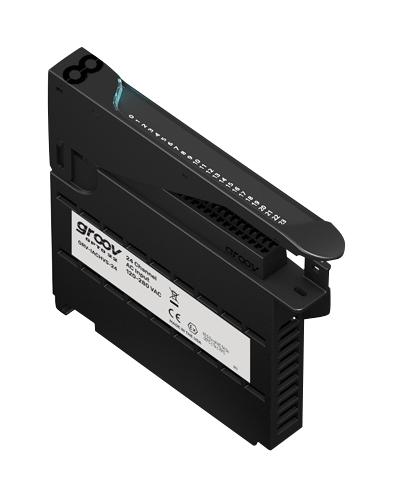

OPTO 22 GRVIACHVS24 24 Channel AC Input Module
The OPTO 22 GRV-IACHVS-24 is a 24-channel AC input module that translates electrical signals from field devices into digital language for computer monitoring and control. It's part of the _groov_ EPIC system and senses status from devices using a 180-280 VAC signal. This module offers a cost-effective solution for applications requiring only on/off status, ideal for industrial automation, machine monitoring, and process control where simple status indication is sufficient.
OPTO 22 GRVIACHVS24 24 Channel AC Input Module Specifications:
- Nominal Input Voltage Range (RMS): 180–280 VAC
- Turn-on Voltage: 180 VAC
- Turn-off Voltage: 100 VAC
- Input Impedance (± 5%): 532 kOhms
- Operating Frequency: 40 Hz to 400 Hz
- Isolation (field-to-logic): 300 VAC, 1500 V Transient
- Number of Channels: 24
- Chassis Power Consumption: 1.0 W
- Wire Size: 28–14 AWG
- Torque, connector screw: 2.5 in-lb (0.28 N-m)
- Torque, hold-down screw: 3.5 in-lb (0.4 N-m)
- Temperature (operating): -20 °C to +70 °C
- Temperature (storage): -40 °C to +85 °C
- Relative Humidity (non-condensing): 5–95%
- Agency Approvals: CE, ATEX(Category 3, Zone 2), RoHS; DFARS; CB Scheme
- Warranty: Lifetime
