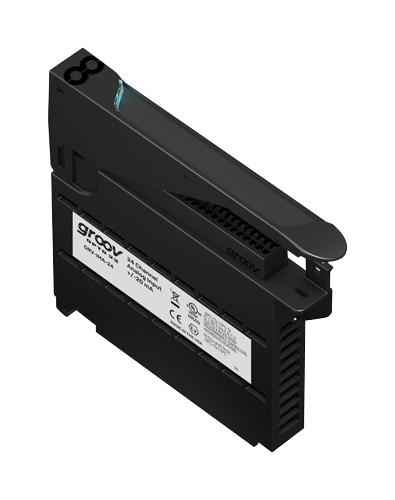

OPTO 22 GRVIMA24 24 Channel Analog Current Input Module
The OPTO 22 GRV-IMA-24 analog current input module is a key component of the _groov_ EPIC system, enabling seamless integration of field devices into digital control networks. This module translates electrical signals from sensors and actuators into a digital format, facilitating real-time monitoring and control in industrial environments. Featuring 24 channels with configurable input ranges and robust isolation, the GRV-IMA-24 is ideal for applications requiring precise and reliable data acquisition in demanding industrial settings. Its hot-swappable design minimizes downtime and simplifies maintenance.
OPTO 22 GRVIMA24 24 Channel Analog Current Input Module Specifications:
- Input Range (per channel): ±20 mA, 0–20 mA, 4–20 mA
- Over-range Limits: ±22 mA
- Resolution: 0.2 μA (20 bits)
- Accuracy: ± 0.1% (± 20 μA)
- Input Voltage Drop nominal (Impedance ±20%): 5.5 V nominal @ 20 mA (275 Ohms)
- Input Filter (hardware): -3 dB at 140 Hz
- Software Data Filtering: SMA: 1 to 32 Readings, Filter Weight: 1 to 406
- Step Input Response Time: 277 ms x SMA value (8.8 s @ 32 SMA, Default SMA = 4)
- Data Freshness / Update: 277 ms
- Analog Data Filtering: -3 dB @ 2.4 Hz / -25 dB @ 60 Hz
- AC/DC Common Mode Rejection: > -120 dB
- Max. Survivable Input: ± 32 V
- Max. Operating Common Mode Voltage: 250 V
- Problem Indications: out of range
- Isolation (field-to-logic): 300 V working, 1500 V transient (1 minute)
- Isolation (channel-to-channel): 300 V between zone A (ch 0-11) and zone B (ch 12-23)
- Number of Channels: 24
- Chassis Power Consumption: 1.0 W
- Wire Size: 28–14 AWG
- Torque, connector screw: 2.5 in-lb (0.28 N-m)
- Torque, hold-down screw: 3.5 in-lb (0.4 N-m)
- Temperature (operating): -20 °C to +70 °C
- Temperature (storage): -40 °C to +85 °C
- Relative Humidity (non-condensing): 5–95%
- Agency Approvals: UL/cUL (Class 1 Div. 2); CE, ATEX (Category 3, Zone 2), RoHS; DFARS; CB Scheme
- Warranty: Lifetime
