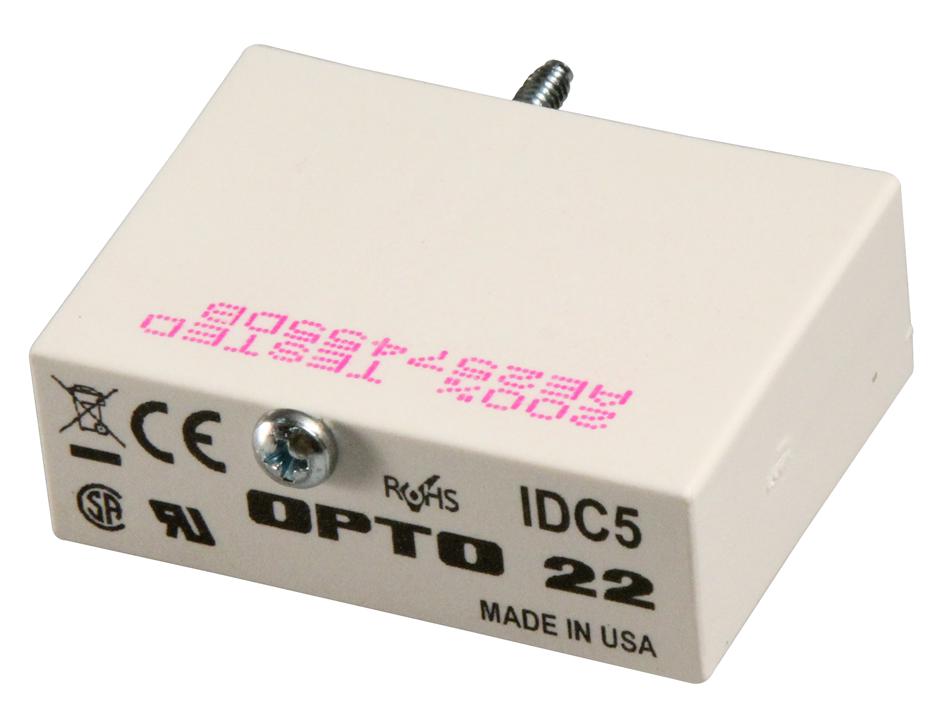

OPTO 22 IDC5 DC Input Module
The IDC5 is a robust DC input module designed for reliable sensing of ON/OFF voltage signals in industrial environments. It features a bridge-rectifier input, allowing it to accept both AC and DC signals, with a maximum transient optical isolation of 4000 volts to protect control systems. The module operates efficiently within a temperature range of -30°C to 70°C, making it ideal for applications such as proximity sensing, limit switches, photoelectric detection, and power monitoring. Its rugged construction ensures durability across various industrial conditions, supporting seamless integration in automation systems.
OPTO 22 IDC5 DC Input Module Specifications:
- Operating Ambient Temperature: -30°C to 70°C
- Isolation, Input-to-Output (Transient): 4000 V
- Output Voltage Drop: 0.4 volts @ 50 mA
- Output Current: 50 mA
- Output Leakage With No Input: 0.1 mA @ 30 VDC
- Input Voltage Range: 2.5-60 VDC or AC/DC options as per model
- Input Current @ Max Line: 6 to 45 mA depending on model
- Turn-on Time: 0.05 to 20 milliseconds
- Turn-off Time: 0.5 to 20 milliseconds
- Nominal Logic Voltage: 5 VDC or 15 VDC depending on model
- Output Supply Voltage Range: 45-6 VDC to 45-6 VDC depending on model
- Physical Dimensions: Typical length 6.4 inches (162 mm), width 1.25 inches (31.8 mm), height 0.9 inches (22.86 mm)
- Mounting: Plug-in module with screw terminals
Buy the Opto 22 Series IDC5 Standard DC Input Module: IDC5
Upgrade your automation setup with the reliable Opto 22 Series IDC5 DC input module. Designed for industrial environments, it provides robust sensing of voltage signals with up to 4000V optical isolation. Its rugged construction ensures durability for continuous operation. Easy to install and compatible with both AC and DC signals, it’s perfect for sensing proximity switches, limit switches, photoelectric sensors, and power status. Optimize your automation system by ordering the IDC5 online today for seamless integration, stability, and dependable operation.
Order your Opto 22 Series IDC5 rugged DC input module today and enhance your industrial sensing and automation systems with reliable performance.
Frequently Asked Questions
Where can I buy OPTO 22 IDC5?
You can click on the BUY or RFQ button to purchase IDC5 from an authorized OPTO 22 distributor.
How do I troubleshoot issues or seek technical support for part IDC5?
You can download the IDC5 datasheet or visit the OPTO 22 website for support.
Who is the manufacturer of IDC5?
OPTO 22
