OPTO 22 OPTOP1STARTERKIT1 Industrial Digital I/O Kit

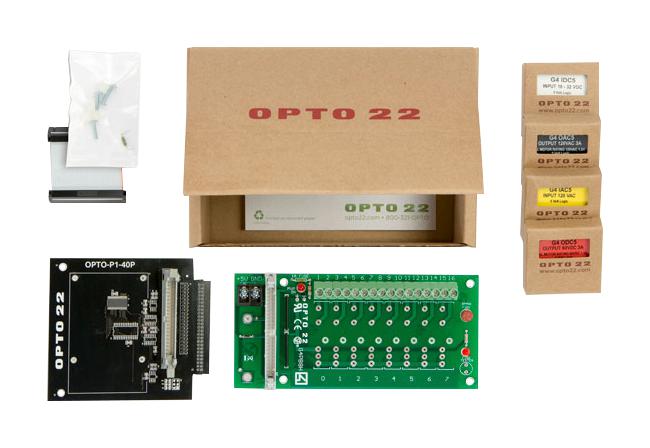

The Digital I/O for Raspberry Pi Starter Kit enables you to easily sense and switch industrial loads using your Raspberry Pi. It features the same durable, industrial-grade Opto 22 G4 input/output modules used in automation applications worldwide for nearly 40 years. The kit includes a Digital I/O Carrier Board, mounting rack, and four popular G4 I/O modules, making it ideal for prototyping, proof of concept, and environments where an industrially hardened controller is not necessary. Simply add your Raspberry Pi and power supply to get started. Code samples are available at developer.opto22.com.
OPTO 22 OPTOP1STARTERKIT1 Industrial Digital I/O Kit Specifications:
- Compatible with any model Raspberry Pi with a 40-pin GPIO header
- Includes Digital I/O Carrier Board, mounting rack, and four G4 I/O modules
- Supports industrial voltage inputs of 90-140 VAC/VDC, 10-32 VDC, and 12-140 VAC outputs
- Includes power supply connection for peripherals with 2.5A to 5A rating
- Supports expansion with up to 4 additional I/O modules
- G4 modules feature rugged design for industrial environments
- Uses negative true logic: 0 is On, 1 is Off for reading/writing
- Includes interface cable, mounting hardware, fuse, and terminal strip
- Free code samples available at developer.opto22.com for programming in Python, Node-RED, and others
- Dimensions and specifications are subject to change, made in the USA
Buy the Opto 22 Series G4 Digital I/O: OPTOP1STARTERKIT1
Purchase the Opto 22 Digital I/O for Raspberry Pi Starter Kit online today and start integrating industrial load sensing and switching into your projects. This rugged, easy-to-use kit includes a durable carrier board, mounting rack, four G4 I/O modules for AC and DC loads, and code samples for quick setup. Perfect for prototyping and proof-of-concept environments, it allows your Raspberry Pi to control and monitor industrial devices like motors and sensors reliably. Built in the USA, supported by free technical support, and guaranteed for life most modules.
Get Opto 22 OPTOP1STARTERKIT1 today—built for industrial sensing, switching, and long-lasting durability.
Frequently Asked Questions
Where can I buy OPTO 22 OPTOP1STARTERKIT1?
You can click on the BUY or RFQ button to purchase OPTOP1STARTERKIT1 from an authorized OPTO 22 distributor.
How do I troubleshoot issues or seek technical support for part OPTOP1STARTERKIT1?
You can download the OPTOP1STARTERKIT1 datasheet or visit the OPTO 22 website for support.
Who is the manufacturer of OPTOP1STARTERKIT1?
OPTO 22
