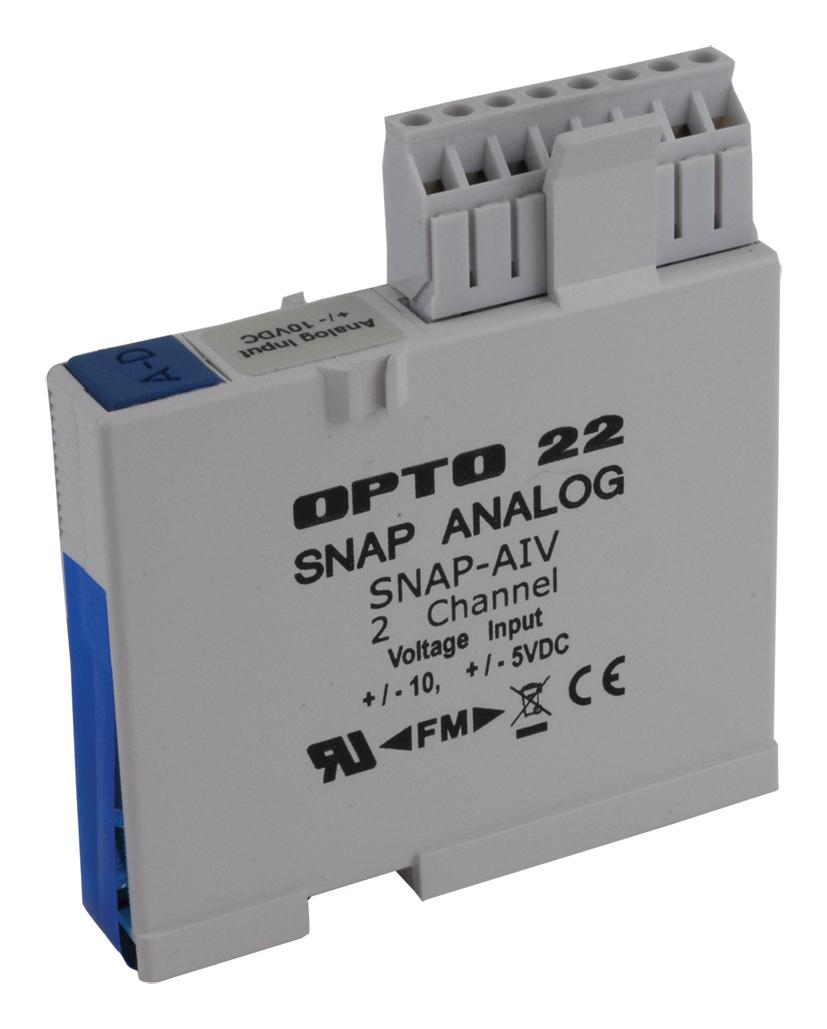

OPTO 22 SNAPAIV Analog Voltage Module
The SNAP-AIV is an analog input module that provides two channels for measuring analog voltages, supporting ranges of -10 to 10 VDC or -5 to 5 VDC. Although the two channels are not isolated from each other, the module features transformer and optical isolation from other modules and devices, ensuring protection and noise immunity. It is factory calibrated for accurate measurements and mounts on a SNAP PAC rack alongside a SNAP PAC controller or rack-mounted controller. Compatible with analog, digital, and serial I/O modules within the same rack, it is suitable for PC-based control systems or as intelligent remote I/O for PLCs, supporting industrial automation and process control applications.
OPTO 22 SNAPAIV Analog Voltage Module Specifications:
- Input Ranges: -10 to 10 VDC, -5 to 5 VDC
- Number of Channels: 2
- Isolation: 1500 V from other circuits
- Input Resistance: 1 MΩ per channel
- Calibration: Factory calibrated
- Mounting: Fits on SNAP PAC rack
- Power Requirements: 5 VDC (+0.15 V) at 190 mA
- Operating Temperature: -20°C to 70°C
- Storage Temperature: -40°C to 85°C
- Wire Size: 22 to 14 AWG
- Agency Approvals: Pending UL, CE
- Warranty: Lifetime
Buy the Buy Opto 22 SNAP-AIV Part Number SNAPAIV Online
Purchase the Opto 22 SNAP-AIV module online today. This two-channel analog voltage input device supports -10 to 10 VDC or -5 to 5 VDC ranges. Factory calibrated for accuracy, it features transformer and optical isolation for noise immunity and protection against ground loops. Mountable on a SNAP PAC rack, it is compatible with various automation controllers and provides reliable, high-performance measurements in industrial automation and process control applications. Perfect for remote I/O and control system integration.
Get Opto 22 SNAP-AIV today—designed for precise voltage measurement and long-lasting industrial application performance.
Frequently Asked Questions
Where can I buy OPTO 22 SNAPAIV?
You can click on the BUY or RFQ button to purchase SNAPAIV from an authorized OPTO 22 distributor.
How do I troubleshoot issues or seek technical support for part SNAPAIV?
You can download the SNAPAIV datasheet or visit the OPTO 22 website for support.
Who is the manufacturer of SNAPAIV?
OPTO 22
