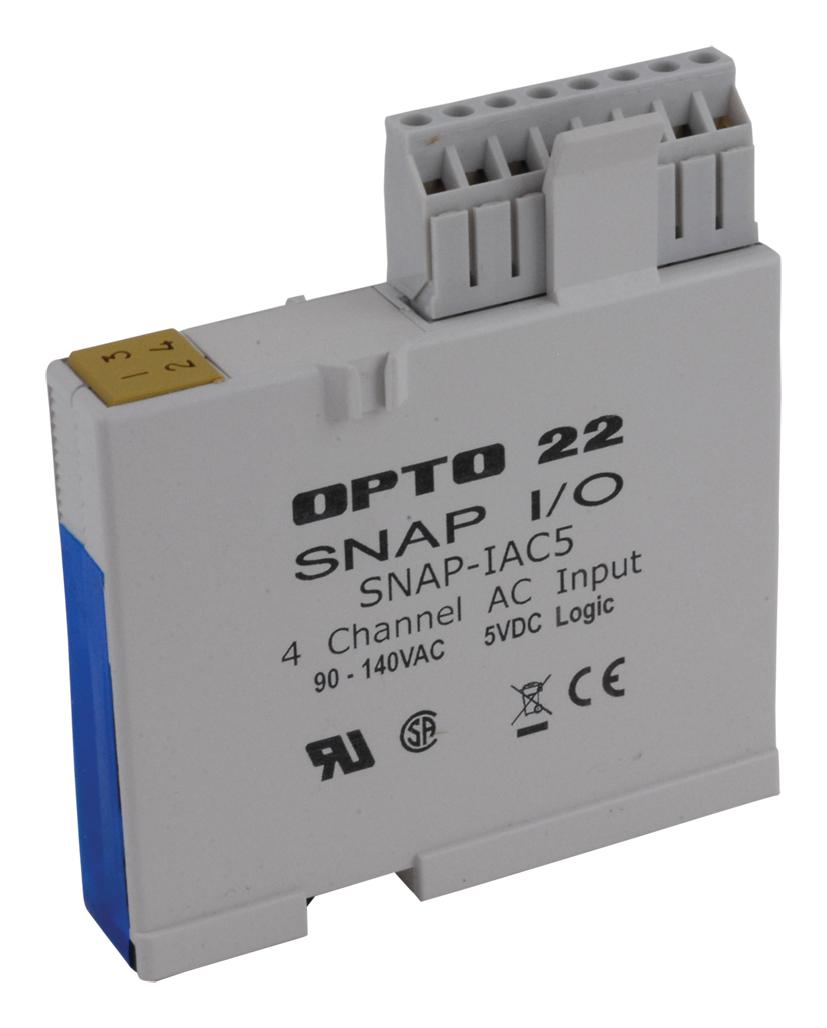

OPTO 22 SNAPIAC5 Digital Input Module
The SNAP-IAC5 is a digital input module that provides four channels capable of detecting 90 to 140 VAC or VDC signals. Each channel monitors the ON/OFF status of sources such as proximity switches, push buttons, or auxiliary contacts. The module features removable top-mounted connectors for easy wiring access and channel-specific LEDs for troubleshooting. It is part of the SNAP PAC system, designed to mount on a rack alongside controllers or brains. Compatible with analog, digital, and serial I/O modules on the same rack, suitable for PC-based systems and RSLogix PLCs like ControlLogix.
OPTO 22 SNAPIAC5 Digital Input Module Specifications:
- Channels: 4
- Input Voltage Range: 90-140 VAC / VDC
- Turn-on Voltage: 90 VAC / VDC
- Turn-off Voltage: 35 VAC / VDC
- Channel-to-channel isolation: 300 VAC (1,500 V transient)
- Input Resistance: 169 K ohms (nominal)
- Logic Output Voltage: <0.5 V max. (on), 2.7 V min. (off) @ 2 mA sinking
- Logic Supply Voltage: 5 VDC + 0.25 VDC
- Logic Supply Current: 50 mA maximum
- Turn-on Time: 30 ms
- Turn-off Time: 30 ms
- Optical Isolation: 4,000 volts (transient)
- Operating Temperature: -20°C to 70°C
- Storage Temperature: -40°C to 85°C
- Agency approvals: UL, CE, RoHS, DFARS
- Warranty: Lifetime
Buy the Buy Opto 22 SNAP-IAC5 Part Number SNAPIAC5 Online
Purchase the Opto 22 SNAP-IAC5 digital input module online and enjoy fast delivery. Designed for four high-voltage monitoring channels from 90 to 140 VAC/VDC, it offers removable connectors, LEDs for troubleshooting, and high transient isolation. Compatible with a variety of control systems, including PC-based controls and RSLogix PLCs like ControlLogix. Its robust specifications include 300 VAC channel-to-channel isolation, 50 mA logic supply, and lifetime warranty for lasting reliability in industrial environments—ideal for automation projects.
Order your Opto 22 SNAP-IAC5 digital input module today and enhance your control system with reliable signal detection and easy wiring access.
