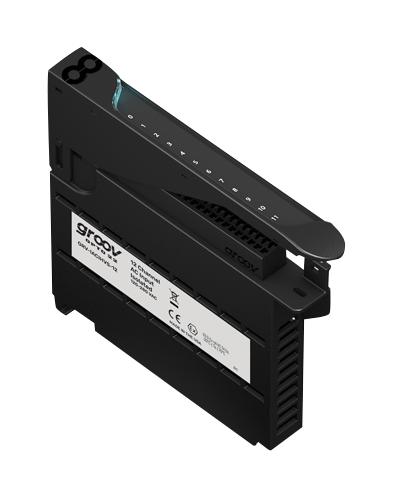

OPTO 22 GRVIACIHVS12 AC Input Module
The OPTO 22 GRV-IACIHVS-12 AC input module is a key component of the groov EPIC system, translating electrical signals from field devices (sensors and actuators) into digital language for computer monitoring and control. This 12-channel module operates on a 180-280 VAC signal and features channel-to-channel isolation, making it suitable for applications requiring independent signal processing. Its top-mounted connector with spring-clamp terminals simplifies wiring, while the swinging cover protects wiring and provides access to module information via a touch-sensitive pad. The module is hot-swappable, self-identifying, and guaranteed for life, ensuring reliable performance in industrial environments.
OPTO 22 GRVIACIHVS12 AC Input Module Specifications:
- Nominal Input Voltage Range (RMS): 180–280 VAC
- Turn-on Voltage: 180 VAC
- Turn-off Voltage: 100 VAC
- Input Impedance (± 5%): 271 kOhms
- Operating Frequency: 40 Hz to 400 Hz
- Isolation (field-to-logic): 300 VAC, 1500 V Transient
- Isolation (channel-to-channel): 300 VAC working
- Number of Channels: 12
- Chassis Power Consumption: 1.0 W
- Wire Size: 28–14 AWG
- Torque, connector screw: 2.5 in-lb (0.28 N-m)
- Torque, hold-down screw: 3.5 in-lb (0.4 N-m)
- Temperature (operating): -20 °C to +70 °C
- Temperature (storage): -40 °C to +85 °C
- Relative Humidity (non-condensing): 5–95%
- Agency Approvals: CE, ATEX(Category 3, Zone 2), RoHS; DFARS; CB Scheme
- Warranty: Lifetime
Buy the GRV-IACIHVS-12 OPTO 22 AC Input Module | myMectronic
Purchase the OPTO 22 GRV-IACIHVS-12 AC Input Module securely and reliably for your industrial automation needs.
Buy Now
Frequently Asked Questions
Where can I buy OPTO 22 GRVIACIHVS12?
You can click on the BUY or RFQ button to purchase GRVIACIHVS12 from an authorized OPTO 22 distributor.
How do I troubleshoot issues or seek technical support for part GRVIACIHVS12?
You can download the GRVIACIHVS12 datasheet or visit the OPTO 22 website for support.
Who is the manufacturer of GRVIACIHVS12?
OPTO 22
