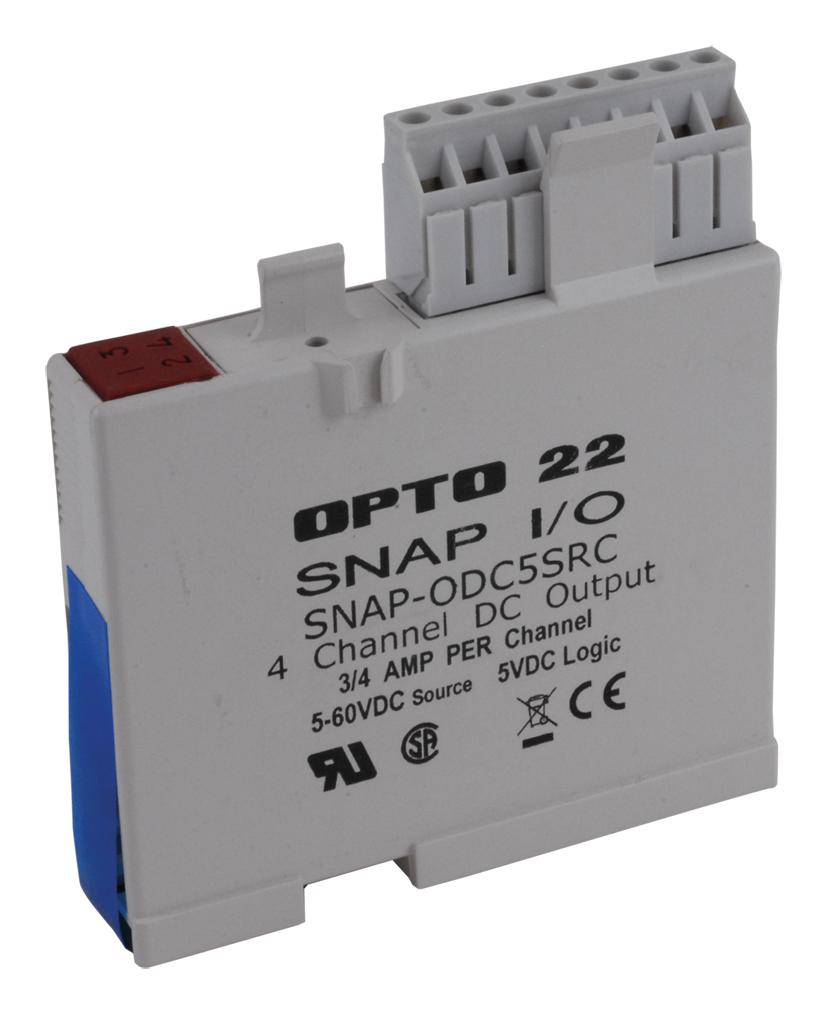

OPTO 22 SNAPODC5SRC Digital Output Module
The SNAP-ODC5SRC is a digital output module offering four channels of 5 to 60 V DC sink digital outputs. Each channel can switch a separate DC load and features a removable top-mounted connector for easy wiring access, along with channel-specific LEDs for troubleshooting. Designed as part of the SNAP PAC system, it mounts on a SNAP PAC rack in conjunction with a SNAP PAC controller or rack-mounted controller. This module is compatible with analog, digital, and serial I/O modules within the same rack and can also serve in PC-based control applications or as intelligent remote I/O for Allen-Bradley MicroLogix, ControlLogix, or CompactLogix PLC systems.
OPTO 22 SNAPODC5SRC Digital Output Module Specifications:
- Channels: 4
- Load sinking: Yes
- Line Voltage Range: 5-60 VDC
- Line Voltage Nominal: 5-48 VDC
- Current Rating: 3 amps per module
- Surge Current: 5 amps peak for 1 second
- Output Voltage Drop: 1.6 volts max. @ 0.75 amps
- Off-state Leakage: 1 mA @ 60 VDC
- Peak Blocking Voltage: 60 VDC
- Fuse: User must provide own fusing; 250 VAC, 4A, 5x20 mm fast-acting fuse
- Pickup Voltage: 4V @ 5.5mA
- Dropout Voltage: 1 VDC
- Control Resistance: 220 ohms
- Logic Supply Voltage: 5 VDC + 0.25 VDC
- Logic Supply Current: 50 mA maximum
- Number of Channels Per Module: 4
- Turn-on Time: 100 usec
- Turn-off Time: 750 usec
- Isolation (Field Side to Logic Side): 4,000 volts (transient)
- Operating Temperature: -20 to 70 °C
- Storage Temperature: -40 to 85 °C
- Wire Size Range: 22 to 14 AWG
- Agency Approvals: CE, FM, RoHS, DFARS
- Warranty: Lifetime
Buy the Buy Opto 22 SNAP-ODC5SRC Part Number SNAPODC5SRC Online
Purchase the Opto 22 SNAP-ODC5SRC digital output module online now to enjoy fast delivery and expert support. This four-channel sink module provides dependable 5 to 60 V DC switching with removable connectors for easy wiring. It features channel-specific LEDs for quick troubleshooting and is compatible with the SNAP PAC system and other control platforms. Ideal for industrial automation, it supports PC-based control and remote I/O applications, ensuring reliable operation across temperatures from -20°C to 70°C. Secure yours today for seamless automation integration.
Order your Opto 22 SNAP-ODC5SRC four-channel sinking DC output module today and enhance your automation system with reliable, easy-to-wire digital outputs.
